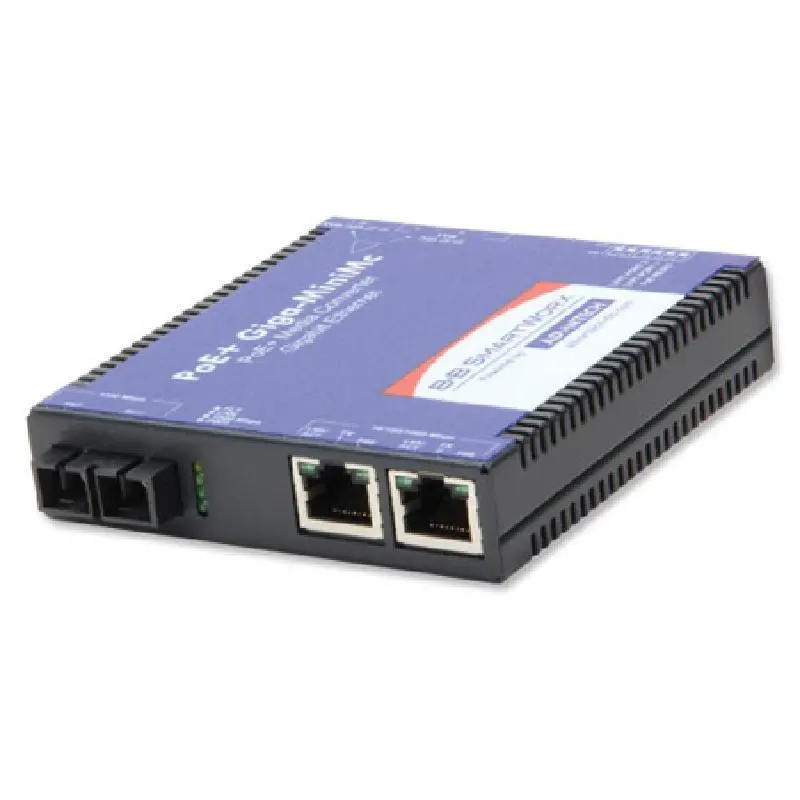

Advantech IMC-390-SM Mini PoE+ Media Converter, 1000Mbps, Single mode 1310nm, 15km, SC (also known as MiniMc 857-11914TG)

Supports IEEE802.3at PoE+ (25.5W) and IEEE802.3af PoE (15.4W) standards

Serves as a power sourcing equipment (PSE) device

Supports jumbo frame functionality (up to 10240 bytes)

Supports multiple mounting options (desktop, DIN rail or wall-mount)

Features in configurable PoE reset on fiber LOS

Supports Link Fault Pass Through (LFPT)

		IMC-390-SM
Ethernet Communication	Fiber Port Number	1
Ethernet Communication	RJ-45 Port Number	0
PoE Information	PoE Port Number	2
Mechanism	Number of Slot	0
Fiber General	Speed	1000Mbps
Ethernet Communication	Fiber Port Optical Mode	Single-Mode
Ethernet Communication	Fiber Transmission Wavelength	1310 nm
Ethernet Communication	Fiber Transmission Distance	15 km
Ethernet Communication	Fiber Port Connector Type	SC Type
PoE Information	PoE-PSE	Yes
Power	Power Input (DC)	51 ~ 57 VDC
Mechanism	Dimensions (W x H x D)	2.032 x 9.258 x 9.7 cm (0.8 x 3.645 x 3.82 in.)
Mechanism	Weight	0.45 kg (1.0 lb)
Environment	Operating Temperature	0 ~ 50 °C (32 ~ 122°F)
Environment	Storage Temperature	-35 ~ 75°C (-31~ 167°F)
Environment	Operating Humidity	5~95% (non-condensing)
Certification	Safety	UL/cUL
Certification	EMC	CE, FCC Class A, CSA
