| IMC-310I-SFP-A | ||
| Ethernet Communication | Ethernet Standard | IEEE 802.3u, 802.3ab, 802.3bz, 802.3ae, 802.3x |
| Ethernet Communication | RJ-45 Port Interface | 10G/5G/2.5G/1G/100 BASE-T |
| Ethernet Communication | Fiber Port Interface | SFP+ |
| Ethernet Communication | RJ-45 Port Number | 1 |
| Interface | Port Number | 2 |
| Mechanism | Dimensions (W x H x D) | 10.92 x 2.28 x 10.16 cm (4.30 x 0.90 x 4.00 in.) |
| Environment | Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |

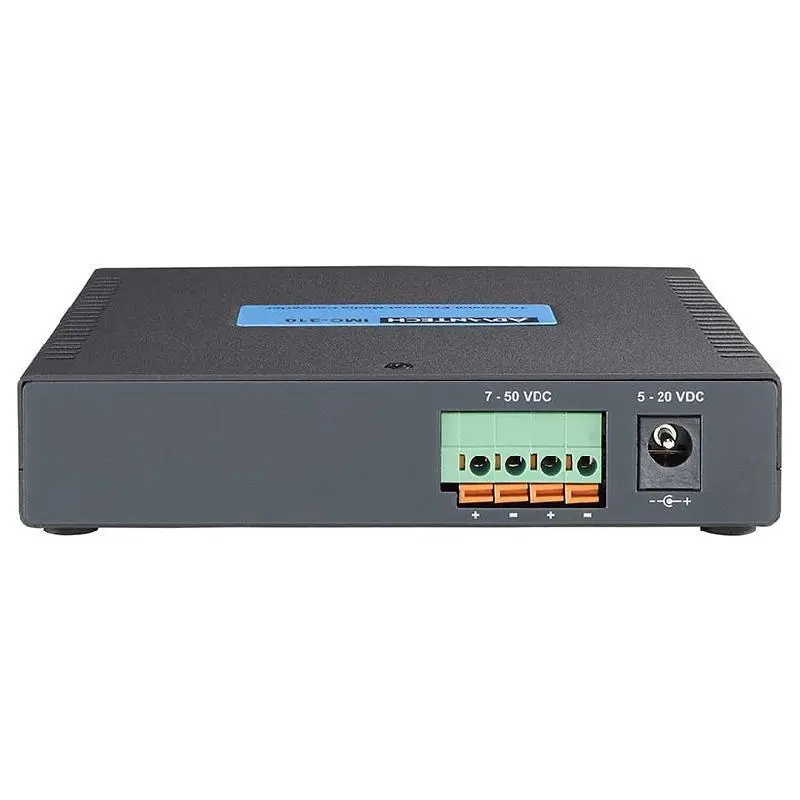

| Power | Power Input (DC) | 7 ~ 50 VDC, 1A |
| Power | Power Consumption | 4W |
| Certification | EMC | CE, FCC Class A |
| Certification | EMS | EN 61000-4-2 , EN 61000-4-3 , EN 61000-4-4 , EN 61000-4-5 , EN 61000-4-6 , EN 61000-4-8 ,EN61000-4-11 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Freefall | IEC 60068-2-32 |
| Warranty | Warranty Period | 5 years |

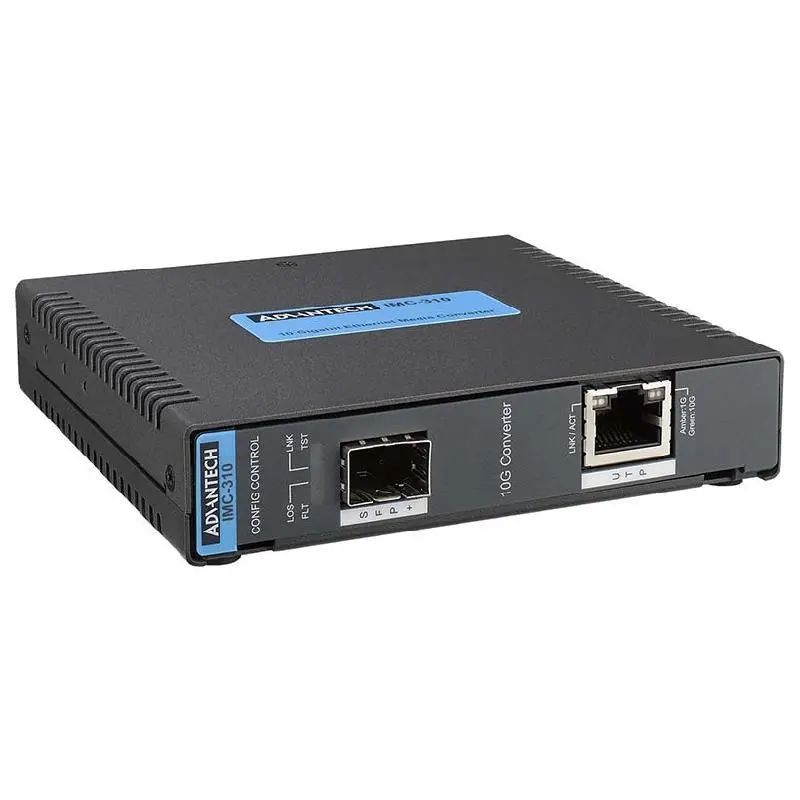

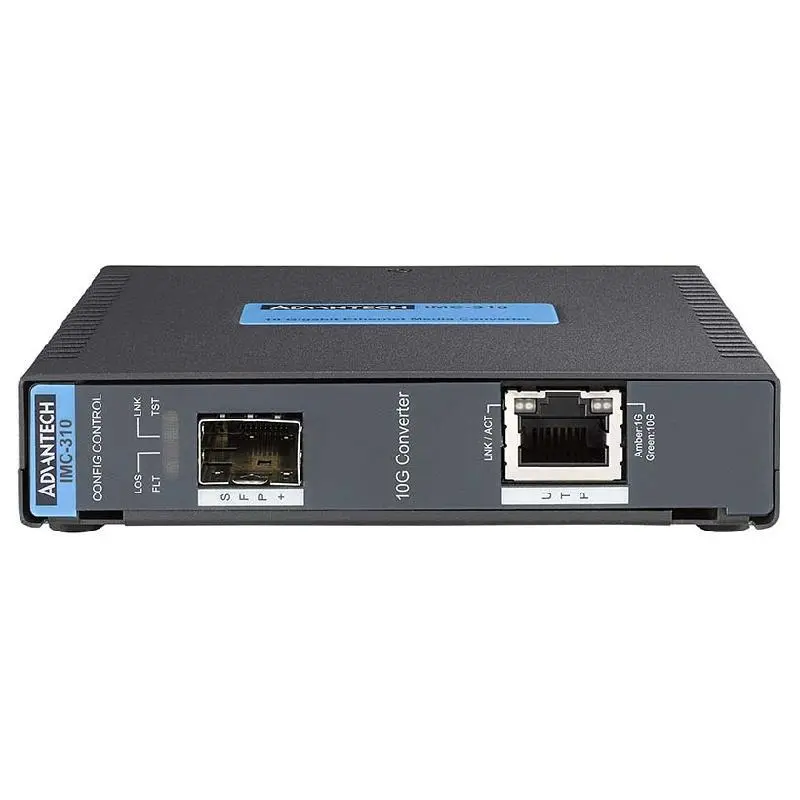

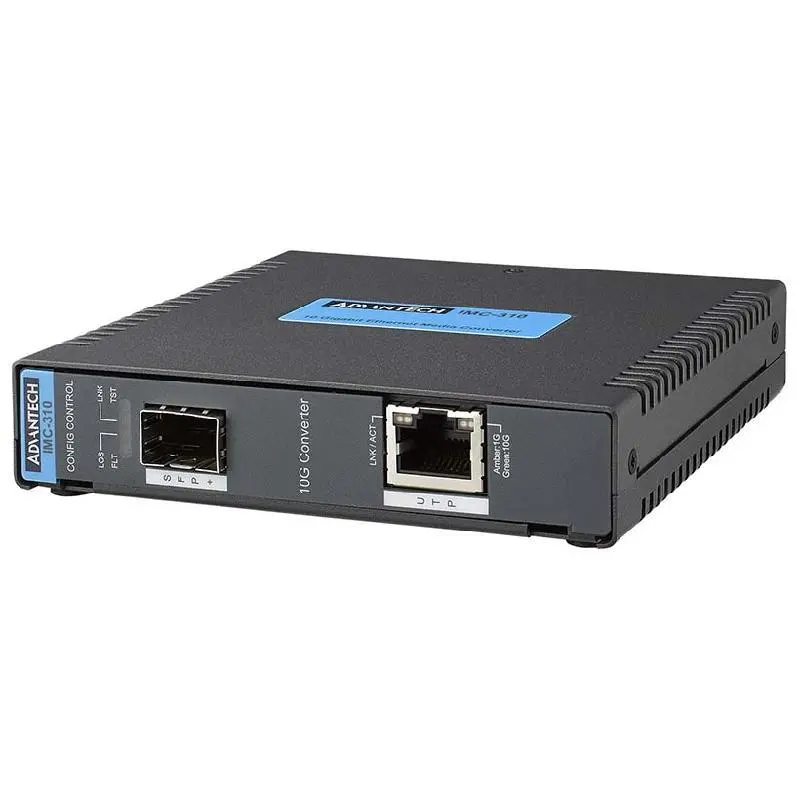

Advantech IMC-310I-SFP-A 10G Stand Alone Hardened Ethernet Media Converter
