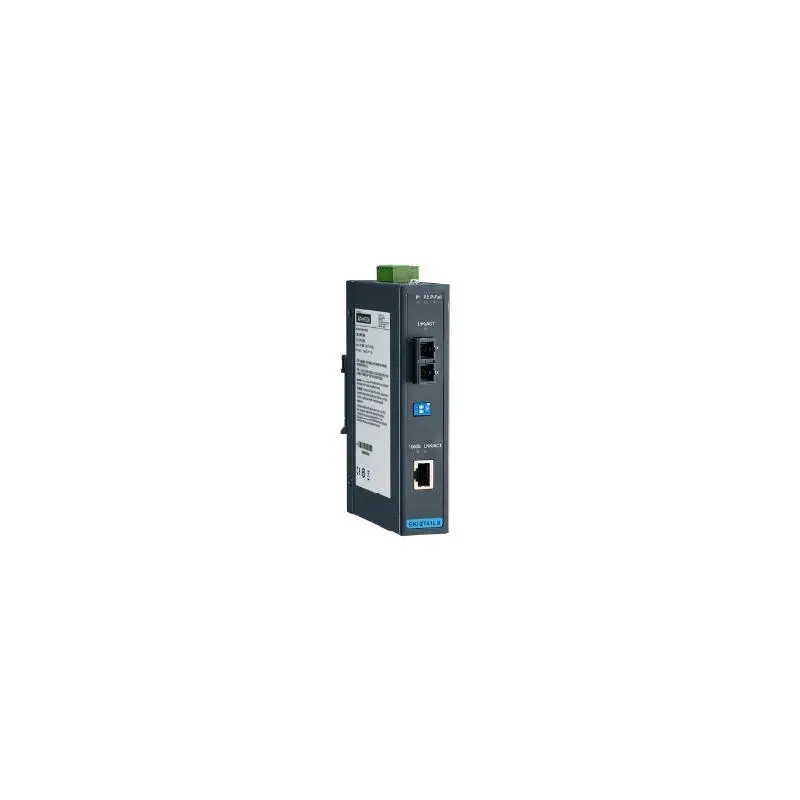

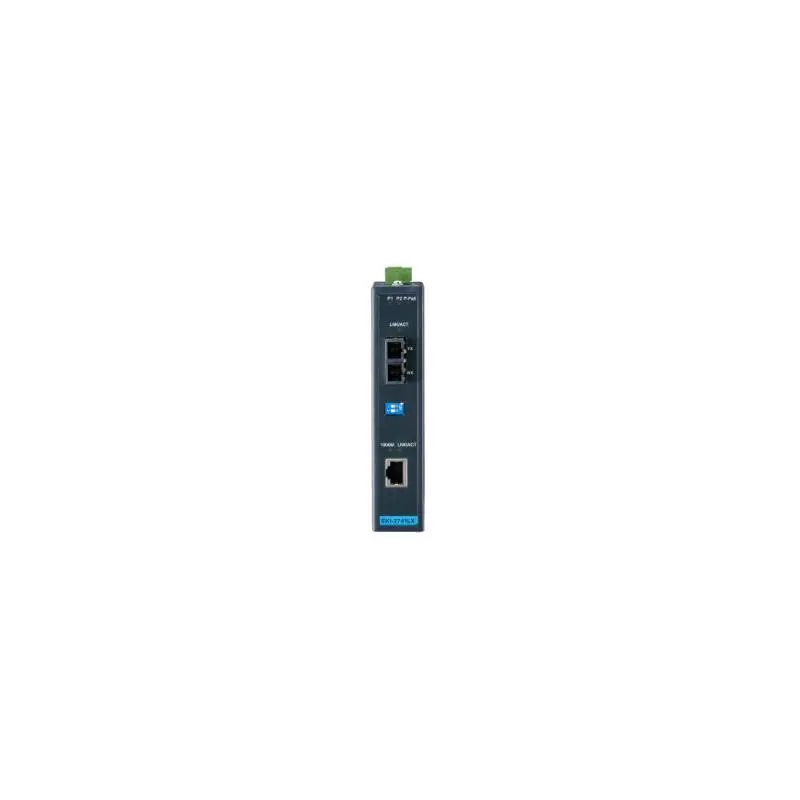

Advantech EKI-2741LX Media Converter, 1000Mbps, Single mode 1310nm, 10km, SC

Provides 1 x 1000 Mbps Ethernet port with RJ45 connector

Provides 1 x 1000 Mbps fiber port with SC or SFP (mini-GBIC) type connector for 1000Base-SX/LX device

Provides DIP switch for full/half duplex setting

Supports MDI/MDI-X auto crossover

Supports Auto-Negotiation

Supports redundant 12 ~ 48 VDC power input

Provides flexible mounting: DIN-rail and Wall mount

Provides Link Fault Pass-through (LFP)

Jumbo Frame: 9K bytes

		EKI-2741LX-BE
Ethernet Communication	RJ-45 Transmission Distance	Up to 100 m
Ethernet Communication	RJ-45 Transmission Speed	1000 Mbps
Power	Power Input (DC)	12 ~ 48 VDC, redundant dual inputs
Ethernet Communication	RJ-45 Port Connector Type	1 x RJ-45 and 1 x SC type fiber connector
Fiber General	Optical Wavelength	1550T / 1310R
Fiber General	Optical Mode	Single-strand
Fiber General	Max. Distance Range	2km ~ 20km
