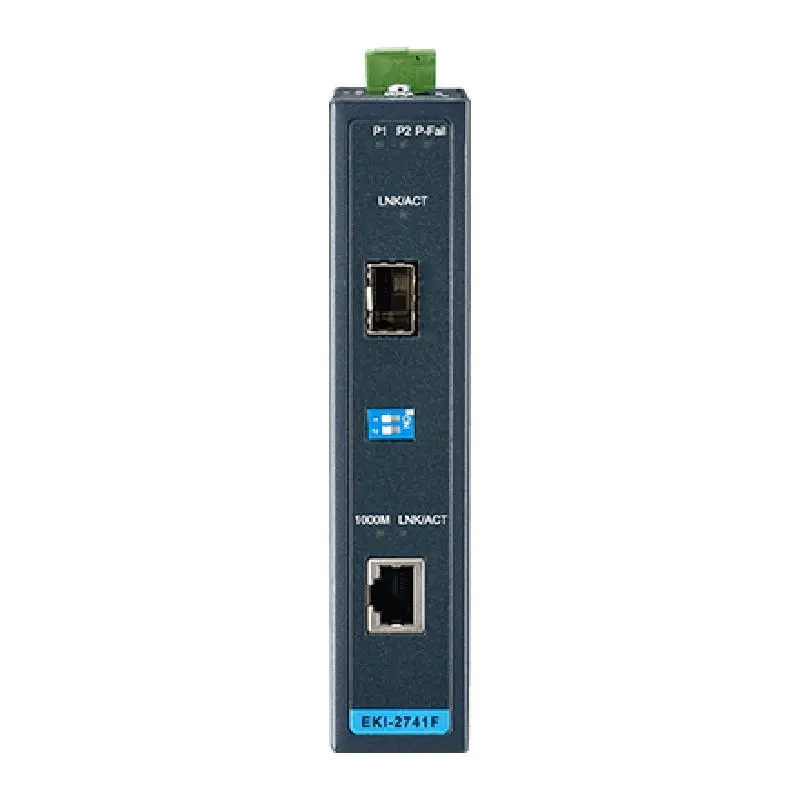

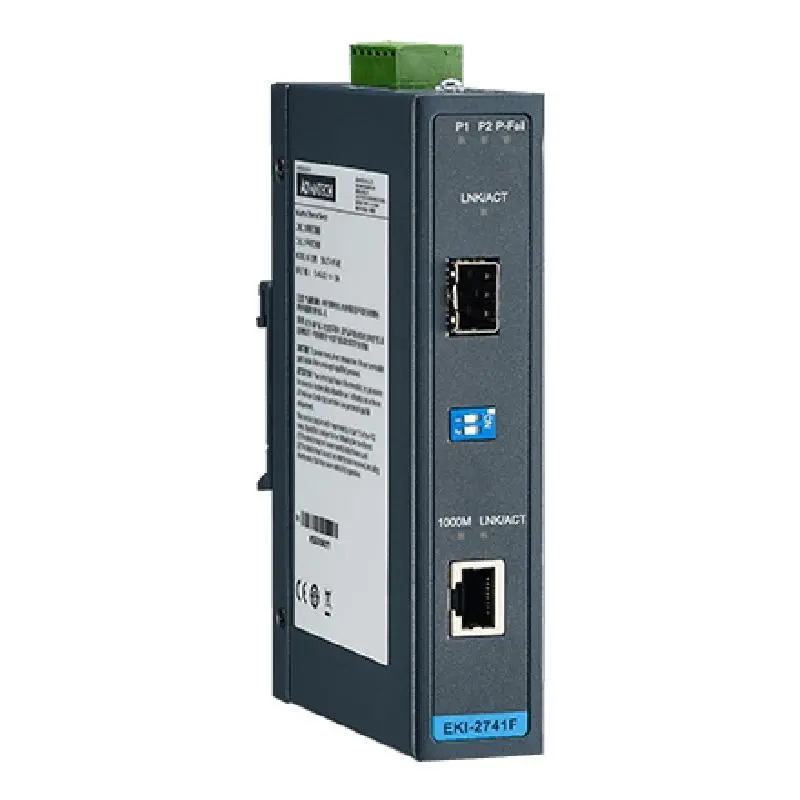

Advantech EKI-2741F Media Converter, 1000Mbps, SFP

Provides 1 x 1000 Mbps Ethernet port with RJ45 connector

Provides 1 x 1000 Mbps fiber port with SC or SFP (mini-GBIC) type connector for 1000Base-SX/LX device

Provides DIP switch for full/half duplex setting

Supports MDI/MDI-X auto crossover

Supports Auto-Negotiation

Supports redundant 12 ~ 48 VDC power input

Provides flexible mounting: DIN-rail and Wall mount

Provides Link Fault Pass-through (LFP)

Jumbo Frame: 9K bytes

		EKI-2741F-BE
Ethernet Communication	RJ-45 Transmission Distance	Up to 100 m
Ethernet Communication	RJ-45 Transmission Speed	1000 Mbps
Power	Power Input (DC)	12 ~ 48 VDC, redundant dual inputs
Environment	Operating Temperature	-10 ~ 60°C (14 ~ 140°F)
Ethernet Communication	RJ-45 Port Connector Type	1 x RJ-45 and 1 x SFP type fiber connector
Interface	Port Number	2
