| EKI-1211-A | ||
| Certification | EMC | CE, FCC |
| Certification | EMI | EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4) |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Vibration | IEC 60068-2-6 |
| Ethernet Communication | RJ-45 Port Connector Type | 1 x RJ-45 |
| Serial Communication | Serial Port Connector Type | DB9 male |
| Environment | Temperature (Min. Operating) | -10°C (14°F) |
| Environment | Temperature (Max. Operating) | 60°C (140°F) |
| Environment | Operating Temperature | -10 ~ 60°C (14 ~ 140°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Ethernet Communication | RJ-45 Port Number | 1 |
| Mechanism | Dimensions (W x H x D) | 46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.) |
| Mechanism | Enclosure (Metal) | Metal with solid mounting hardware |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Wall) | Yes |
| Power | Power Consumption | 1W |
| Power | Power Input (DC) | 9 ~ 36 VDC |
| Protection | Ethernet Isolation | Built-in 2.25 k VDC magnetic isolation |
| Protection | Serial Isolation | Built-in 8 kV ESD for all signals |
| Serial Communication | RS-232 | Yes |
| Serial Communication | RS-422 | Yes |
| Serial Communication | RS-485 | Yes |
| Serial Communication | Serial Port Number | 1 |
| Serial Communication | Serial Transmission Speed | 300 ~ 230.4 kbps |
| Serial Communication | Baud Rate | 300~230.4 kbps |
| Software | Driver | Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux |
| Software | Operation Mode | Modbus RTU Client/Server, Modbus ASCII Client/Server |
| Warranty | Warranty Period | 5 years |

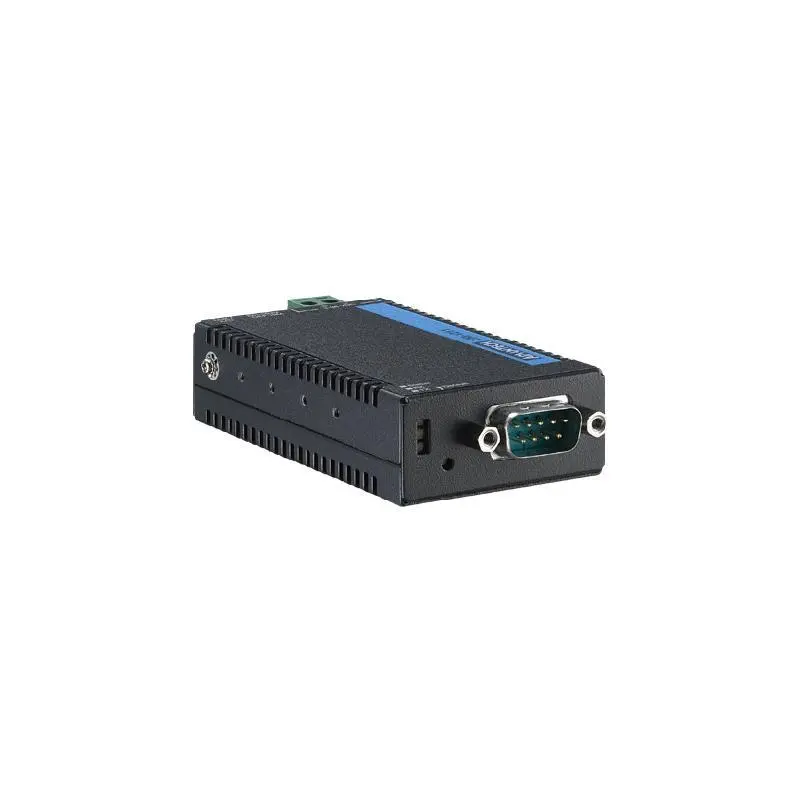

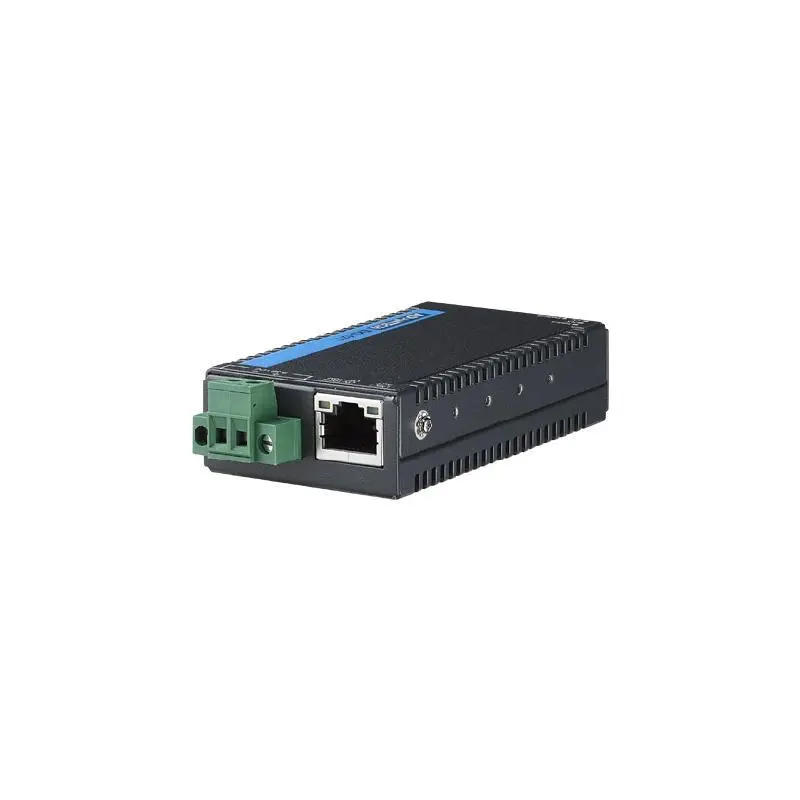

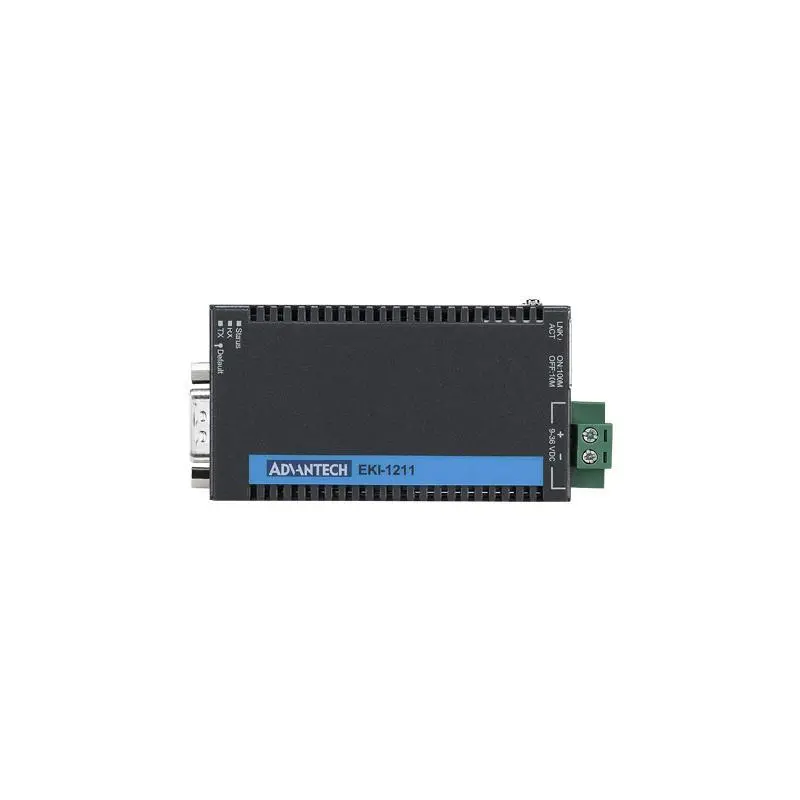

Advantech EKI-1211 1-Port Modbus Gateway
