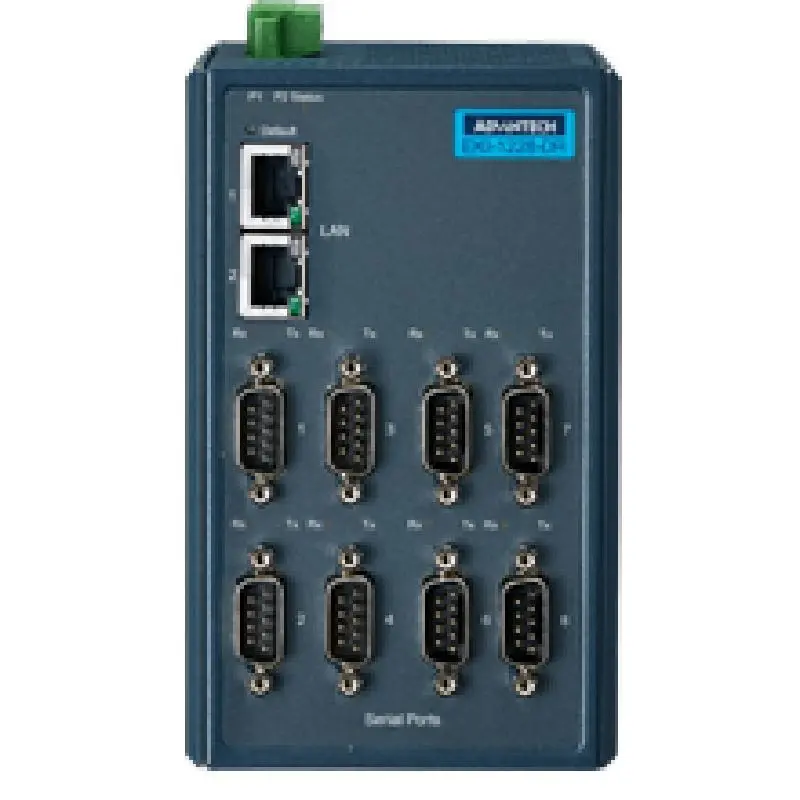

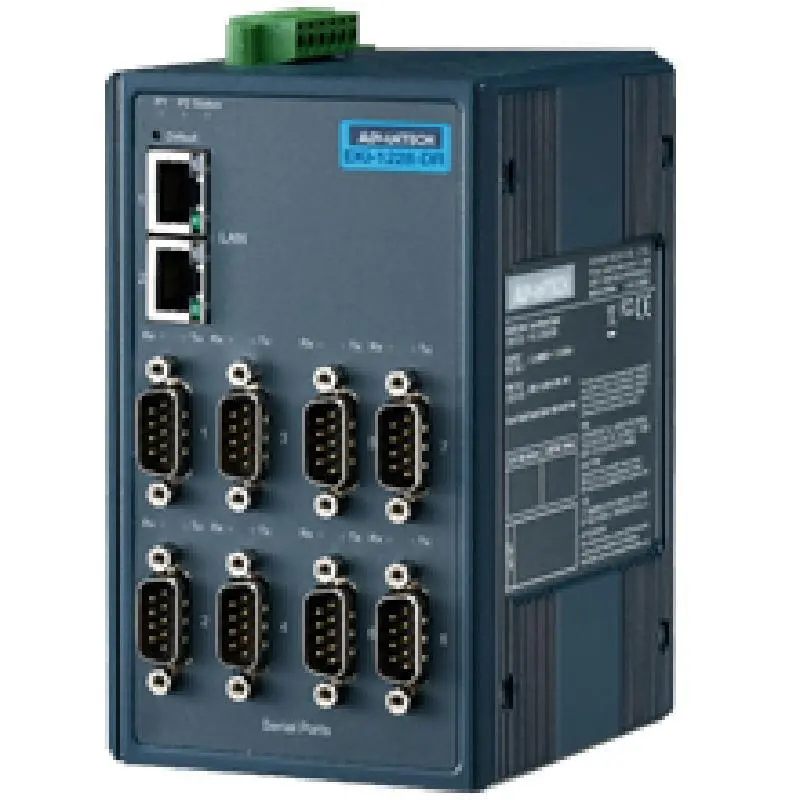

Advantech EKI-1228-DR Industrial 8-port Modbus Gateway

Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.

Automatic RS-485 data flow control

Built-in 15 KV ESD protection for all serial signals

Mounts on DIN-rail and Wall mount

Software selectable RS-232/422/485 communication

Support up to 16 connections on each serial port under Modbus Client mode and 128 sessions under Modbus Server mode.

Supports up to 921.6 kbps, and any baud rate setting

Integration of Modbus TCP and Modbus RTU/ASCII networks

Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

		EKI-1228-DR-AE
Certification	EMC	CE, FCC
Certification	EMI	EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
Certification	EMS	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
Certification	Freefall	IEC 60068-2-32
Certification	Safety	UL 60950-1
Certification	Shock	IEC 60068-2-27
Certification	Vibration	IEC 60068-2-6
Environment	Operating Temperature	-10 ~ 60°C (14 ~ 140°F)
Environment	Relative Humidity	10~95%
Environment	Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication	Ethernet Standard	IEEE 802.3 , 802.3u
Ethernet Communication	RJ-45 Port Connector Type	RJ-45
Ethernet Communication	RJ-45 Port Number	2
Ethernet Communication	RJ-45 Transmission Speed	10/100 Mbps
Power	Power Connector Type	6-pin removable screw terminal (power & relay)
Power	Power Consumption	5W
Power	Power Operating Current	1A @ 24 VDC
Mechanism	Dimensions (W x H x D)	86 x 140 x 95 mm
Mechanism	Enclosure (Metal)	Metal
Mechanism	Mounting	DIN-rail, Wall mount
Mechanism	Weight	9 kg
Software	Configuration	Windows utility, Telnet console, Web Browser
Software	Driver	Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Software	Protocols	Modbus RTU, Modbus TCP, Modbus ASCII
