| EKI-1242IEIMS-A | ||
| Certification | EMC | CE, FCC Class A |
| Certification | EMI | EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4) |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Vibration | IEC 60068-2-6 |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Ethernet Standard | IEEE 802.3 , 802.3ab , 802.3u |
| Protection | Port to Port Isolation | Built-in 1.5 KV magnetic isolation |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 4 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Mechanism | Dimensions (W x H x D) | 42 x 140 x 95 mm (1.65 x 5.51 x 3.74 in.) |
| Mechanism | Enclosure (Metal) | Metal with solid mounting hardware |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | IP Rating | IP30 |
| Mechanism | Weight | 0.497 kg |
| Modbus Communication | Modbus RTU/TCP Functions Support | 1,2,3,4,5,6,15,16,23 |
| Modbus Communication | Modbus RTU/TCP Mode | Client |
| Power | Power Consumption | 5.2W (system) |
| Power | Power Operating Current | 0.22 @ 24V ; 0.11 @ 48V |
| Protection | Reverse Polarity | Present |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Serial Communication | Data Bits | 7, 8 |
| Serial Communication | Flow Control | XON/XOFF, RTS/CTS, DTR/DSR |
| Serial Communication | Parity | None, Odd, Even, Space, Mark |
| Serial Communication | Serial Port Connector Type | DB9 male |
| Serial Communication | Serial Port Number | 2 |
| Serial Communication | RS-232 | Yes |
| Serial Communication | RS-422 | Yes |
| Serial Communication | RS-485 | Yes |
| Serial Communication | Serial Signals | RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI, GND |
| Serial Communication | Stop Bits | 1, 2 |
| Serial Communication | Serial Transmission Speed | 50 ~ 921.6 kbps, any baud rate setting |
| Software | EtherNet/IP Class | Adaper |
| Software | EtherNet/IP Max. No. of Connection | 32 explicit messaging, 5 implicit messaging |
| Software | EtherNet/IP Max. Total I/O Data Size | Input: 496 bytes |
| Software | Modbus RTU/TCP Functions Support | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Software | Modbus RTU/TCP Max. No. of Connections | 64 connections |
| Software | Modbus RTU/TCP Mode | Client |
| Warranty | Warranty Period | 5 years |
| Protocol Support | Modbus TCP | Yes |
| Protocol Support | Modbus RTU | Yes |
| Protocol Support | EtherNet/IP | Yes |
| Protocol Support | Ethernet | Yes |
| Protocol Support | Modbus ASCII | Yes |

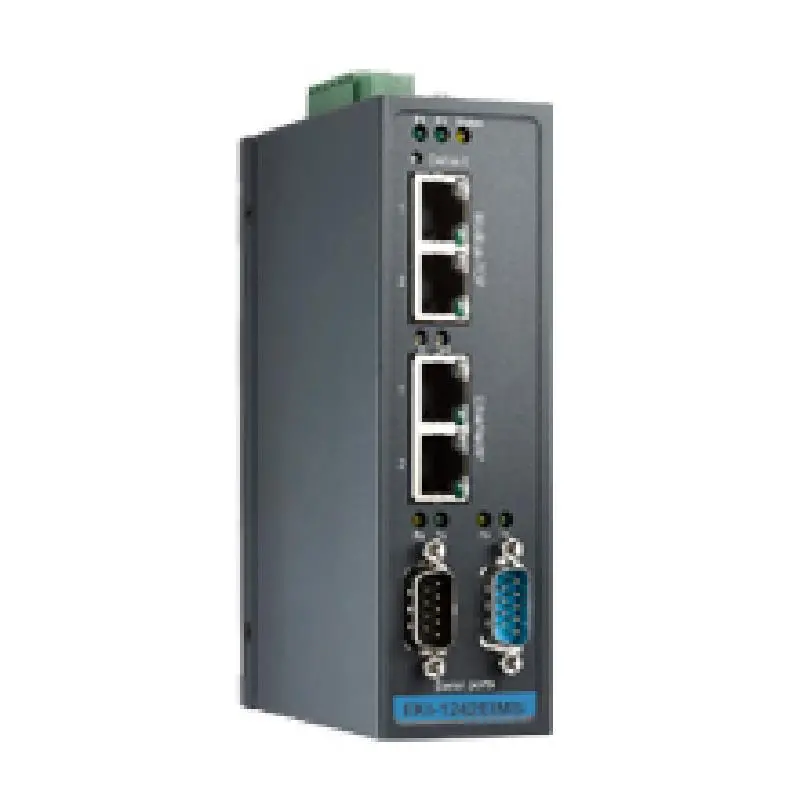

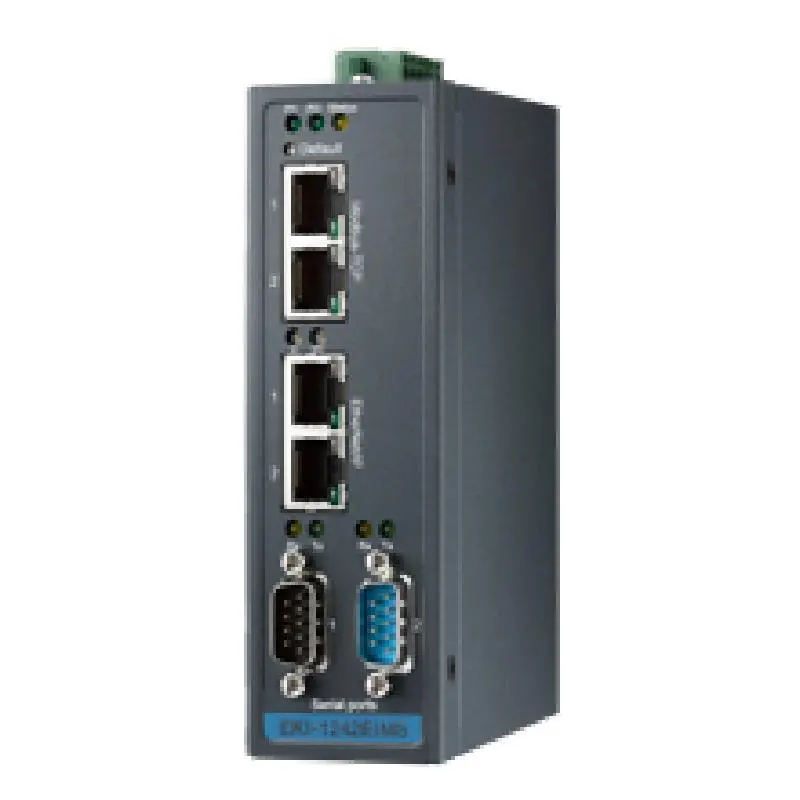

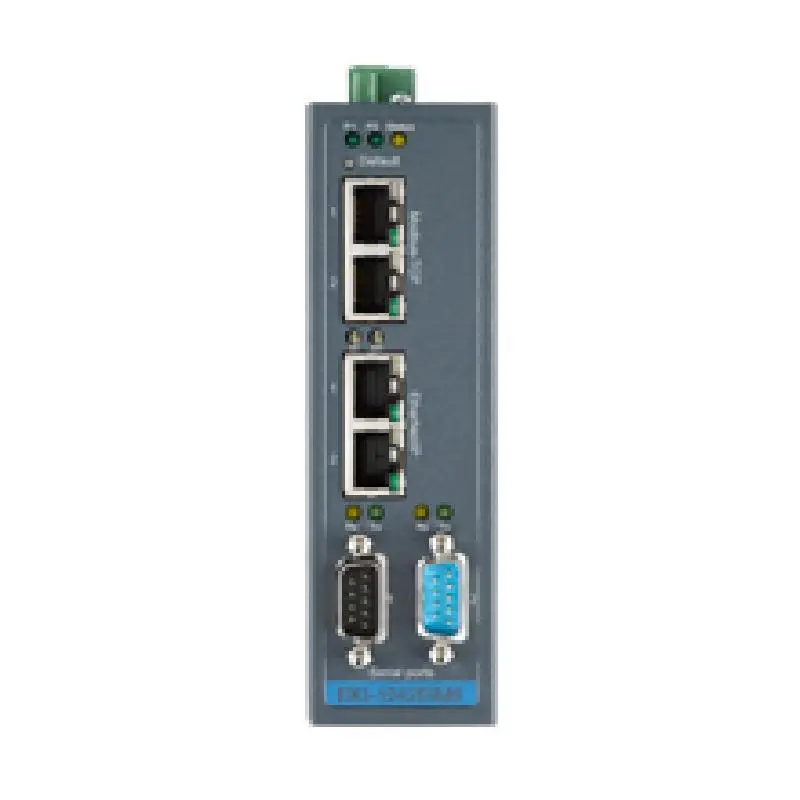

Advantech EKI-1242IEIMS Modbus RTU/TCP to 3-in-1 EtherNet/IP or PROFINET or OPC UA Protocol Gateway, Wide Temperature
