| EKI-6333AC-2G-A | EKI-6333AC-2G-EU-A | ||
| Certification | EMC | EN 55032, EN 55024 | EN 55032, EN 55024 |
| Certification | EMI | FCC Part 15 Subpart B (Class B) | FCC Part 15 Subpart B (Class B) |
| Certification | EMS | EN 61000-6-1,EN 61000-6-3,EN 61000-4-2,EN 61000-4-3,EN 61000-4-4,EN 61000-4-5,EN 61000-4-6,EN 61000-4-8,EN 61000-4-11 | EN 61000-6-1,EN 61000-6-3,EN 61000-4-2,EN 61000-4-3,EN 61000-4-4,EN 61000-4-5,EN 61000-4-6,EN 61000-4-8,EN 61000-4-11 |
| Environment | Relative Humidity | 10~95% RH | 10~95% RH |
| Environment | Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) | -20 ~ 60°C (-4 ~ 140°F) |
| Environment | Storage Temperature | -30 ~ 80°C (-22 ~ 176°F) | -30 ~ 80°C (-22 ~ 176°F) |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 2 | 2 |
| Ethernet Communication | RJ-45 Transmission Distance | NA | NA |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Mechanism | Dimensions (W x H x D) | 191.6 x 114.3 x 47.7 mm (7.54 x 4.49 x 1.88 in.) | 191.6 x 114.3 x 47.7 mm (7.54 x 4.49 x 1.88 in.) |
| Mechanism | Enclosure (Plastic) | Yes | Yes |
| Mechanism | IP Rating | IP55 | IP55 |
| Mechanism | LED Indicator | System: PowerWLAN: Link/ActiveLAN: Link/Active | System: PowerWLAN: Link/ActiveLAN: Link/Active |
| Mechanism | Mounting (Pole Mount) | Yes | Yes |
| Mechanism | Mounting (Wall) | Yes | Yes |
| Mechanism | Weight | 0.50 kg (1.1 lbs) | 0.50 kg (1.1 lbs) |
| Power | Power Connector Type | RJ-45 | RJ-45 |
| Power | Power Consumption | 15W | 15W |
| Power | Power Input (AC) | 100 ~ 240 VAC | 100 ~ 240 VAC |
| Power | Power Input (DC) | 24 VDC | 24 VDC |
| Software | Configuration | Web browser | Web browser |
| Software | Protocols | ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DHCPServer, Auto IP, Telnet, DNS, SNMP, HTTP, DMZ,PPPoE, VPN Passthrough, Telnet Server, SSH Server,FTP Server, QoS | ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DHCPServer, Auto IP, Telnet, DNS, SNMP, HTTP, DMZ,PPPoE, VPN Passthrough, Telnet Server, SSH Server,FTP Server, QoS |
| Software | Reboot Trigger | Built-in WDT (watchdog timer) | Built-in WDT (watchdog timer) |
| Warranty | Warranty Period | 2 years | 2 years |
| Wireless Communication | Wi-Fi 2.4 GHz | Yes | Yes |
| Wireless Communication | Wi-Fi 5 GHz | Yes | Yes |
| Wireless Communication | Wi-Fi Antenna Connector Type | Reverse SMA | Reverse SMA |
| Wireless Communication | Wi-Fi Antenna Number | 4 | 4 |
| Wireless Communication | Wi-Fi Free Space Range | Open space 100 m | Open space 100 m |
| Wireless Communication | Wi-Fi Network Mode | Infrastructure | Infrastructure |
| Wireless Communication | Wi-Fi Operation Mode | Access Point/ Repeater/ Client mode | Access Point/ Repeater/ Client mode |
| Wireless Communication | Wi-Fi RF Capability | 2T2R | 2T2R |
| Wireless Communication | Wi-Fi Transmission Speed | Up to 1167 Mbps | Up to 1167 Mbps |
| Wireless Communication | Wireless Security | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise |
| Wireless Communication | Wi-Fi Standard | IEEE 802.11 a/b/g/n/ac | IEEE 802.11 a/b/g/n/ac |

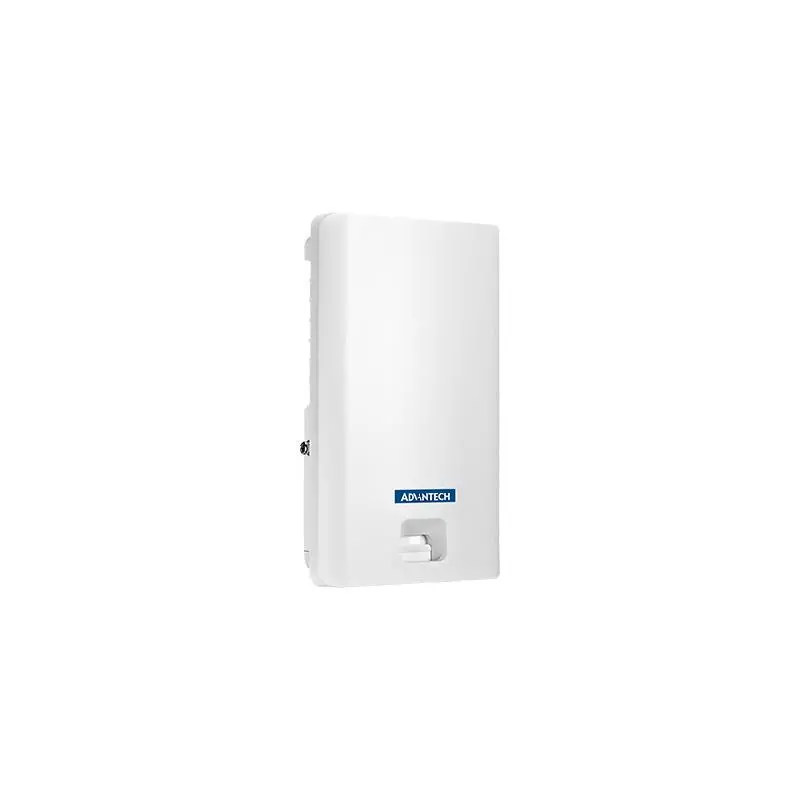

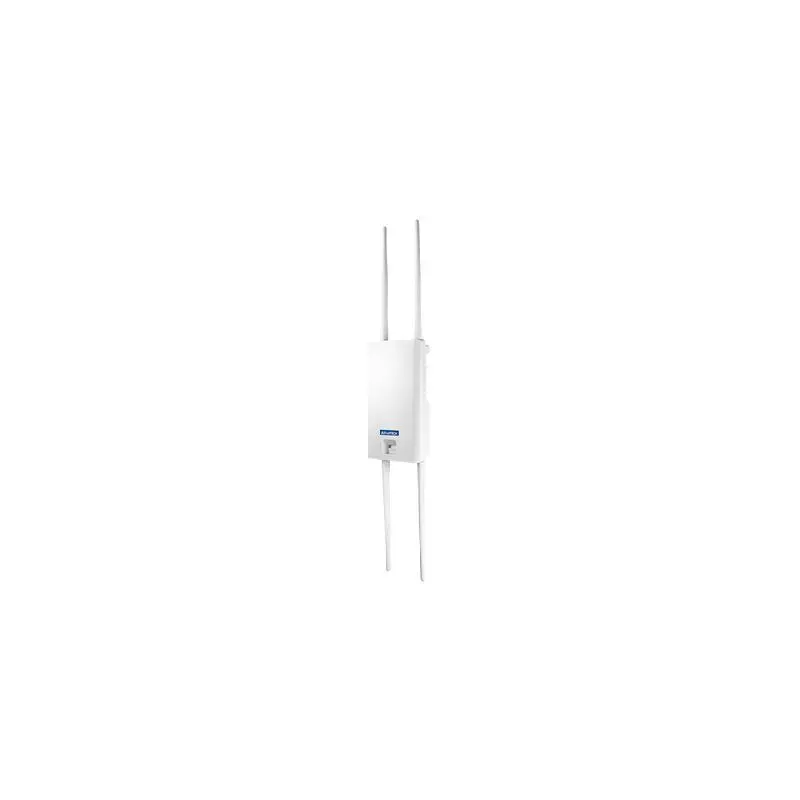

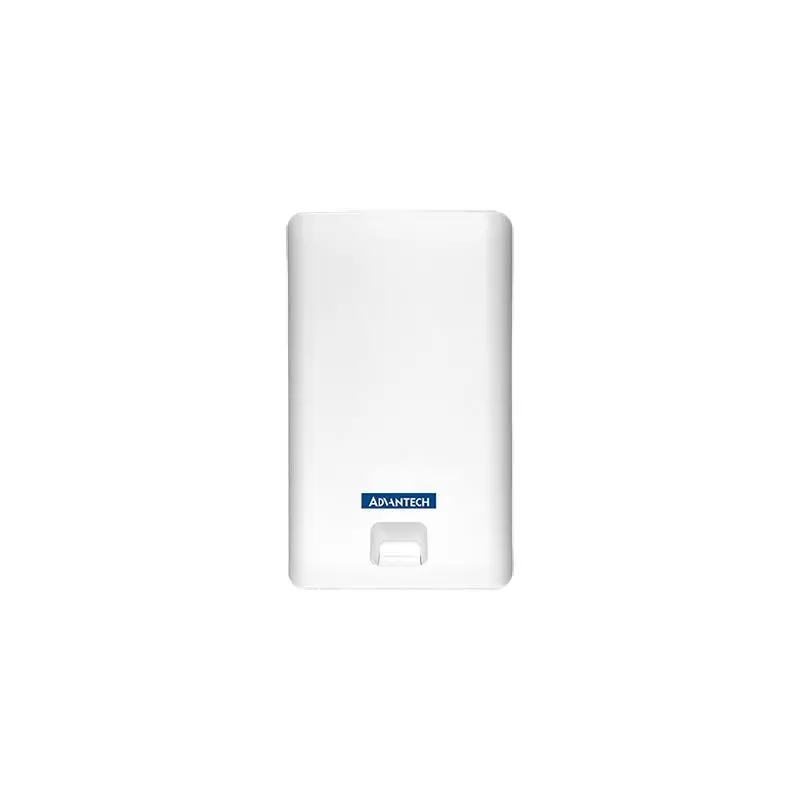

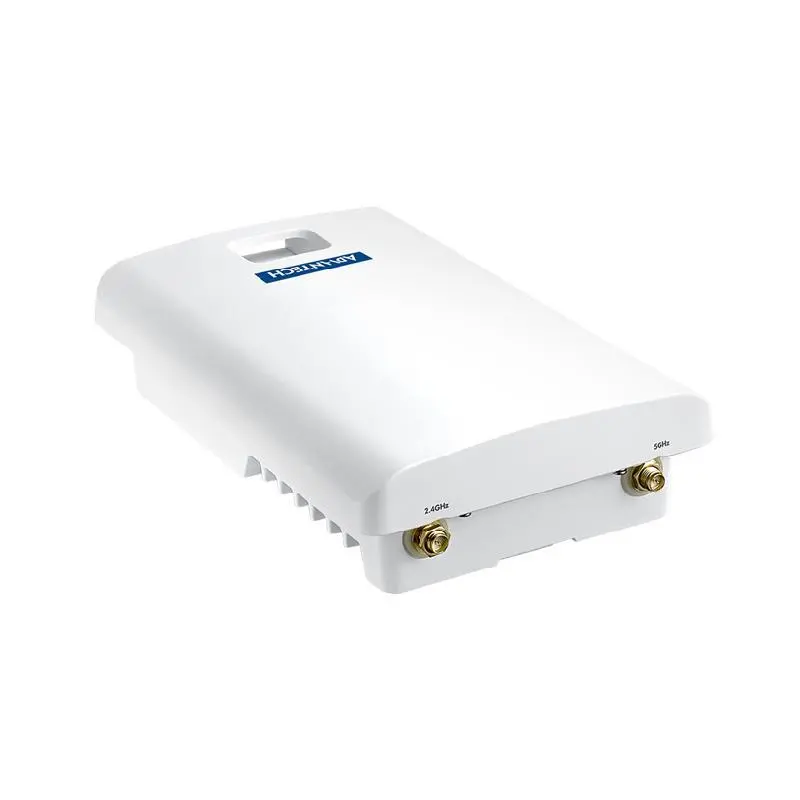

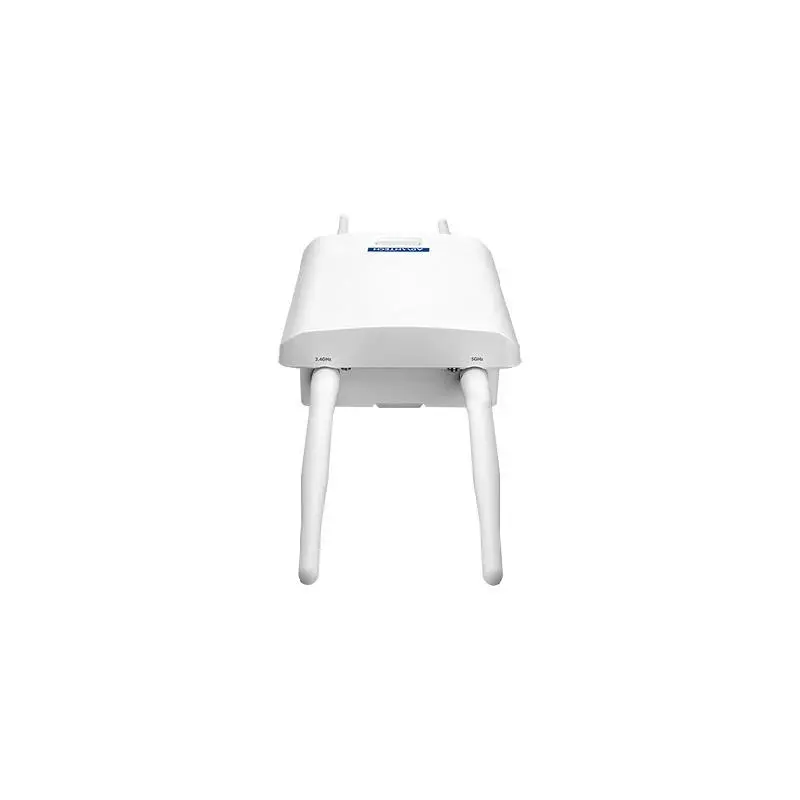

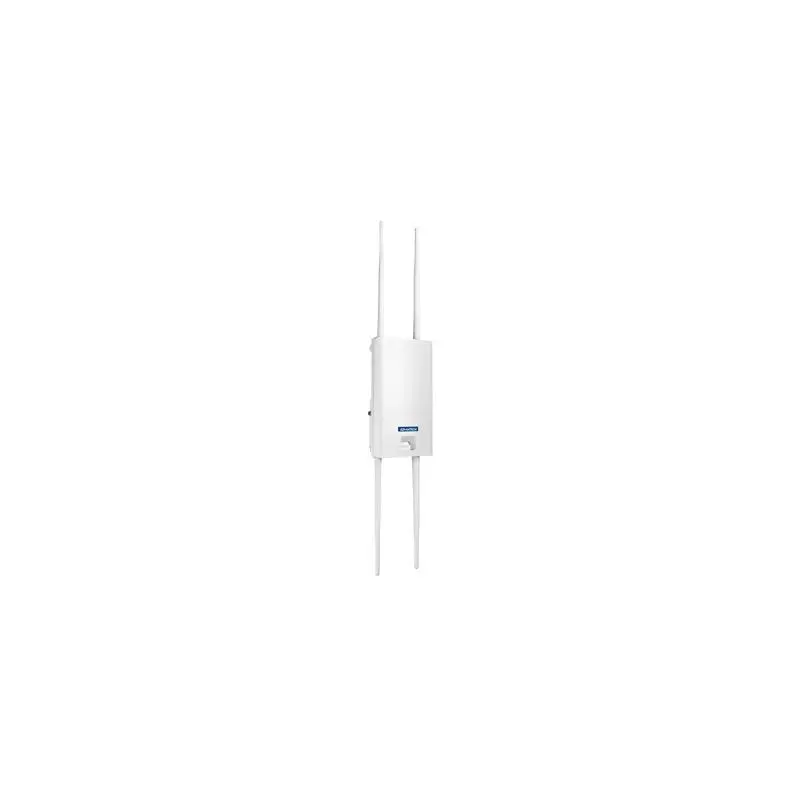

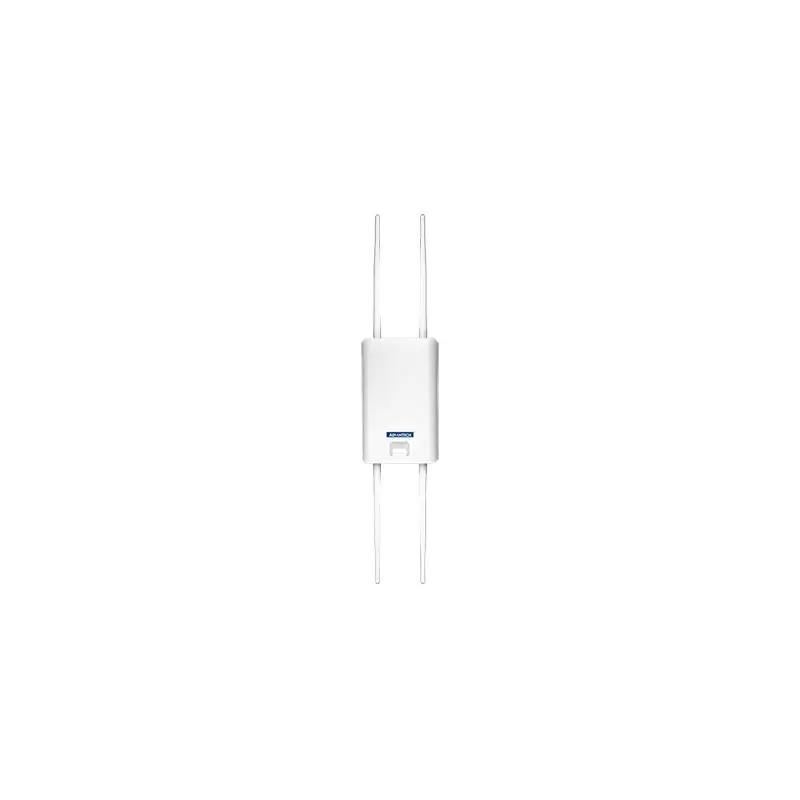

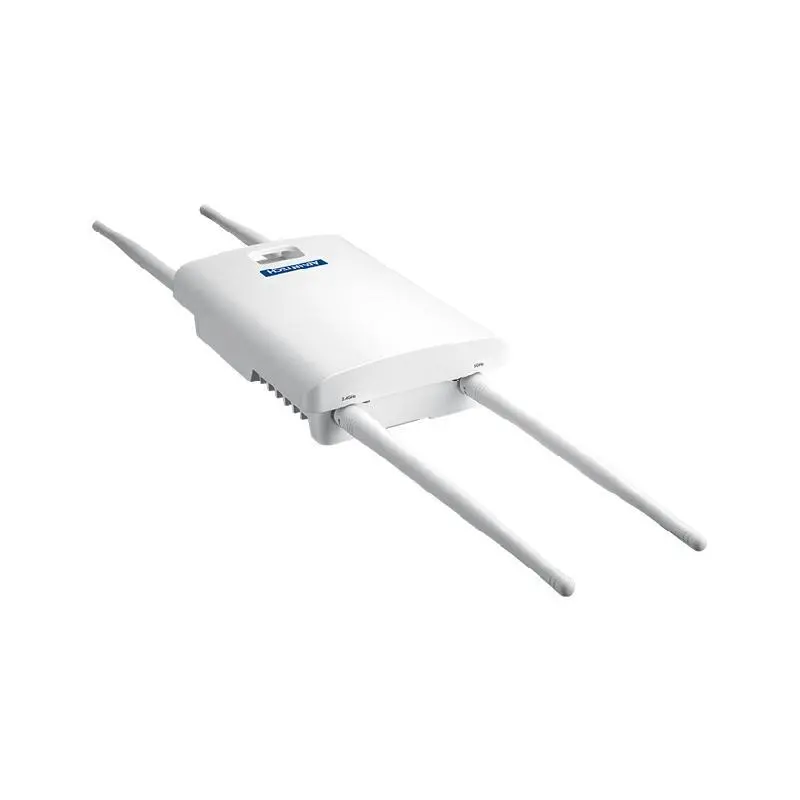

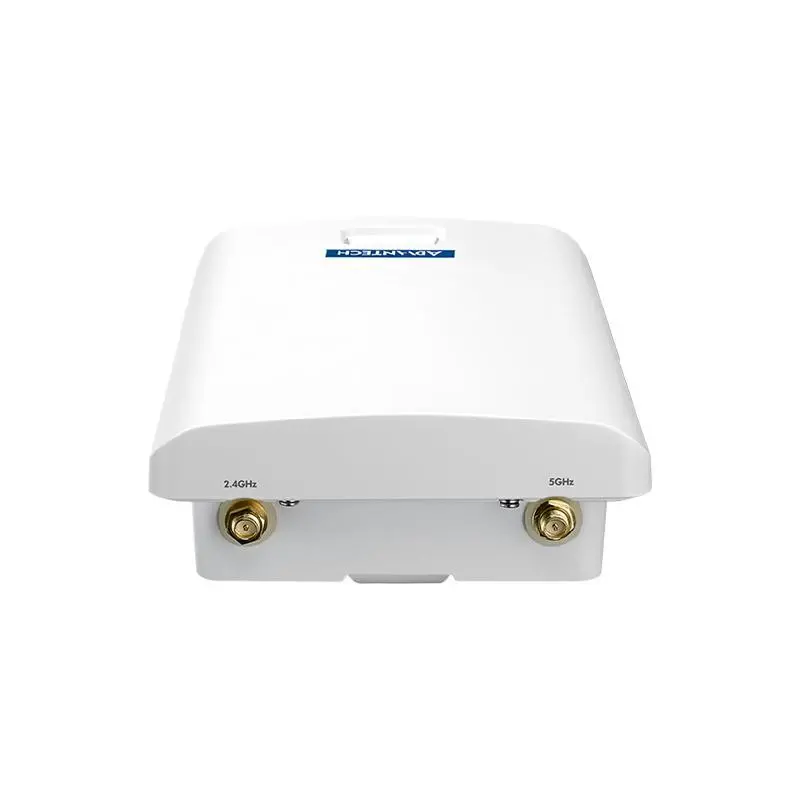

Advantech EKI-6333AC-2G IEEE 802.11 a/b/g/n/ac Concurrent Dual-Band Wi-Fi AP/Client
