| EKI-6333ACXL-M12-A | ||
| Certification | EMC | EN 55032, EN 55024, EN 50121-3-2, EN 50121-4 |
| Certification | EMI | FCC Part 15 Subpart B (Class B) |
| Certification | EMS | EN 61000-6-1,EN 61000-6-3,EN 61000-4-2,EN 61000-4-3,EN 61000-4-4,EN 61000-4-5,EN 61000-4-6,EN 61000-4-8,EN 61000-4-11 |
| Environment | Relative Humidity | 10~95% RH |
| Environment | Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) |
| Environment | Storage Temperature | -40 ~ 80°C (-40 ~ 176°F) |
| Ethernet Communication | RJ-45 Port Connector Type | M12 |
| Ethernet Communication | RJ-45 Port Number | 2 |
| Ethernet Communication | RJ-45 Transmission Distance | NA |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Mechanism | Dimensions (W x H x D) | 186 x 50.1 x 104.8 mm (7.32 x 1.97 x 4.13 in.) |
| Mechanism | Enclosure (Metal) | Metal shell with solid mounting kits |
| Mechanism | LED Indicator | System: Power1, Power 2, StatusWLAN: QualityLAN: Link/Active |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 1.5 kg |
| Power | Power Connector Type | M12 (5 pin A-coded) |
| Power | Power Consumption | Max. 14W |
| Power | Power Input (DC) | 24 ~ 48 VDC |
| Power | Redundant Dual Inputs | Yes |
| Software | Configuration | Web browser |
| Software | Protocols | ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DNS, HTTP, SNTP |
| Software | Reboot Trigger | N/A |
| Warranty | Warranty Period | 5 years |
| Wireless Communication | Wi-Fi 2.4 GHz | Yes |
| Wireless Communication | Wi-Fi 5 GHz | Yes |
| Wireless Communication | Wi-Fi Antenna Connector Type | Reverse SMA |
| Wireless Communication | Wi-Fi Antenna Number | 4 |
| Wireless Communication | Wi-Fi Free Space Range | Open space 100 m |
| Wireless Communication | Wi-Fi Network Mode | Infrastructure |
| Wireless Communication | Wi-Fi Operation Mode | Access Point/ Bridge/ Client mode |
| Wireless Communication | Wi-Fi RF Capability | 2T2R |
| Wireless Communication | Wi-Fi Transmission Speed | Up to 867 Mbps |
| Wireless Communication | Wireless Security | Open System, Shared Key, Lagacy 8021X, WPA/WPA2, WPA-PSK (TKIP), WPA2-PSK(AES) |
| Wireless Communication | Wi-Fi Standard | IEEE 802.11 a/b/g/n/ac |

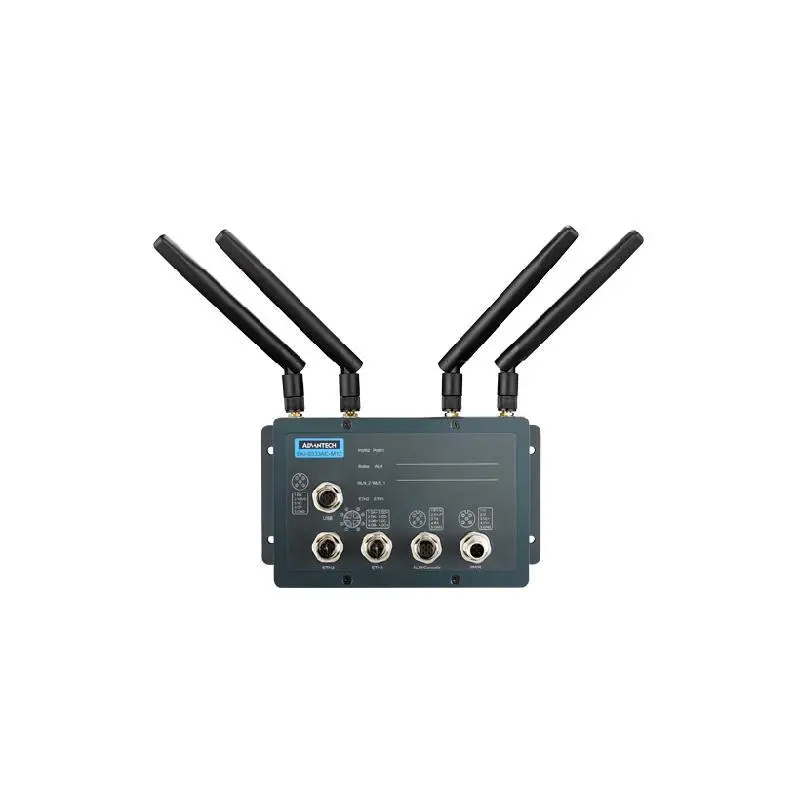

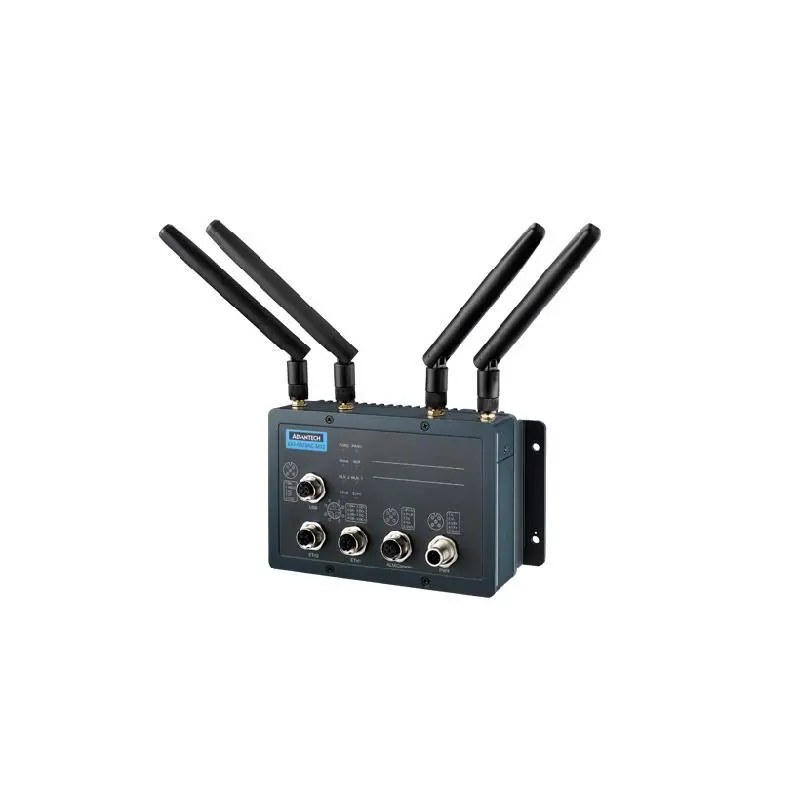

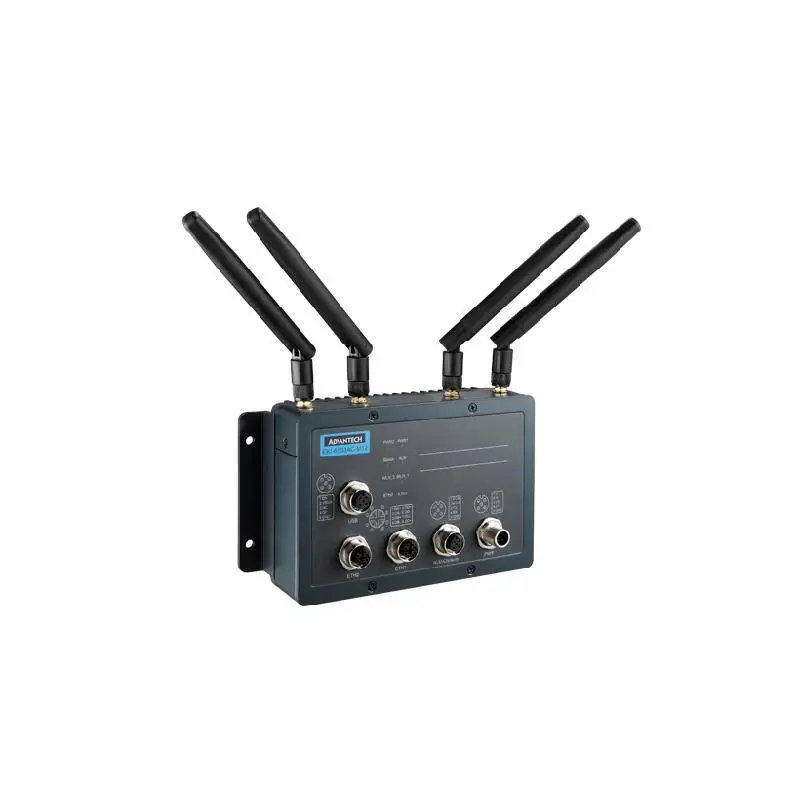

Advantech EKI-6333AC-M12 EN50155 Railway Concurrent Dual-Band 2T2R Wi-Fi AP/Client
