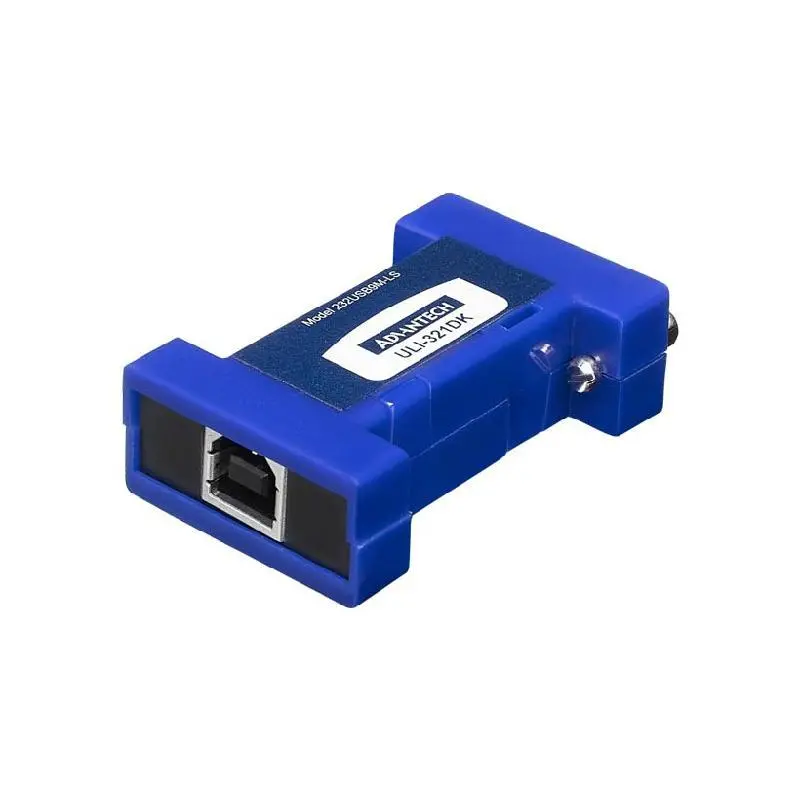

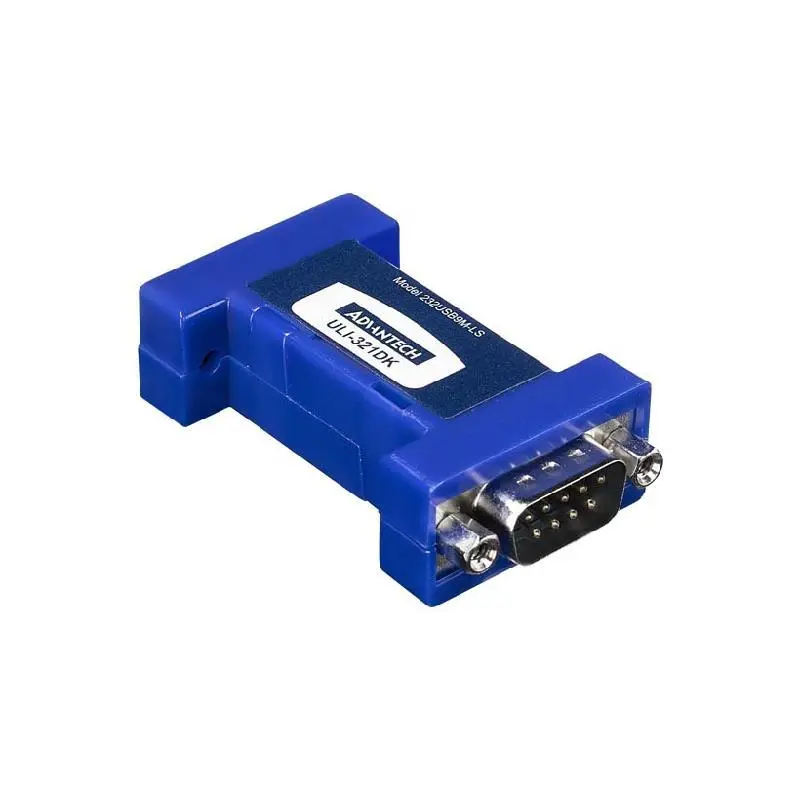

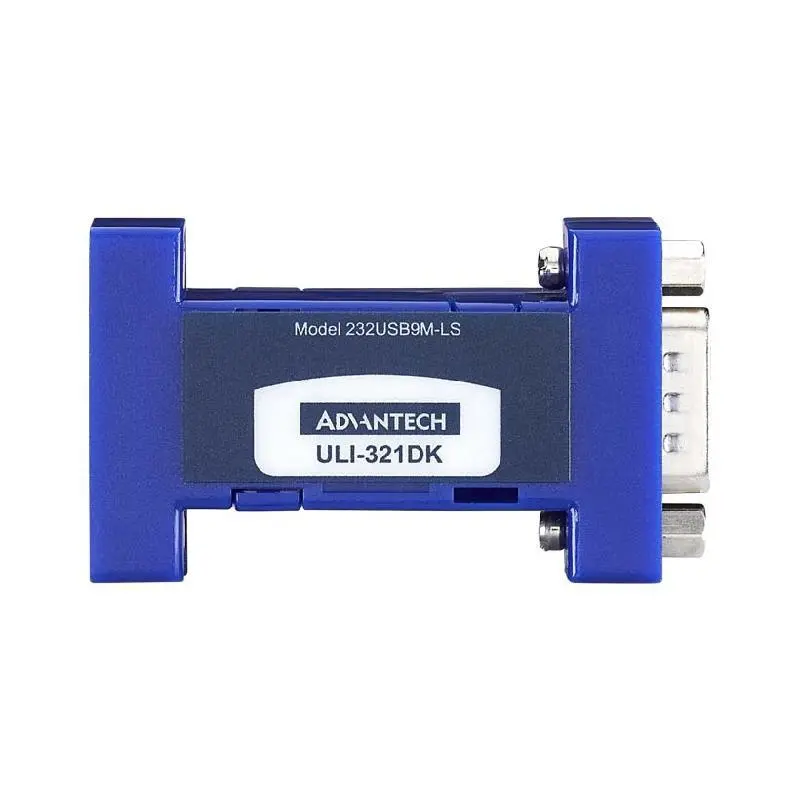

Advantech BB-232USB9M-LS ULI-321DK - USB 2.0 to RS-232 Converter, DB9 Male. Locked Serial Number

Connect RS-232 devices to your USB port

RS-232 data rates up to 921.6 Kbps

Small form factor with in-line installation (ideal for field service applications)

USB port powered

USB 2.0 (12 Mbps) compatible

USB cable Included

Locked Serial Number - simplifies use in service pool

		BB-232USB9M-LS
General	Technology	USB
Upstream USB Port	Standard	USB 2.0
General	Mounting	Inline
Upstream USB Port	Maximum Transfer Rate	Full-Speed (12 Mbps)
General	Power	Bus Powered
Upstream USB Port	Connector Type	Type B (Female)
General	Temperature	0 to 70C
Upstream USB Port	Port Number	1
General	Serial Port Count	1
USB Communication	Locked Serial Number	Yes
General	Serial Type	RS-232
Serial Communication	Serial Port Connector Type	DB9 male
General	Serial Connector	DB9 Male
Serial Communication	Maximum Serial Transmission Speed	921.6 Kbps
Environment	Operating Temperature	0 ~ 70°C (32 ~ 158°F)
Power	Power Input (USB)	Port-Powered from USB host (5 VDC)
Accessory General	Mounting	Inline
Serial Communication	Serial Standard	RS-232
Serial Communication	Serial Port Number	1
