| BB-USO9ML2-LS-A | ||
| Serial Communication | Serial Port Number | 1 |
| Protection | Isolation | 2,000 VDC |
| Environment | Operating Temperature | 0 ~ 70°C (32 ~ 158°F) |
| Protection | ESD Protection | 4 kV (Contact) ; 8 kV (Air) |
| Upstream USB Port | Standard | USB 2.0 |
| Upstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Upstream USB Port | Port Number | 1 |
| USB Communication | Locked Serial Number | Yes |
| Serial Communication | Serial Standard | RS-232 |
| Serial Communication | Serial Port Connector Type | DB9 male |
| Serial Communication | Maximum Serial Transmission Speed | 460.8 Kbps |
| Power | Power Input (USB) | Port-Powered from USB host (5 VDC) |
| Accessory General | Mounting | Inline |

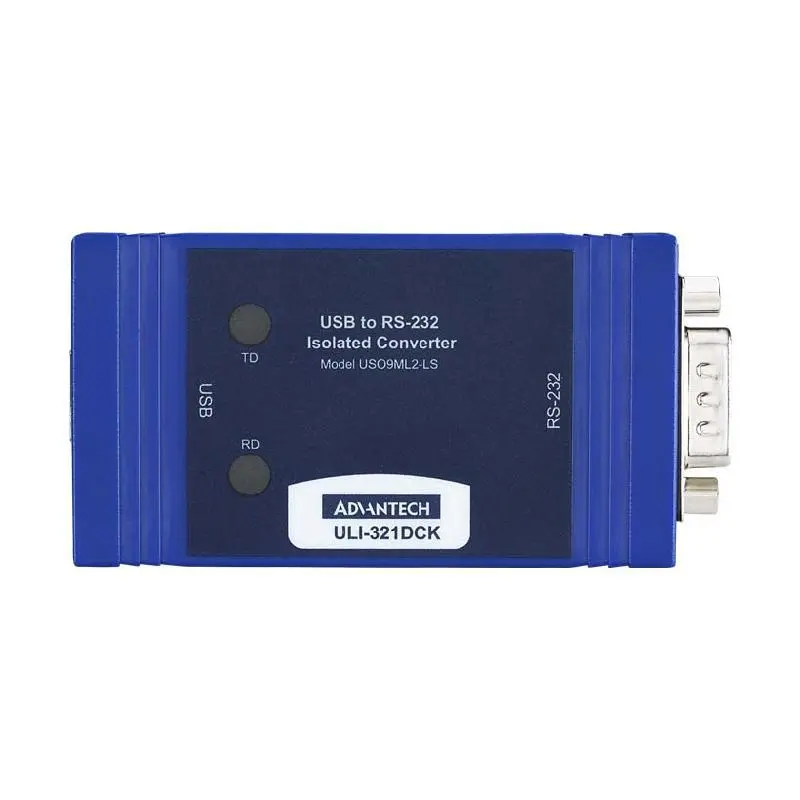

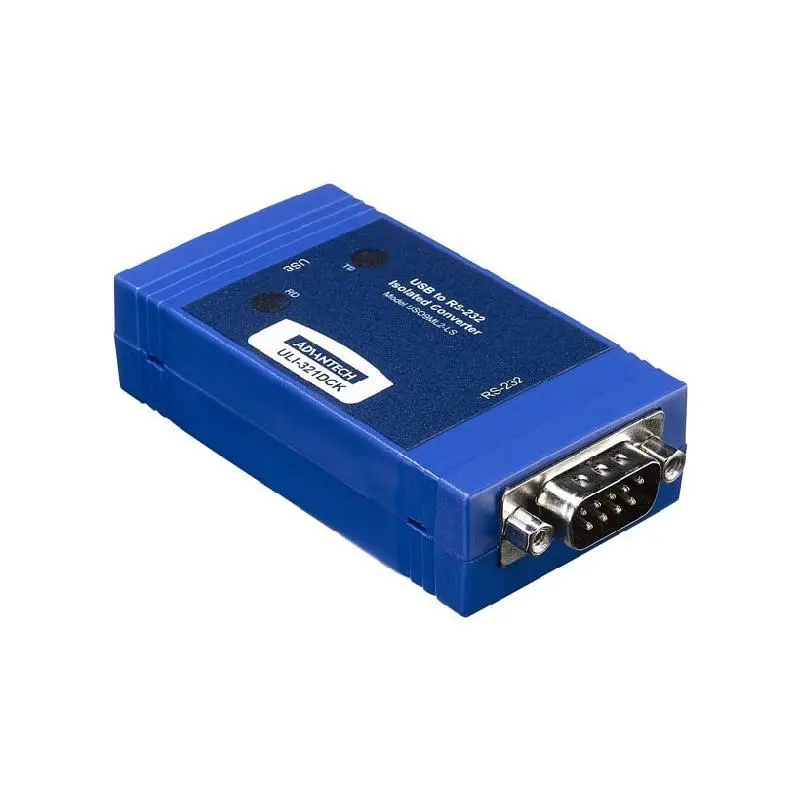

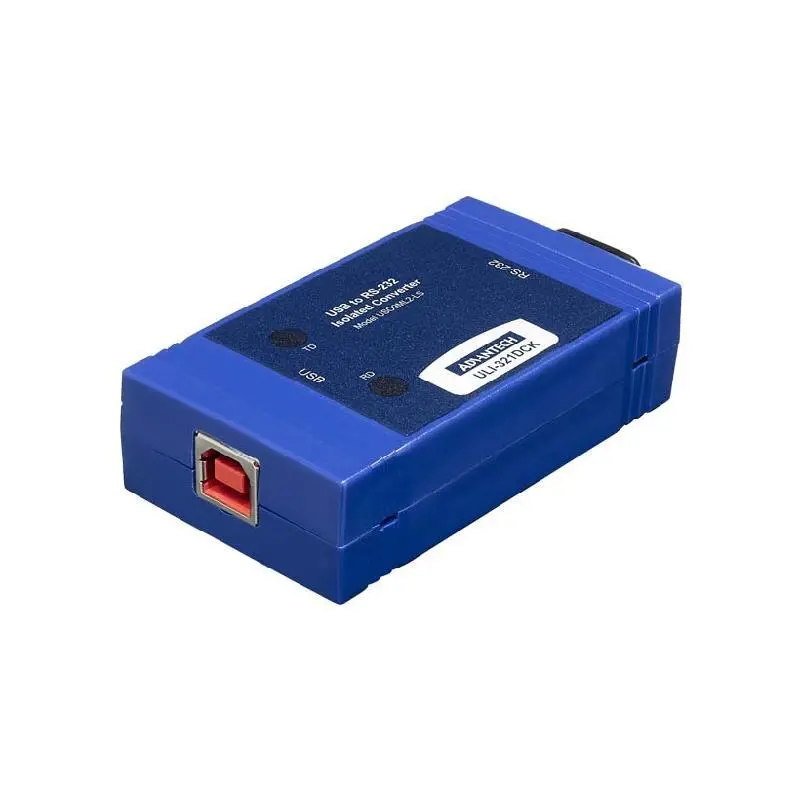

Advantech BB-USO9ML2-LS-A ULI-321DCK - USB 2.0 to RS-232 Converter, DB9 Male. Isolated. Locked Serial Number
