| BB-USOPTL4-4P | ||
| General | Technology | USB |
| Upstream USB Port | Standard | USB 2.0 |
| General | Mounting | Panel |
| Upstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| General | Power | Bus Powered |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| General | Temperature | 0 to 70C |
| Upstream USB Port | Port Number | 1 |
| General | Isolation | 2kV |
| Serial Communication | Serial Port Connector Type | Terminal block |
| General | Serial Port Count | 4 |
| Serial Communication | Maximum Serial Transmission Speed | 921.6 Kbps |
| Environment | Operating Temperature | 0 ~ 70°C (32 ~ 158°F) |
| General | Serial Type | RS-422, RS-485 |
| General | Serial Connector | Terminal Block |
| Protection | Isolation | 2,000 VDC |
| Power | Power Input (DC) | 10 ~ 30 VDC |
| Power | Power Input (USB) | Port-Powered from USB host (5 VDC) |
| Accessory General | Mounting | Panel |
| Serial Communication | Serial Standard | RS-422 / RS-485 |
| Serial Communication | Serial Port Number | 4 |

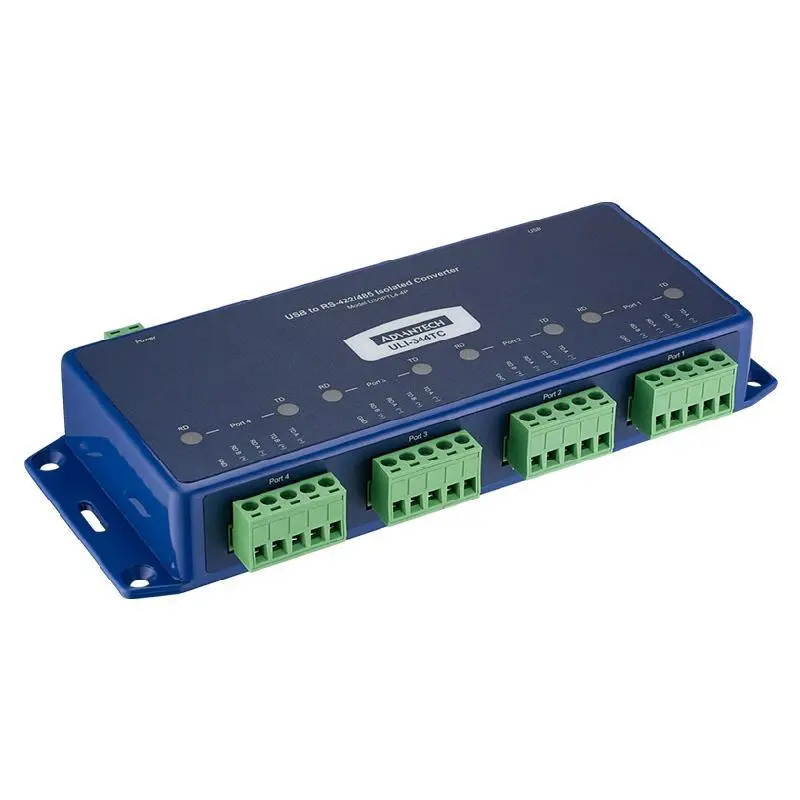

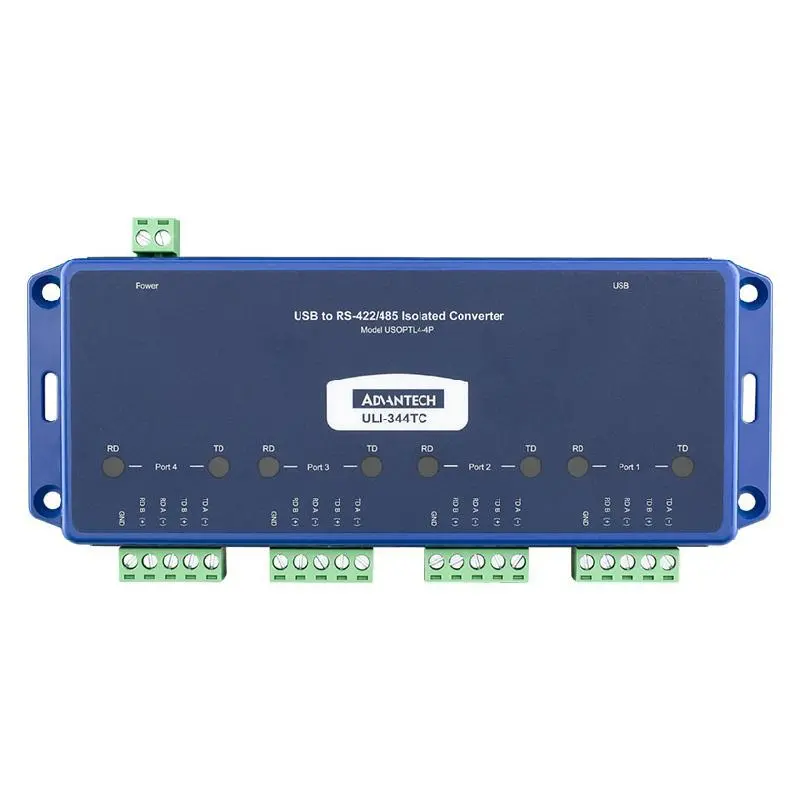

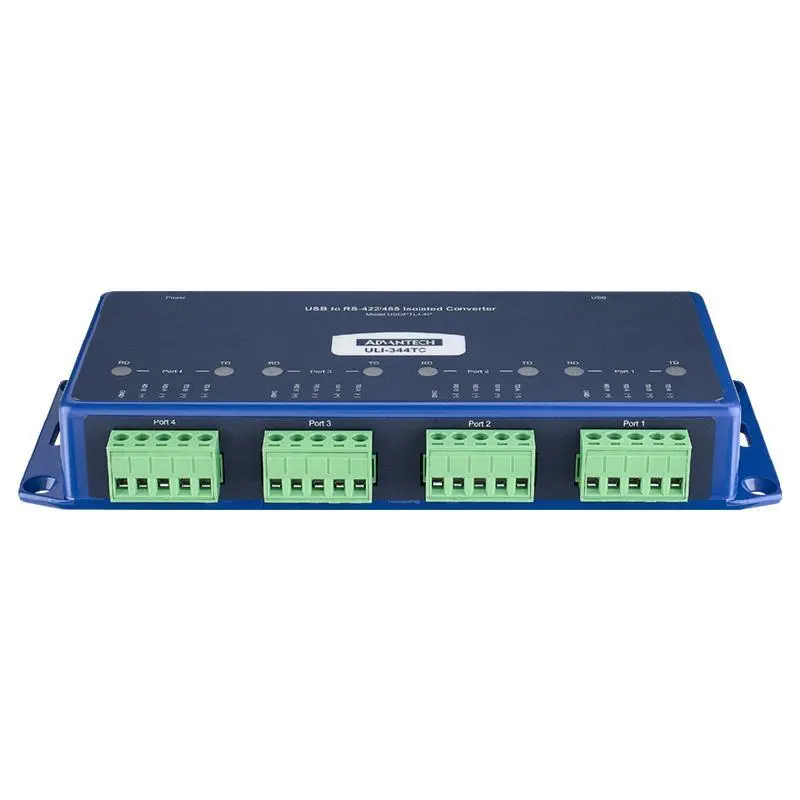

Advantech BB-USOPTL4-4P ULI-344TC - USB to RS-422/485 (Terminal Block) Isolated Converter 4 Port
