| BB-485USB9F-4W-LS | ||
| General | Technology | USB |
| Upstream USB Port | Standard | USB 2.0 |
| General | Mounting | Inline |
| Upstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| General | Power | Bus Powered |
| Upstream USB Port | Connector Type | Type B (Female) |
| General | Temperature | 0 to 70C |
| Upstream USB Port | Port Number | 1 |
| General | Serial Port Count | 1 |
| USB Communication | Locked Serial Number | Yes |
| General | Serial Type | RS-485 4-wire |
| Serial Communication | Serial Standard | RS-485 |
| General | Serial Connector | DB9 Female |
| Serial Communication | Maximum Serial Transmission Speed | 921.6 Kbps |
| Environment | Operating Temperature | 0 ~ 70°C (32 ~ 158°F) |
| Power | Power Input (USB) | Port-Powered from USB host (5 VDC) |
| Accessory General | Mounting | Inline |
| Serial Communication | Serial Port Connector Type | DB9 Female |

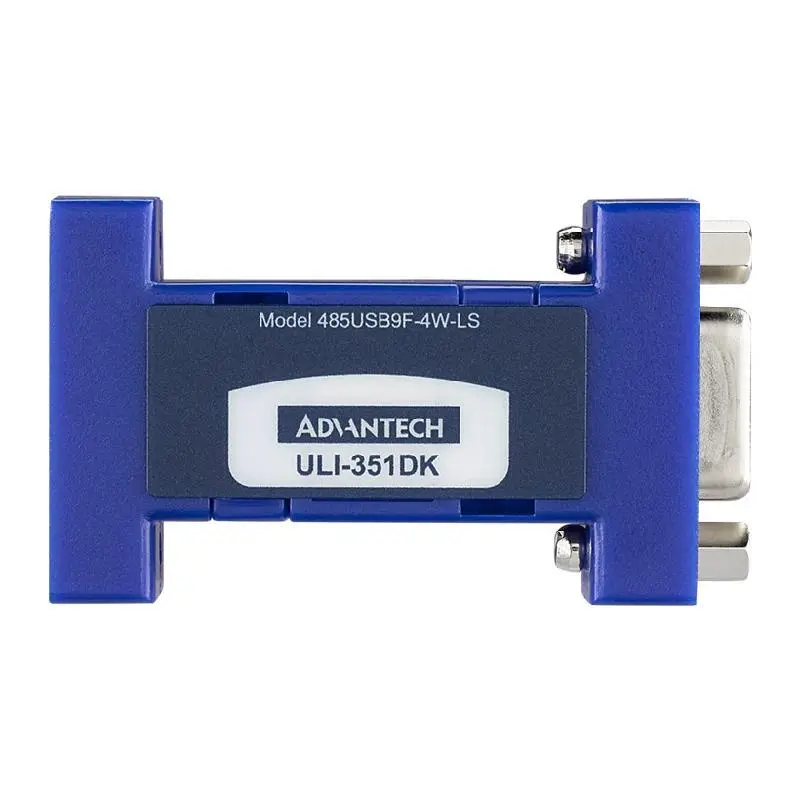

Advantech BB-485USB9F-4W-LS ULI-351DK - USB to RS-485 4 Wire (DB9 Female) Converter Locked Serial Number
