| BB-USBHUB4OEM | ||
| General | Technology | USB |
| Upstream USB Port | Standard | USB 2.0 |
| General | Mounting | Open board |
| Upstream USB Port | Maximum Transfer Rate | Hi-Speed (480 Mbps) |
| General | Power | Bus Powered |
| Power | Power Input (USB) | Port-Powered from USB host (5 VDC) |
| General | Temperature | -40 to 80C |
| Upstream USB Port | Port Number | 1 |
| Environment | Operating Temperature | -40 ~ 80°C (-40 ~ 176°F) |
| General | USB Port Count | 1 |
| Protection | ESD Protection | 8 kV (Contact) ; 15 kV (Air) |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Downstream USB Port | Standard | USB 2.0 |
| Downstream USB Port | Maximum Transfer Rate | Hi-Speed (480 Mbps) |
| Downstream USB Port | Connector Type | Type A (Female) High Retention |
| Downstream USB Port | Port Number | 4 |
| Downstream USB Port | Supply Current | 100mA for each downstream port |

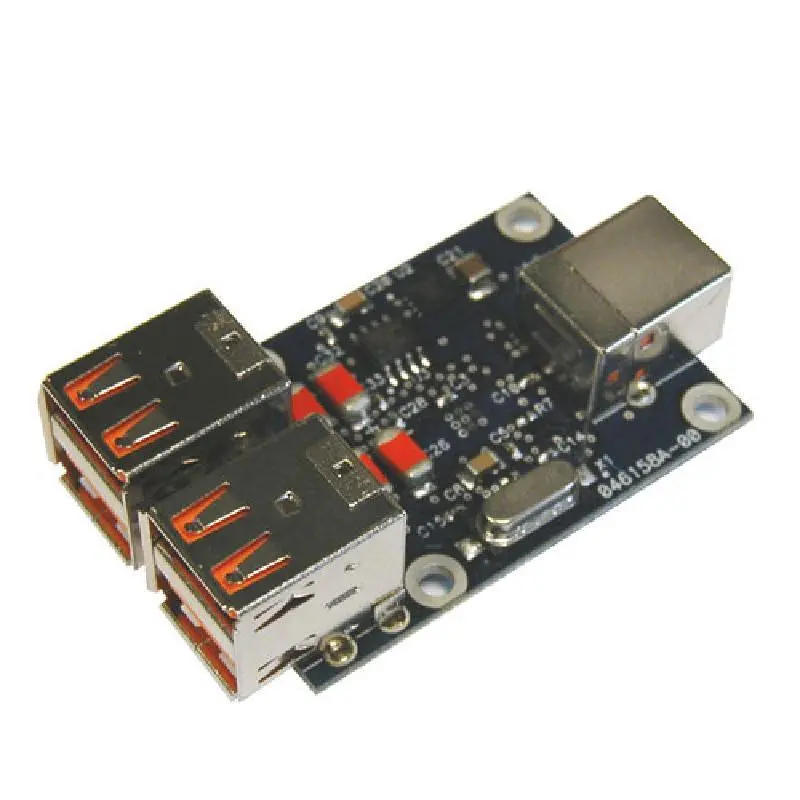

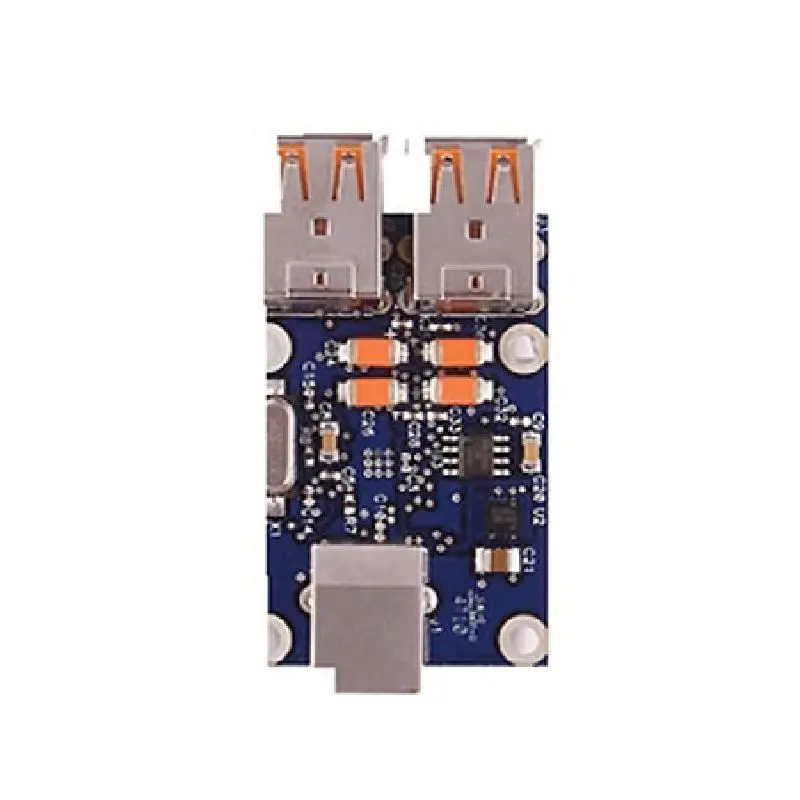

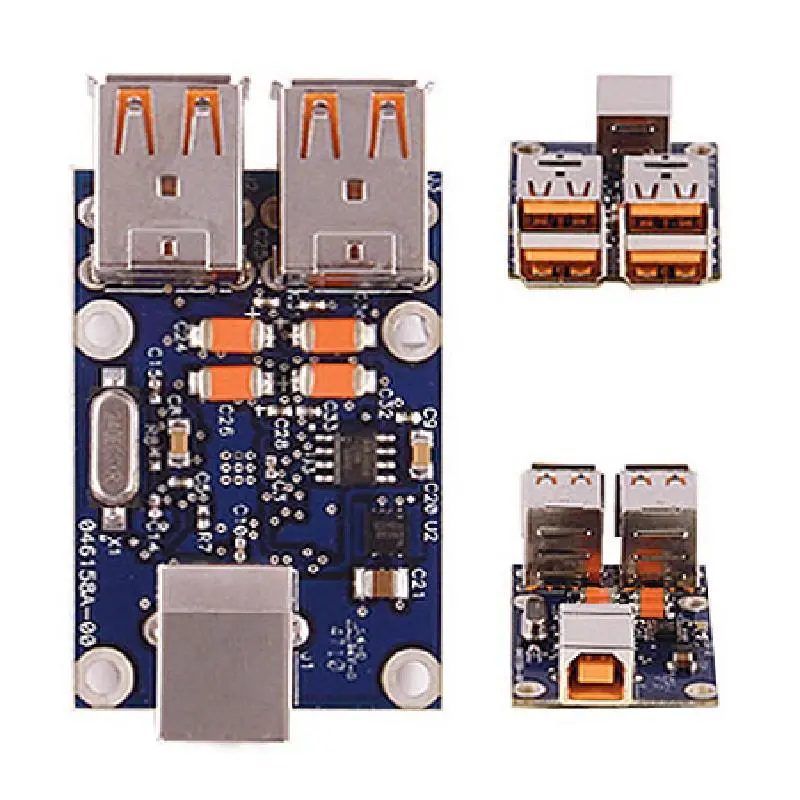

Advantech BB-USBHUB4OEM ULI-414LIB - USB 2.0 Hub, 4-Ports, Open Board, High Retention Connectors
