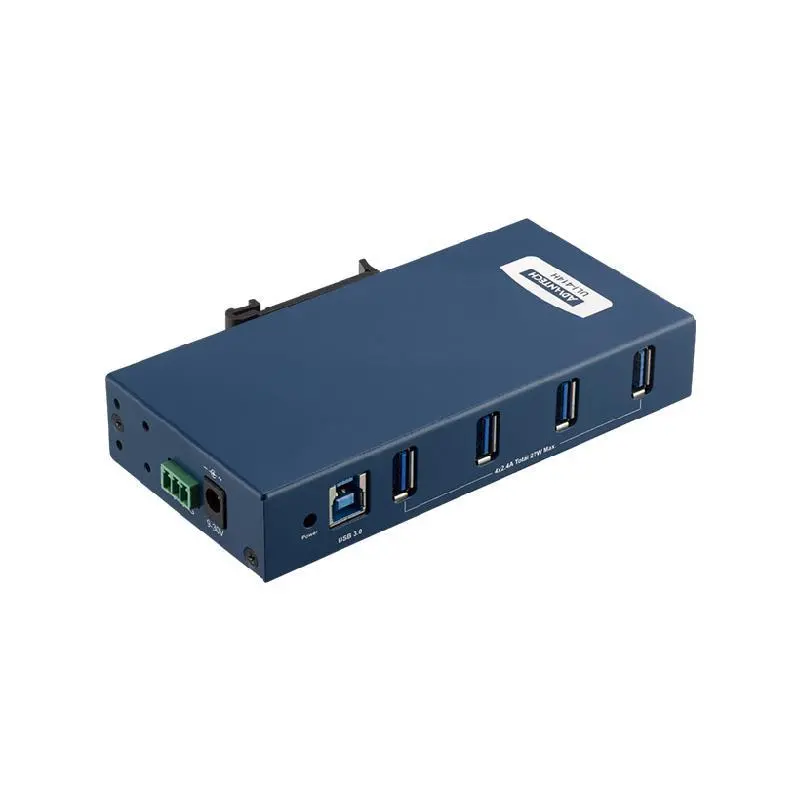

Advantech BB-USH204-B ULI-414H - Industrial USB 3.2 Gen 1 (5Gbps) Hub, 4 Port, Metal Case

USB 3.2 Gen1 speeds up to 5 Gbps

Expands one USB port to 4 USB ports

4 downstream USB 3.2 ports (Type A); 1 upstream USB 3.2 port (Type B)

Each downstream port supports up to 2.4A to a maximum of 27W

15 kV air ESD protection and 1kV surge protection

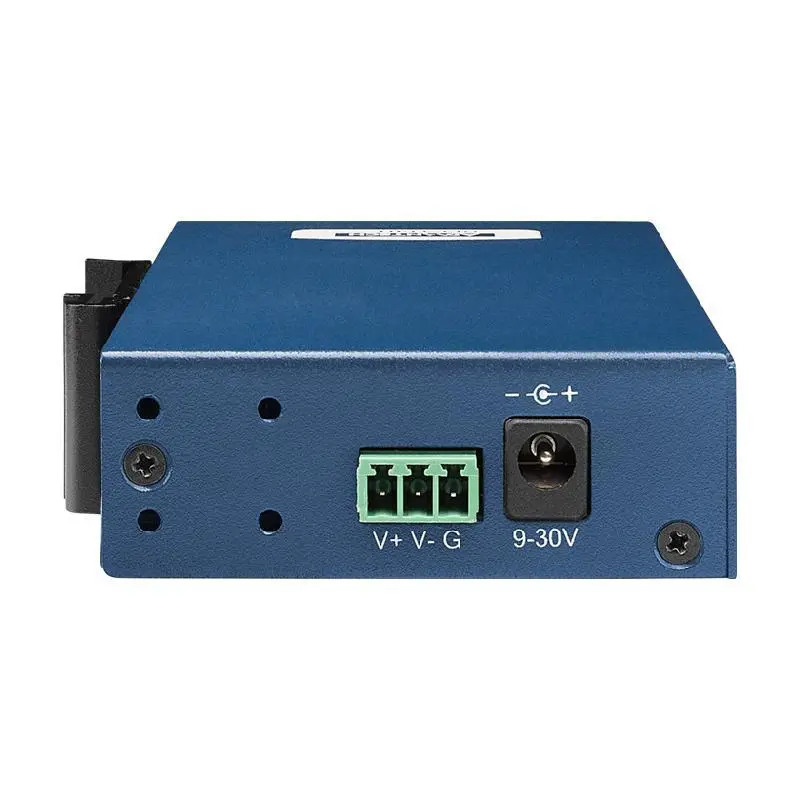

9-30VDC Power inputs with polarity reverse protection

Metal case with chassis ground

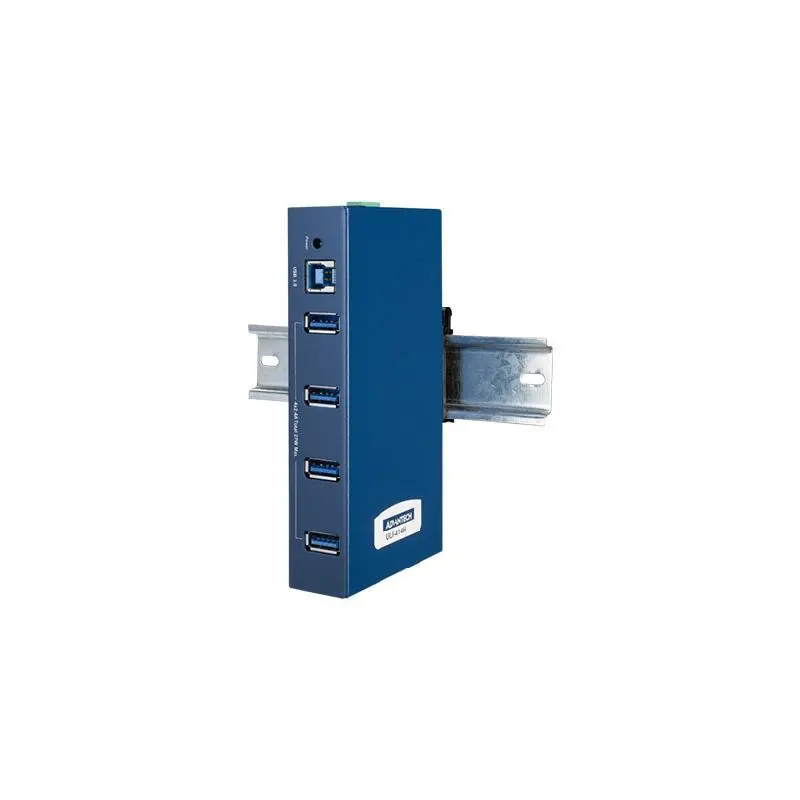

DIN-rail, wall-mount and desktop mount options (mounting kit included)

USB 3.0 Type A to Type B cable (2m) included

		BB-USH204-B
Upstream USB Port	Standard	USB 3.2 Gen 1 / USB 3.0
Upstream USB Port	Maximum Transfer Rate	SuperSpeed (5 Gbps)
Upstream USB Port	Connector Type	Type B (Female)
Upstream USB Port	Port Number	1
Downstream USB Port	Standard	USB 3.2 Gen 1 / USB 3.0
Downstream USB Port	Maximum Transfer Rate	SuperSpeed (5 Gbps)
Downstream USB Port	Connector Type	Type A (Female)
Downstream USB Port	Port Number	4
Downstream USB Port	Supply Current	4 x 2.4A on any port to a maximum of 27W total (CDP)
Protection	ESD Protection	8 kV (Contact) ; 15 kV (Air)
Protection	Surge Protection	1 KV
Mechanism	Enclosure (Metal)	Metal
Mechanism	Mounting (DIN-rail)	Yes
Mechanism	Mounting (Wall)	Yes
Power	Power Input (DC)	9 ~ 30 VDC
Certification	CE	Yes
Certification	FCC/IC	Yes
