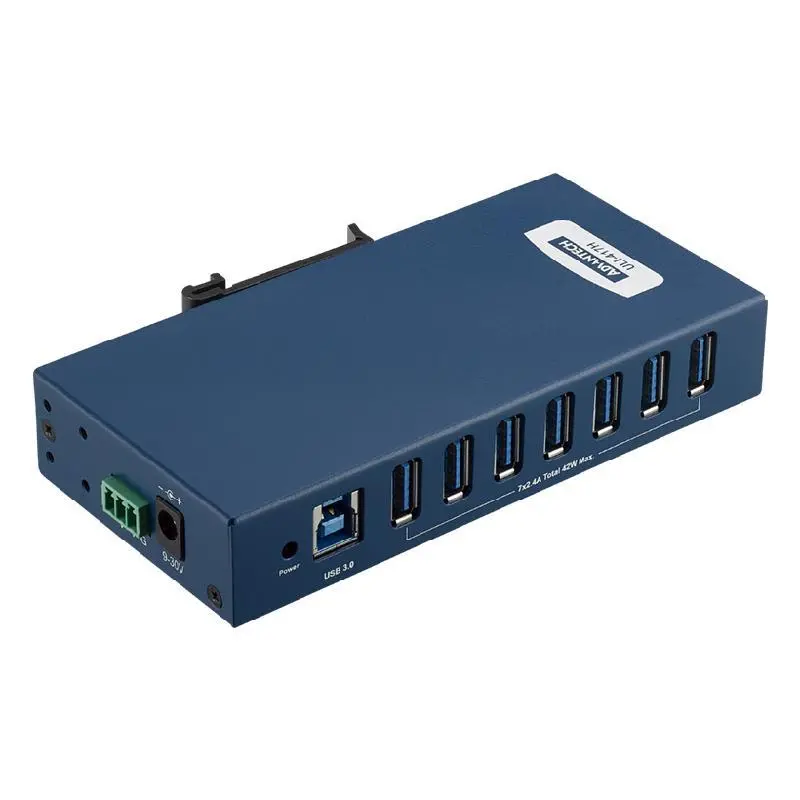

Advantech BB-USH207-B ULI-417H - 7-port industrial USB 3.2 SuperSpeed 5Gbps hub with metal case. ESD protection up to 15kV (level 4).

• 7-port USB 3.2 Gen1 speeds up to 5 Gbps

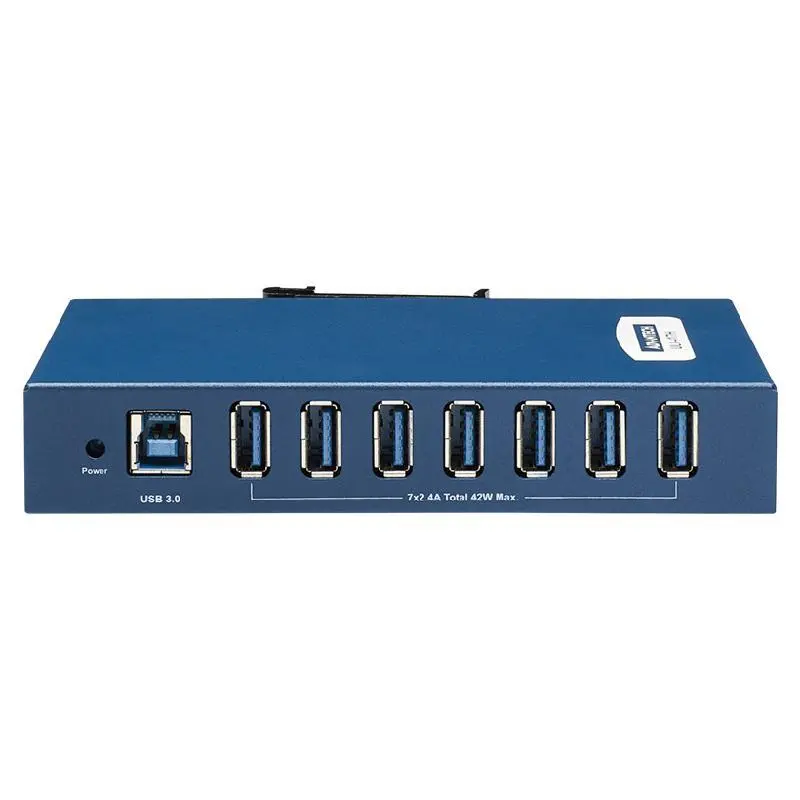

• 7 downstream USB 3.2 ports (Type A); 1 upstream USB 3.2 port (Type B)

• Each downstream port supports up to 2.4A to a maximum of 42W

• 15 kV (level 4) air ESD protection and 1kV surge protection

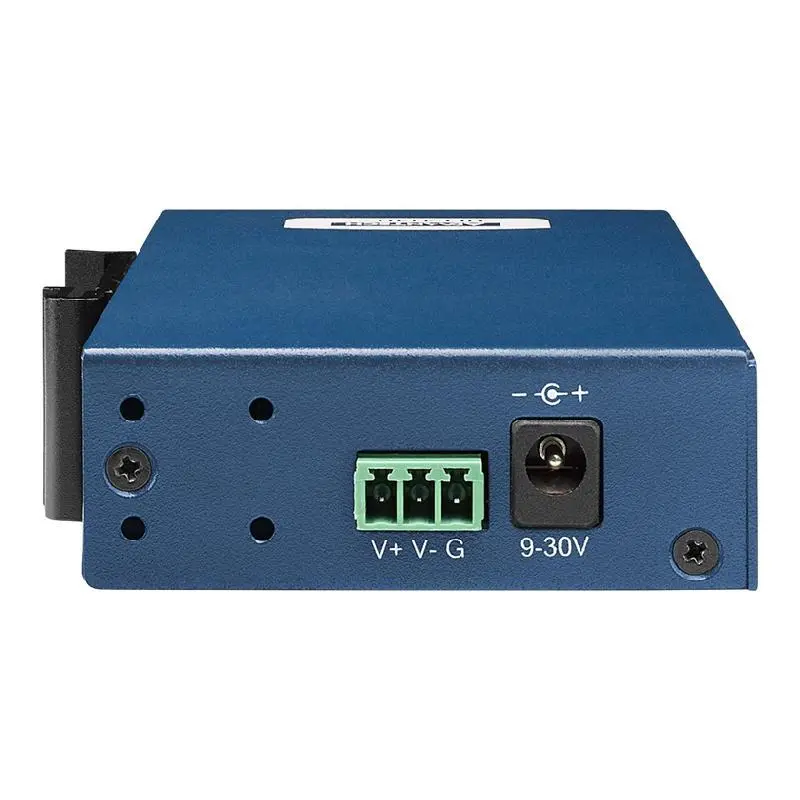

• 9-30VDC Power inputs with polarity reverse protection

• Metal case with chassis ground

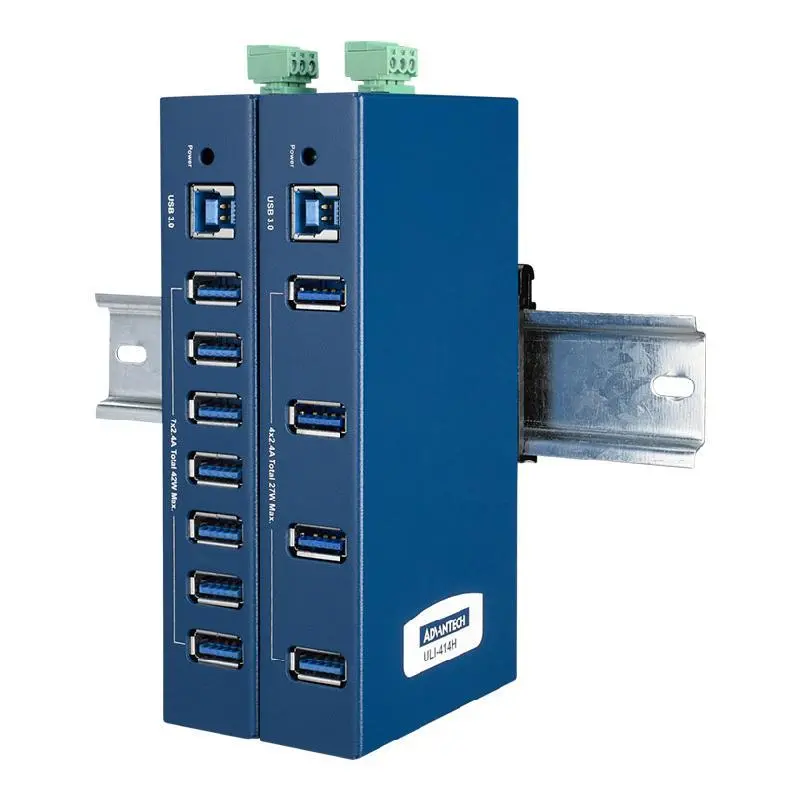

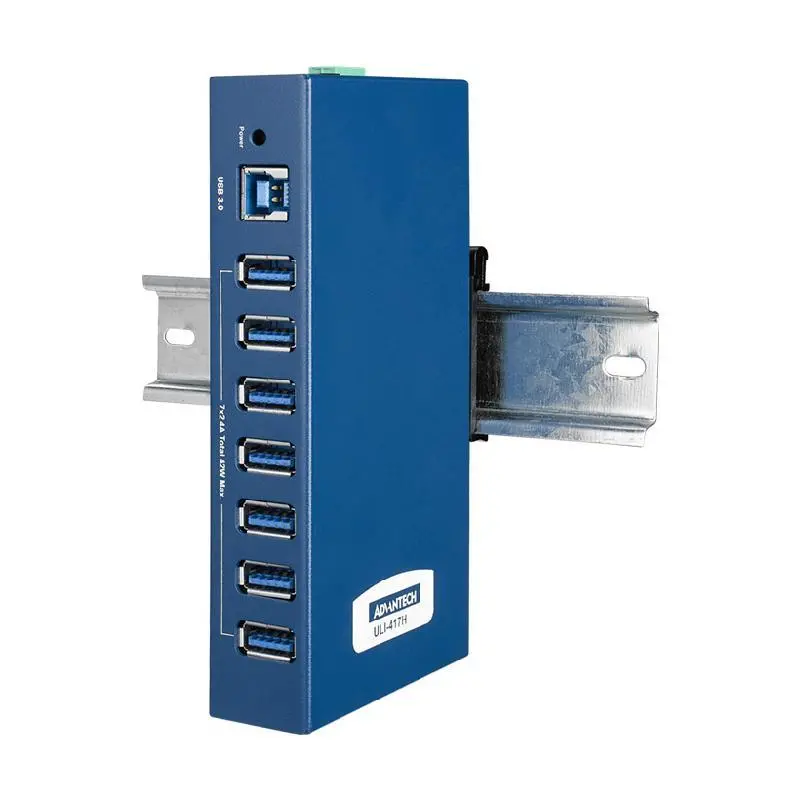

• DIN-rail, wall-mount and desktop mount options available (mounting kit included)

• USB 3.0 Type A to Type B cable (2m) included

		BB-USH207-B
Upstream USB Port	Standard	USB 3.2 Gen 1 / USB 3.0
Upstream USB Port	Maximum Transfer Rate	SuperSpeed (5 Gbps)
Upstream USB Port	Connector Type	Type B (Female)
Upstream USB Port	Port Number	1
Downstream USB Port	Standard	USB 3.2 Gen 1 / USB 3.0
Downstream USB Port	Maximum Transfer Rate	SuperSpeed (5 Gbps)
Downstream USB Port	Connector Type	Type A (Female)
Downstream USB Port	Port Number	7
Power	Power Input (DC)	9 ~ 30 VDC
Environment	Operating Temperature	0 ~ 50 °C (32 ~ 122°F)
Protection	ESD Protection	8 kV (Contact) ; 15 kV (Air)
Protection	Surge Protection	1 KV
Mechanism	Enclosure (Metal)	Metal
Mechanism	Mounting (DIN-rail)	Yes
Mechanism	Mounting (Wall)	Yes
Certification	CE	Yes
Certification	FCC/IC	Yes
Certification	KCC	Yes
Downstream USB Port	Supply Current	7 x 2.4A on any port to a maximum of 42W total (CDP)
