| BB-UH401 | ||
| General | Technology | USB |
| General | Mounting | Inline |
| Protection | Isolation | 4,000 VDC |
| Environment | Operating Temperature | -40 ~ 80°C (-40 ~ 176°F) |
| General | Power | Bus Powered |
| Certification | EMC | CE, FCC |
| General | Temperature | -40 to 80C |
| General | Isolation | 4kV |
| Power | Power Input (USB) | Port-Powered from USB host (5 VDC) |
| General | USB Port Count | 1 |
| USB Communication | USB Connector | High Retention Connector |
| General | USB Speed | 12Mbps |
| Protection | ESD Protection | 15 kV |
| Accessory General | Mounting | Inline |
| Upstream USB Port | Standard | USB 2.0 |
| Upstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Upstream USB Port | Port Number | 1 |
| Downstream USB Port | Standard | USB 2.0 |
| Downstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Downstream USB Port | Connector Type | Type A (Female) High Retention |
| Downstream USB Port | Port Number | 1 |
| Downstream USB Port | Supply Current | 100mA for each downstream port |

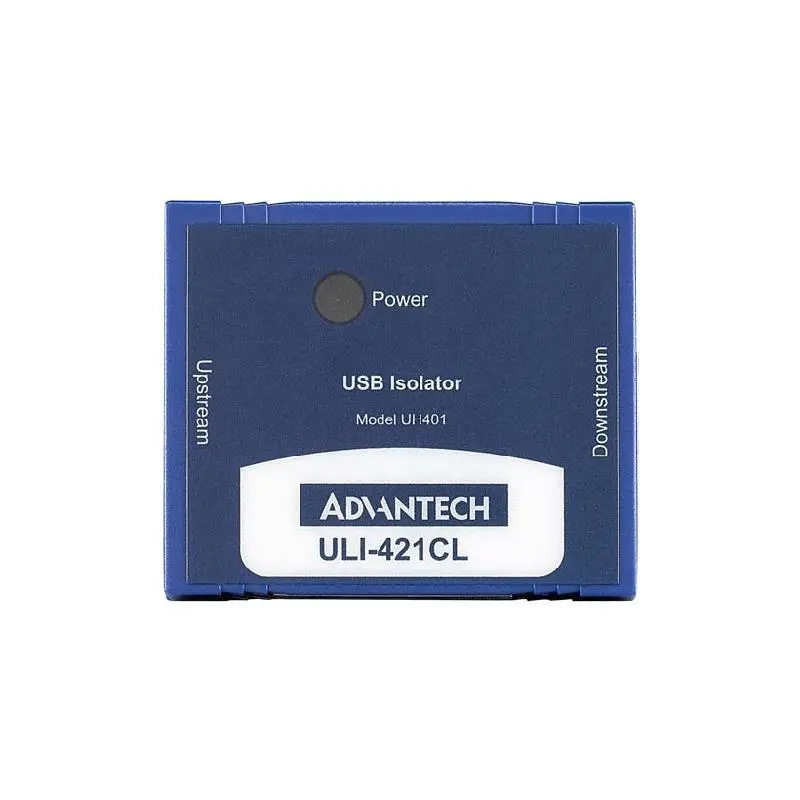

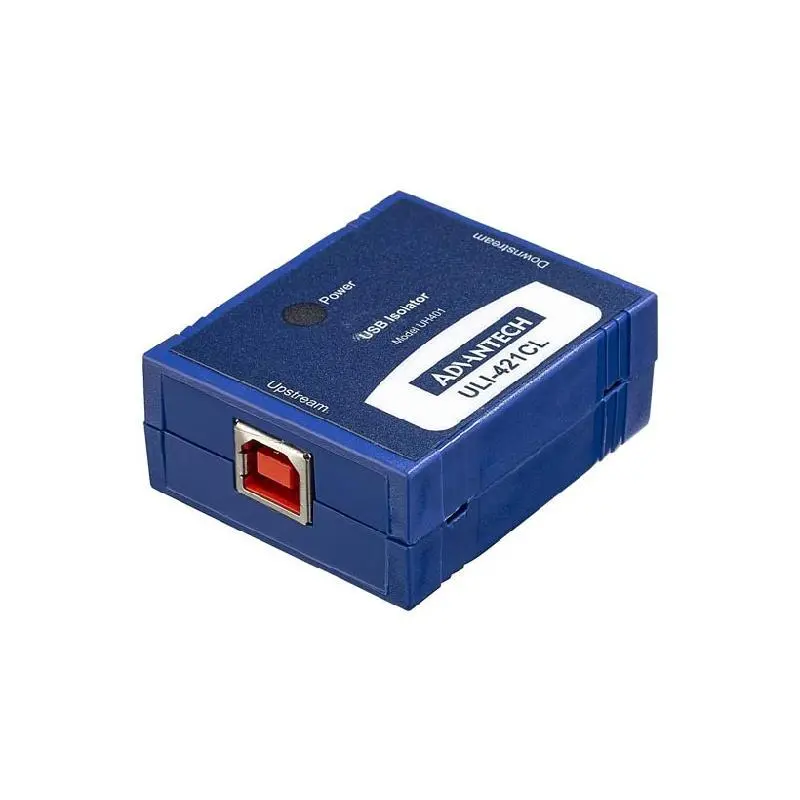

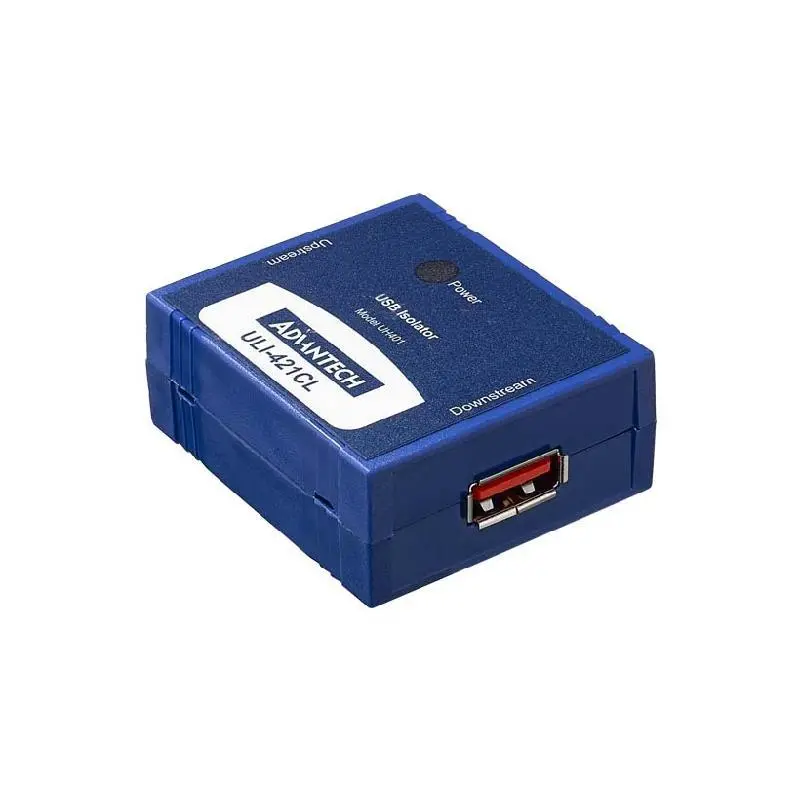

Advantech BB-UH401 ULI-421CL - USB 2.0 Isolator, 4 kV, High Retention Connectors
