| BB-UHR401 | ||
| General | Technology | USB |
| Power | Power Input (DC) | 10 ~ 30 VDC |
| General | Mounting | Panel |
| Interface | Port Number | 1 |
| General | Power | 10-30VDC |
| Protection | ESD Protection | 4 kV (Contact) ; 8 kV (Air) |
| General | Temperature | 0 to 50C |
| Upstream USB Port | Standard | USB 2.0 |
| General | Isolation | 4kV |
| Upstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| General | USB Port Count | 1 |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| General | USB Speed | 12Mbps |
| Upstream USB Port | Port Number | 1 |
| Downstream USB Port | Standard | USB 2.0 |
| Downstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Downstream USB Port | Connector Type | Type A (Female) High Retention |
| Downstream USB Port | Port Number | 1 |
| Downstream USB Port | Supply Current | 500mA for each downstream port |
| Environment | Operating Temperature | 0 ~ 50°C (32 ~ 122°F) |
| Protection | Isolation | 4,000 VDC |

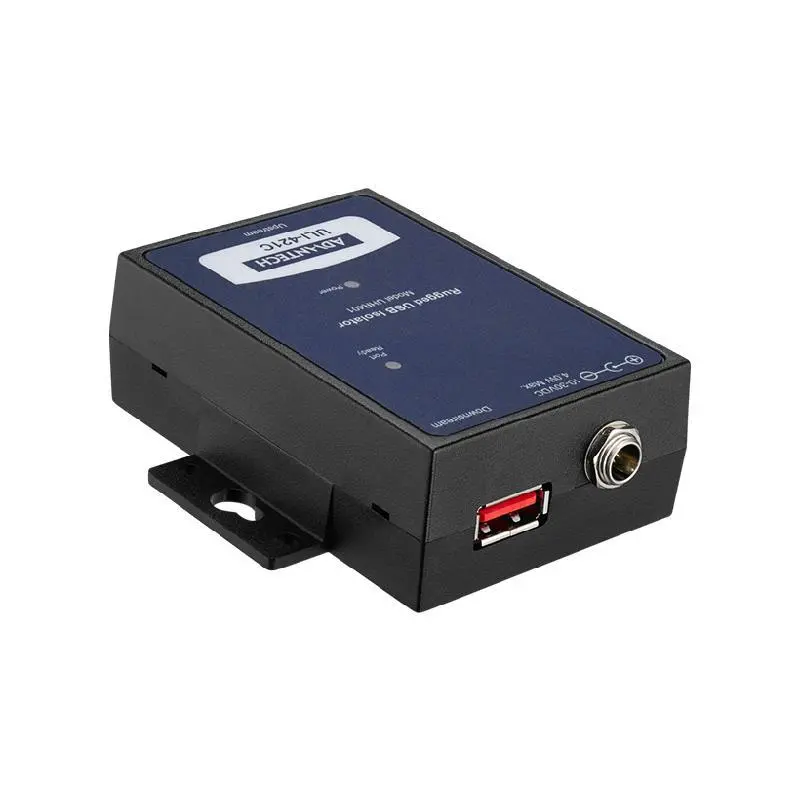

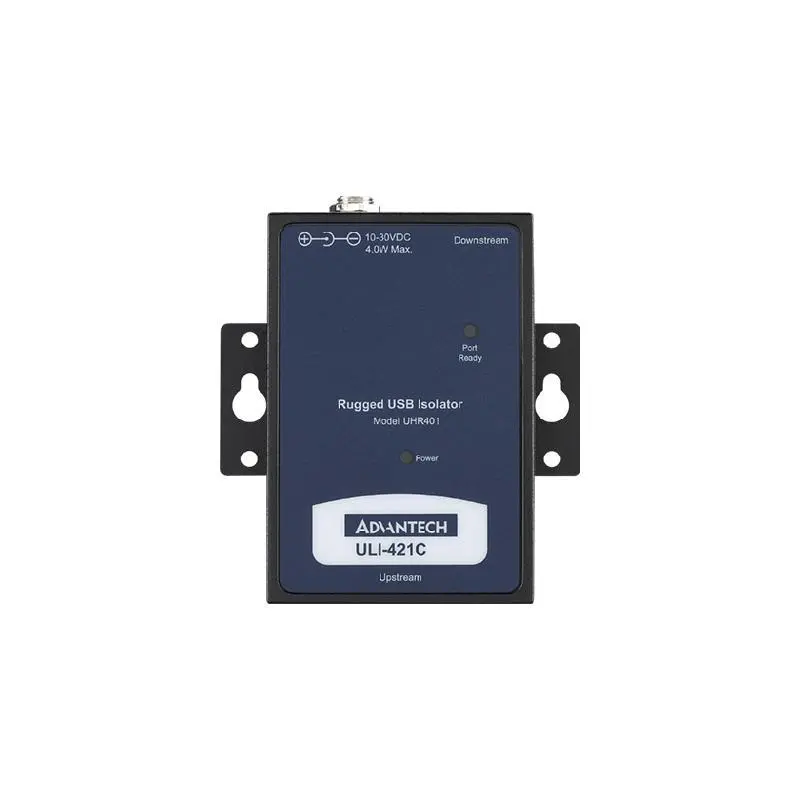

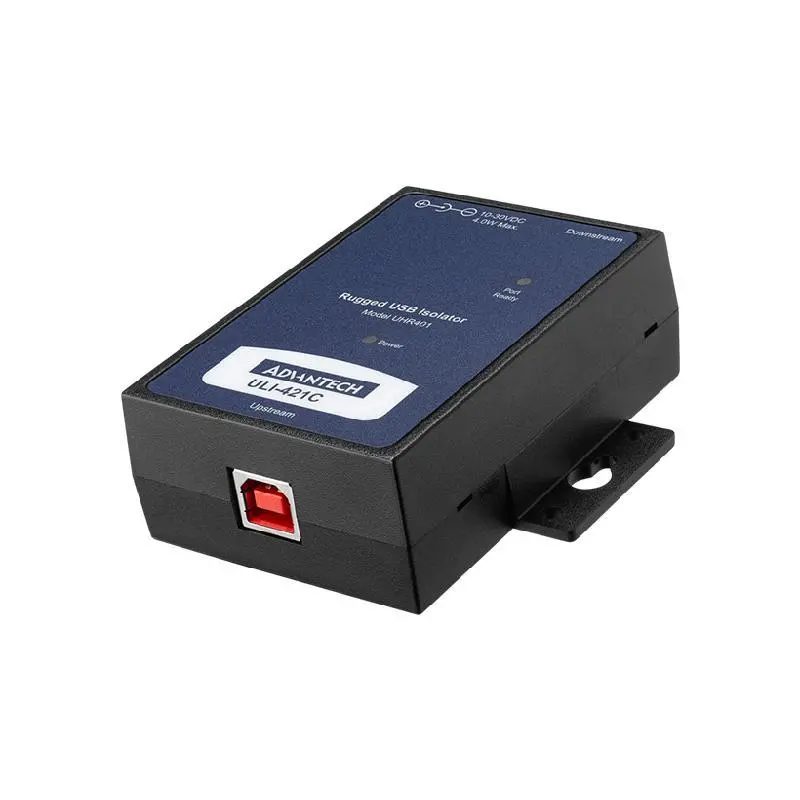

Advantech BB-UHR401 ULI-421C - USB 2.0 Isolator, 4 kV, High Retention Connectors. 1 Ports, Panel Mount Case
