| PCE-2032-00A1 | PCE-2132-00A1 | ||
| Front I/O Interface | USB 2.0 | 2 | 2 |
| Front I/O Interface | USB 3.0 | 6 | 6 |
| Environment | Operating Shock | - | - |
| Environment | Operating Vibration | - | - |
| Front I/O Interface | Serial Port | 2xRS-232/422/485 | 2xRS-232/422/485 |
| Graphics | Graphic Interface | HDMI + VGA | HDMI + VGA |
| Graphics | Chipset Integrated | Integrated Intel HD Graphics | Integrated Intel HD Graphics |
| Miscellaneous | Control | Power Switch | Power Switch |
| Mechanical | Dimension (W x H x D) | - | - |
| Mechanical | Weight (Net) | - | - |
| Power | Power Input | - | - |
| Power | Power Type | - | - |
| Storage | CFast | - | - |
| Storage | HDD | 2 x 2.5" SSD/HDD Easy-Swap Bay | 2 x 2.5" SSD/HDD Easy-Swap Bay |
| WatchDog Timer | Interval | Programmable 1~255 sec | Programmable 1~255 sec |
| WatchDog Timer | Output | System Reset | System Reset |
| Ethernet | Controller | LAN1: Intel® I219-V, LAN 2: Intel® I210-AT | LAN1: Intel® I219-LM, LAN2: Intel® I210-AT |
| Memory | Max. Capacity | 64 GB | 64 GB |
| Memory | Socket | 2 x 260-pin DDR4 SO-DIMM | 2 x 260-pin DDR4 SO-DIMM |
| Memory | Technology | DDR4 2666 MHz | DDR4 2666 MHz |
| Processor System | CPU | Intel Core i3/i5/i7 | Intel Core i3/i5/i7 |
| Cooling | Air Filter | Yes | Yes |
| Processor System | Chipset | - | - |
| Processor System | Core Number | 4/6/8/10 | 4/6/8/10 |
| Processor System | BIOS | AMI 256 Mbit SPI Flash | AMI 256 Mbit SPI Flash |
| Processor System | Frequency | Based on Intel CPU spec | Based on Intel CPU spec |
| Processor System | L3 Cache | 8 MB/6 MB/4 MB/3 MB/ | 8 MB/6 MB/4 MB/3 MB/ |
| Expansion Interface | PCI Express x 16 | - | - |
| Expansion Interface | PCI Express x 4 | - | - |
| Expansion Interface | PCI | - | - |

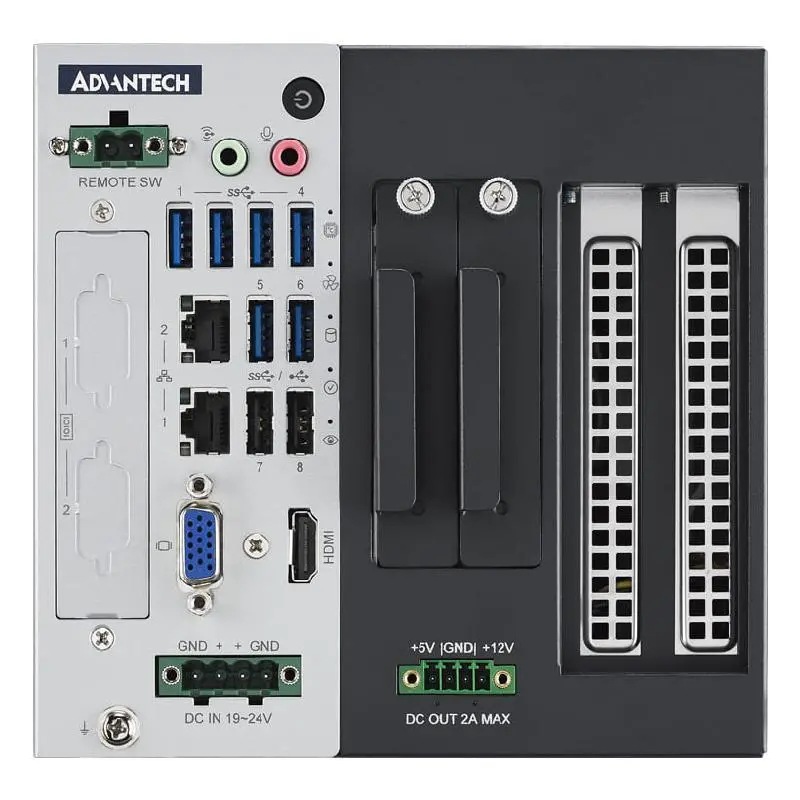

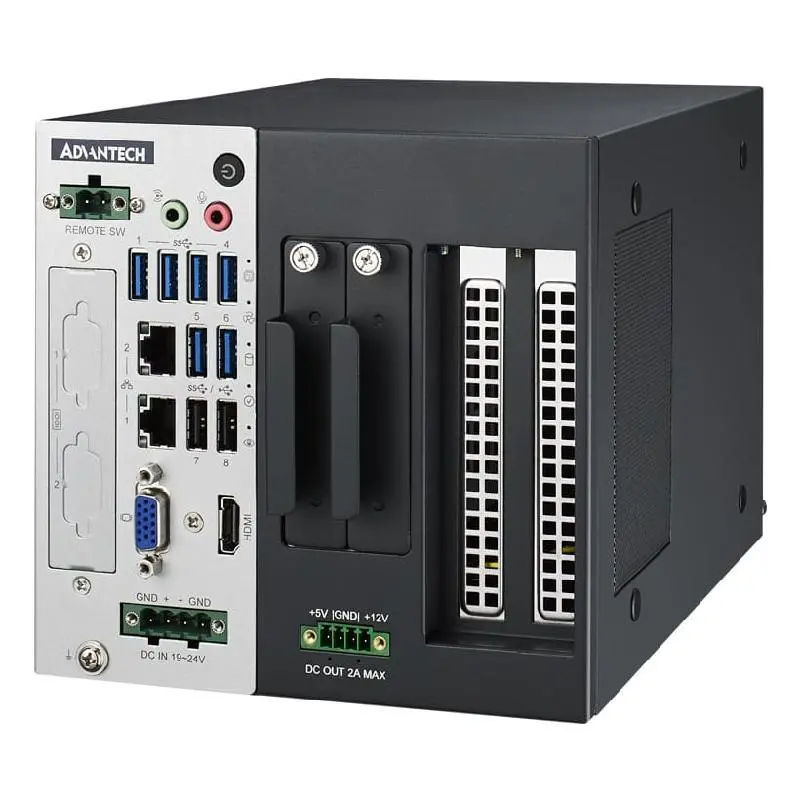

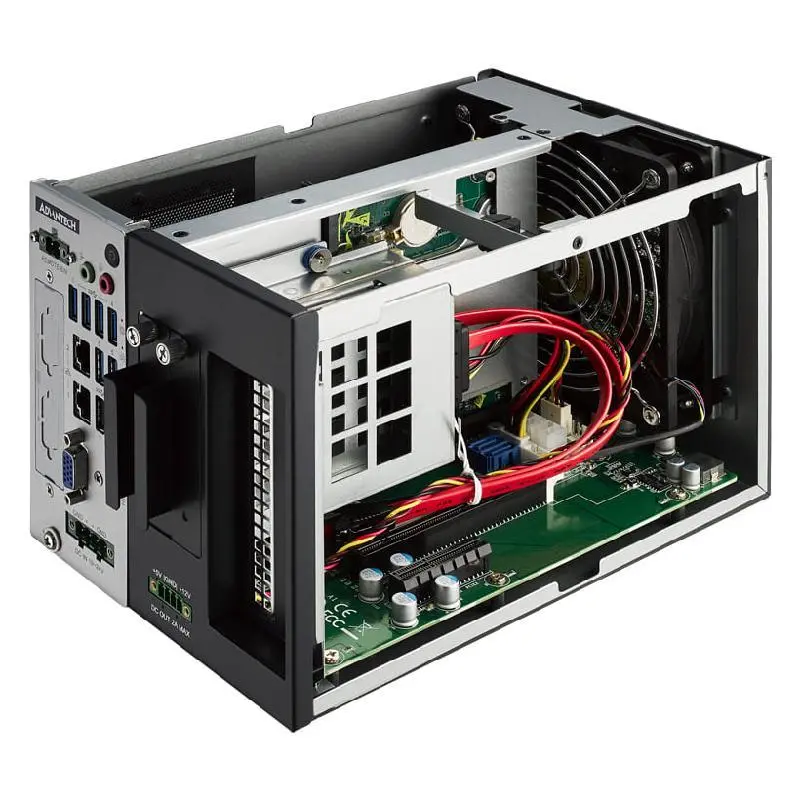

Advantech IPC-220 Compact Industrial Computer Chassis for PCE-2000 Series CPU Board
