| IPC-240-00A1 | IPC-240-01A1 | PCE-2029-00A1 | PCE-2129-00A1 | ||
| Front I/O Interface | USB 2.0 | - | - | 4 + 2(internal) | 2+2(internal) |
| Front I/O Interface | USB 3.0 | - | - | 4 | 6 |
| Environment | Operating Shock | With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration | With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration | With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration | With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration |
| Environment | Operating Vibration | 1Grms (with HDD), 3Grms (with SSD) | 1Grms (with HDD), 3Grms (with SSD) | 1Grms (with HDD), 3Grms (with SSD) | 1Grms (with HDD), 3Grms (with SSD) |
| Ethernet | Interface | - | - | 2xRS-232/422/485; 2xRS-232 | 2xRS-232/422/485; 2xRS-232 |
| Front I/O Interface | Audio Jack | - | - | HDMI + VGA | HDMI + VGA |
| Front I/O Interface | Serial Port | - | - | Intel HD Graphic 530/510, support DirectX12 | Intel HD Graphic 530/510, support DirectX12 |
| Graphics | Graphic Interface | - | - | Power Switch | Power Switch |
| Miscellaneous | Control | - | - | 180 x 230 x 150 mm | 180 x 230 x 150 mm |
| Mechanical | Dimension (W x H x D) | 180 x 230 x 150 mm | 180 x 230 x 150 mm | 3.2kg(7.05lbs) | 3.2kg(7.05lbs) |
| Mechanical | Weight (Net) | 3.2kg(7.05lbs) | 3.2kg(7.05lbs) | 19~24VDC | 19~24VDC |
| Power | Power Input | - | - | ATX/AT | ATX/AT |
| Power | Power Type | - | - | - | - |
| Storage | CFast | - | - | 2 x 2.5" SSD/HDD Easy-Swap Bay | 2 x 2.5" SSD/HDD Easy-Swap Bay |
| Storage | HDD | 2 x 2.5" SSD/HDD Easy-Swap Bay | 2 x 2.5" SSD/HDD Easy-Swap Bay | Programmable 1~255 sec | Programmable 1~255 sec |
| WatchDog Timer | Interval | - | - | System Reset | System Reset |
| WatchDog Timer | Output | - | - | LAN1: Intel® I219-V, LAN 2: Intel® I210-AT | LAN1: Intel® I219-LM, LAN2: Intel® I210-AT |
| Memory | Max. Capacity | - | - | 32GB (16GB per DIMM) | 32GB (16GB per DIMM) |
| Memory | Socket | - | - | 2 x 260-pin DDR4 SO-DIMM | 2 x 260-pin DDR4 SO-DIMM |
| Memory | Technology | - | - | DDR4 2133/2400 MHz (without ECC) | DDR4 2133/2400 MHz (without ECC) |
| Processor System | CPU | - | - | Intel Core i3/i5/i7 (LGA1151) | Intel Core i3/i5/i7 (LGA1151) |
| Processor System | Chipset | - | - | Intel® H110 | Intel Q170 |
| Processor System | Core Number | - | - | 4 / 2 core | 4 / 2 core |
| Processor System | BIOS | - | - | AMI 128 Mbit SPI Flash | AMI 128 Mbit SPI Flash |
| Processor System | Frequency | - | - | Based on Intel CPU spec | Based on Intel CPU spec |
| Processor System | L3 Cache | - | - | 8 MB/6 MB/4 MB/3 MB/ | 8 MB/6 MB/4 MB/3 MB/ |

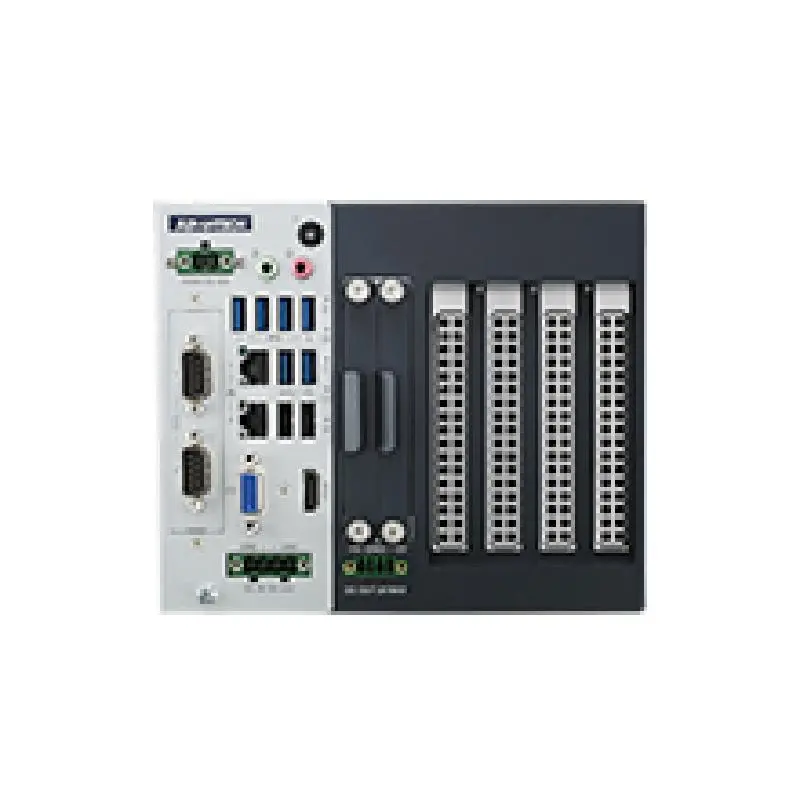

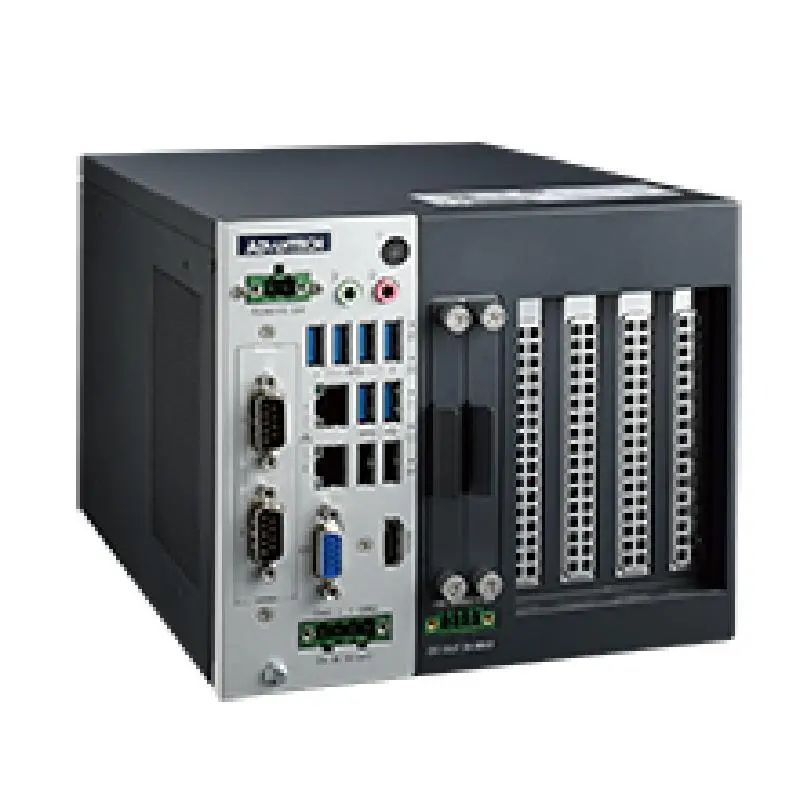

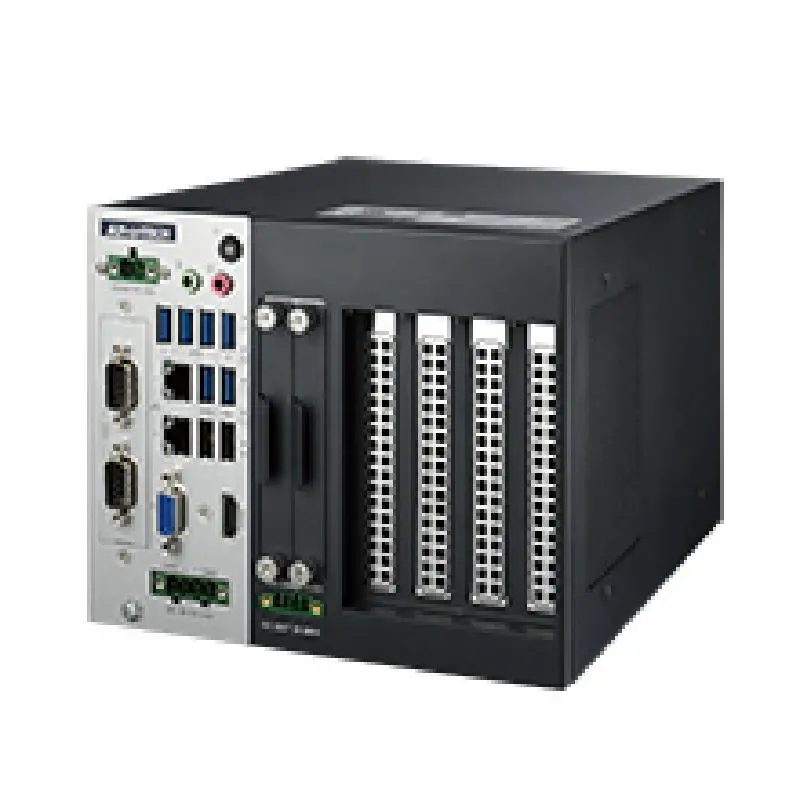

Advantech IPC-240 V1 Compact Industrial Computer System with 6th/7th Gen Intel® Core™ i CPU Socket (LGA 1151)
