Advantech AIIS-3411 Compact Vision System supports 10th Gen Intel® Core™ i CPU, 4-CH Lighting control and Isolated DIO, 4-CH Camera Interface for GigE PoE or USB 3.0

    Intel 10th generation Core i CPU (LGA1200)

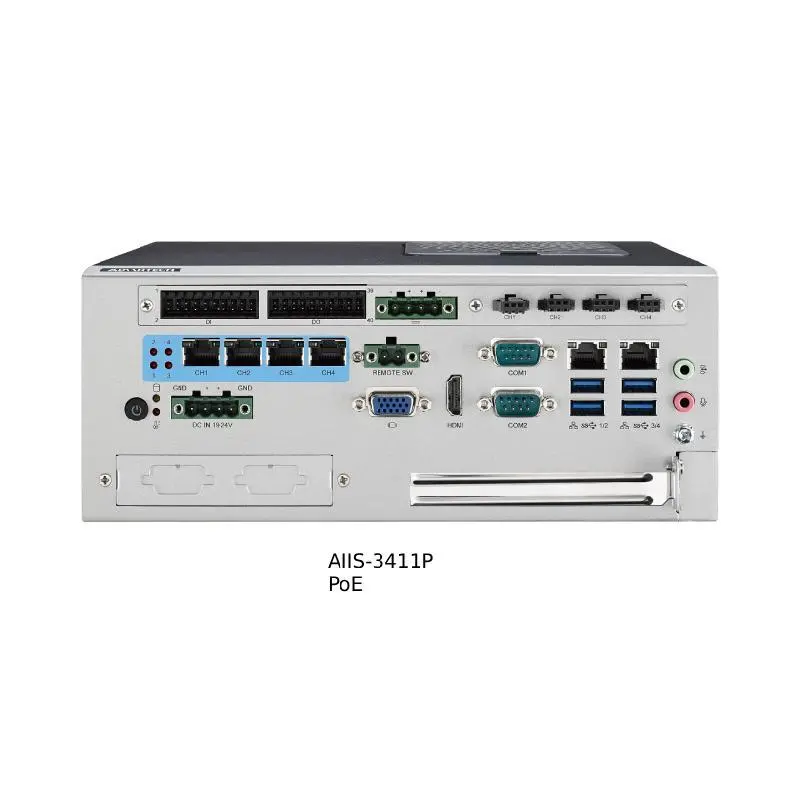

    AIIS-3411P: 4-CH GbE PoE (Power over Ethernet)

    ．Powered device auto detection and classification

    ．IEEE 802.3af compliant, supports IEEE 1588

    ．Compatible with GigE cameras

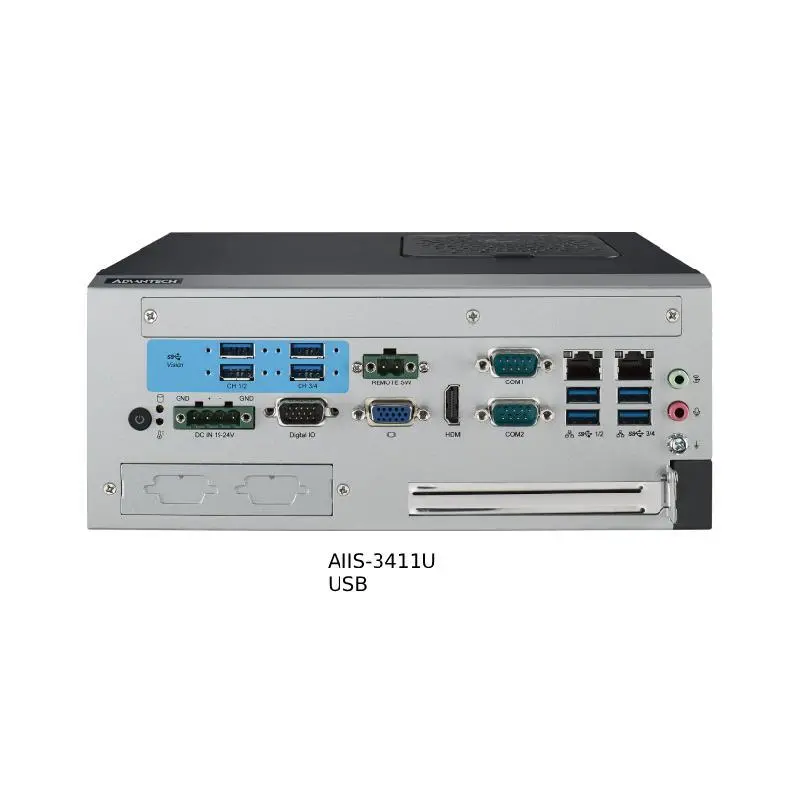

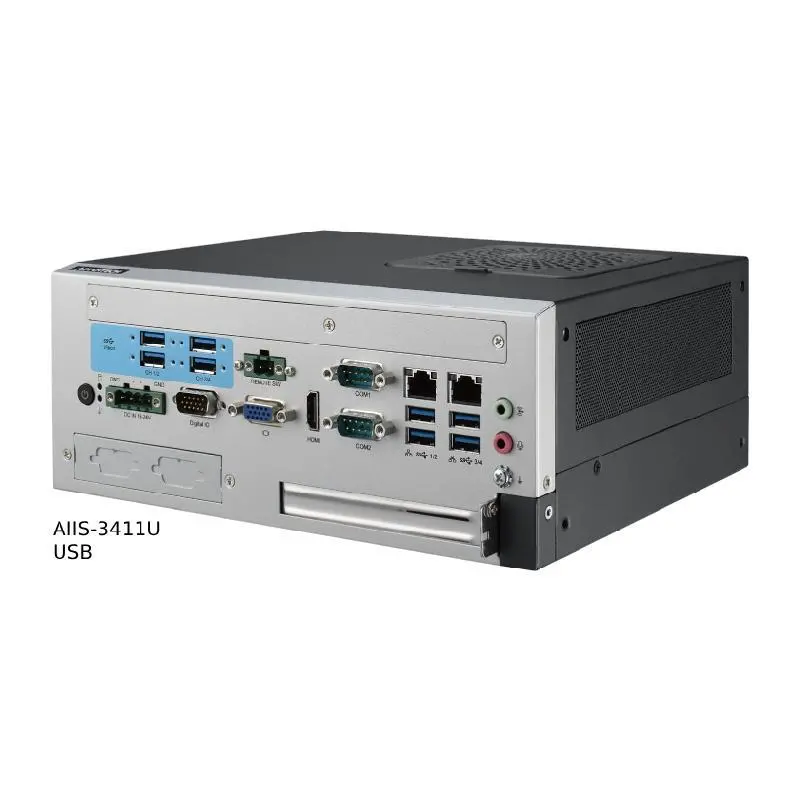

    AIIS-3411U: 4-CH USB 3.0 with dedicated controller

    ．Maximize the USB3.0 bandwidth for multi-cameras

    ．Compatible with USB 3.0 cameras

    Optional AIIS-1882 module for lighting control and isolated DIO

    ．Supports 4-ch lighting control output powered by internal 12VDC/1A per channel with trigger input or optional external power input 12~24VDC, 2A max.

    ．Programmable delay time, PWM high/low time and lighting output duration

    ．12-ch isolated digital input and 16-ch isolated digital output and 2,500 VDC isolation protection for all I/O signals

AIIS-3411P-00A1 AIIS-3411U-00A1
Processor System CPU 10th Gen Intel® Core™ Processors 10th Gen Intel® Core™ Processors
Processor System Socket 1 x LGA1200 1 x LGA1200
Processor System Core Number Up to 10 Up to 10
Processor System L3 Cache Up to 20 MB Up to 20 MB
Processor System Chipset Intel® H420E Intel® H420E
Processor System BIOS AMI 128 Mbit SPI Flash AMI 128 Mbit SPI Flash
Processor System Frequency Up to 3.8 GHz Up to 3.8 GHz
Memory Technology Dual-channel DDR4 2666/2933 MHz (non-ECC) Dual-channel DDR4 2666/2933 MHz (non-ECC)
Memory Max. Capacity 64 GB 64 GB
Memory Socket 2 x 260-pin DDR4 SO-DIMM 2 x 260-pin DDR4 SO-DIMM
Graphics Controller Intel® HD Graphics Intel® HD Graphics
Storage HDD 1 x 2.5" internal HDD/SSD bay 1 x 2.5" internal HDD/SSD bay
Storage mSATA 1 1
Expansion PCIe x16 1 1
Expansion Mini PCIe 1 1
Ethernet Speed 10/100/1000 Mbps 10/100/1000 Mbps
Ethernet Controller LAN1: Intel® I219-V, LAN 2: Intel® I210-AT LAN1: Intel® I219-V, LAN 2: Intel® I210-AT
Front I/O Interface Display 1 x VGA, 1 x HDMI 1 x VGA, 1 x HDMI
Front I/O Interface USB 4 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal) 4 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal)
Front I/O Interface COM 2 x RS-232/422/485 2 x RS-232/422/485
Front I/O Interface Audio 2 (Mic-in, Line-out) 2 (Mic-in, Line-out)
Camera Interface Technology PoE USB 3.0
Camera Interface Ports 4 4
Camera Interface Controller CH1~CH4: Intel® I210 CH1~CH4: uPD720202
WatchDog Timer Output System Reset System Reset
WatchDog Timer Interval Programmable 1 ~ 255 sec/min Programmable 1 ~ 255 sec/min
Power Supply Power Type ATX, AT ATX, AT
Power Supply Input Range 19 ~ 24 VDC 19 ~ 24 VDC
Environment Operating Temperature 0~50 °C (32~122 °F) 0~50 °C (32~122 °F)
Environment Non-Operational Temperature -40 ~ 70° C (-40 ~ 158° F) -40 ~ 70° C (-40 ~ 158° F)
Environment Operating Shock 10 G, half sine wave, 11 ms duration 10 G, half sine wave, 11 ms duration
Mechanical Dimension (W x H x D) 240 x 97 x 190 mm 240 x 97 x 190 mm
Mechanical Weight (Net) 2.56 kg (5.64 lb) 2.56 kg (5.64 lb)
Certification EMC CE/FCC Class A, CCC, BSMI, UL/CB CE/FCC Class A, CCC, BSMI, UL/CB
