| IPC-5120-35D | IPC-5120-25D | ||
| Cooling | Air Filter | Yes | Yes |
| Cooling | Fan | 1 (12 cm / 82 CFM) + 1 (4 cm / 11 CFM) | 1 (12 cm / 82 CFM) + 1 (4 cm / 11 CFM) |
| Environment | Operating Temperature | 0~45 °C (32~113 °F) | 0~45 °C (32~113 °F) |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Operating Vibration | 1 Grms | 1 Grms |
| Environment | Non-Operating Vibration | 2 G | 2 G |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Mechanical | Weight (Net) | 8 kg (17.6 lb) | 8 kg (17.6 lb) |
| Mechanical | Dimension (W x H x D) | 320 x 164 x 316.5 mm | 320 x 164 x 316.5 mm |
| Miscellaneous | LED Indicators | Power status and HDD activity | Power status and HDD activity |
| Miscellaneous | Control | Power switch and system reset button | Power switch and system reset button |
| Drive Bay | 5.25" External | 1 | 1 |
| Drive Bay | 3.5" External | 1 | 1 |
| Drive Bay | 3.5" Internal | 1 | 1 |
| Power Supply | Power Supply | 350W (Single) | 250W (Single) |

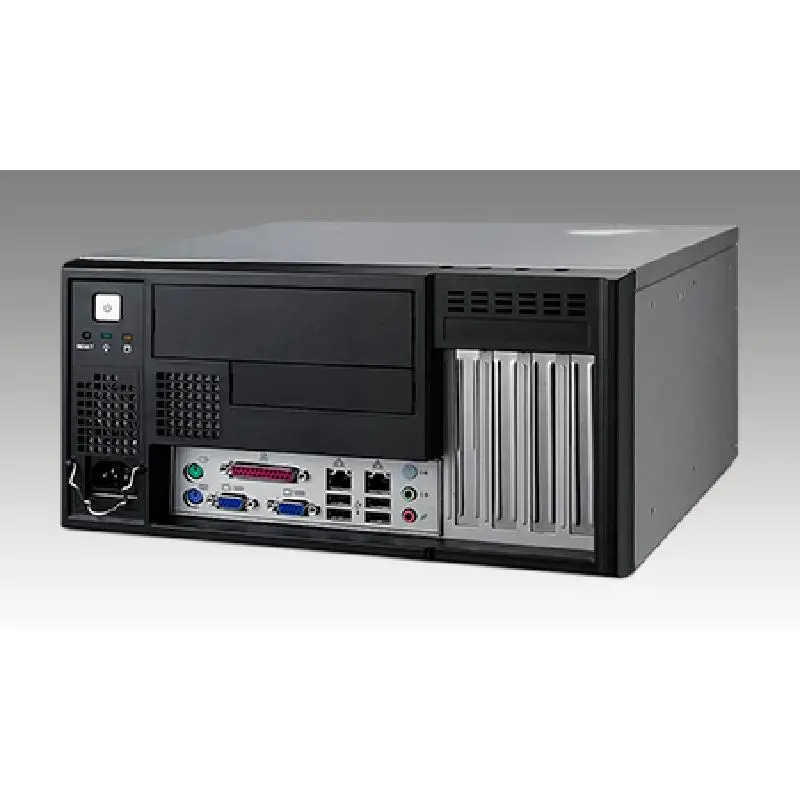

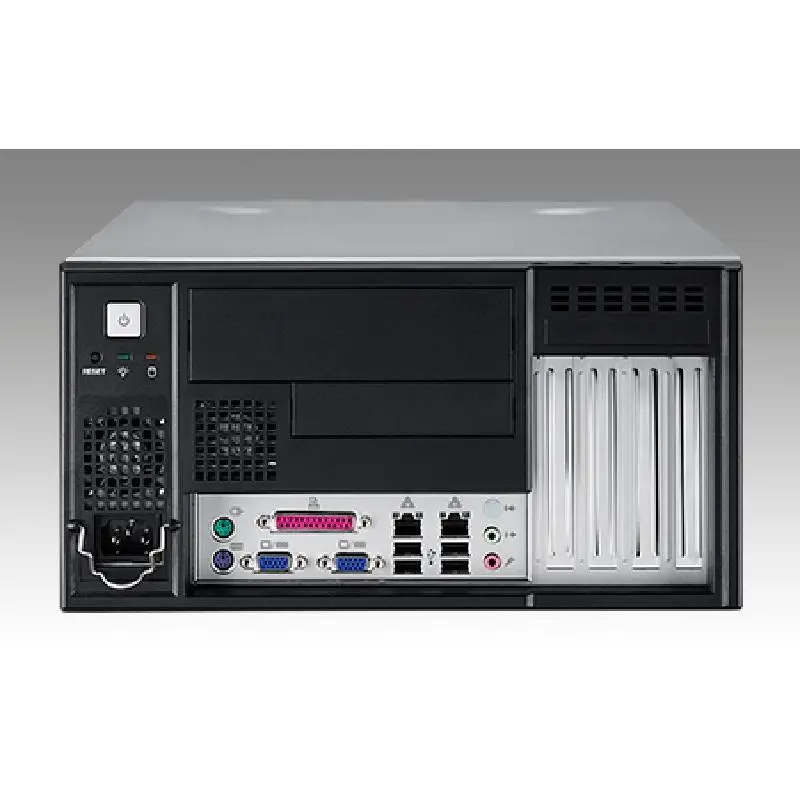

Advantech IPC-5120 Desktop/Wallmount Chassis with front I/O Interfaces for mATX Motherboard
