Advantech IPC-7130 Desktop/Wallmount Chassis for ATX/MicroATX Motherboard with Dual Hot-Swap 3.5" Drive Bays

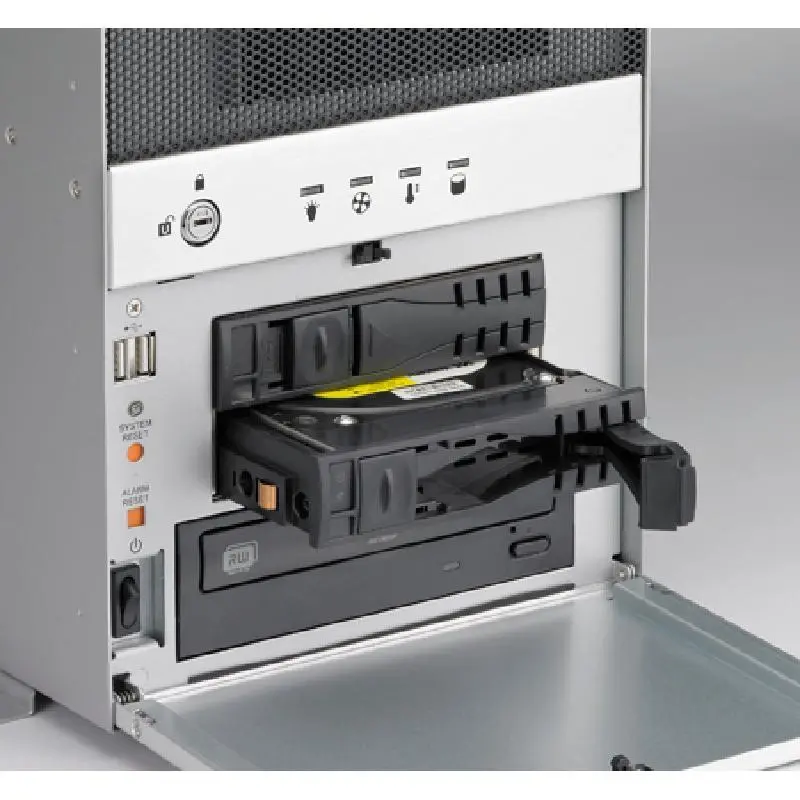

Shockproof drive bays - One 5.25", one internal 3.5", and two hot-swap 3.5" trays for IPC-7130 / two 3.5" HDD device trays for IPC-7130L

Lockable front door prevents unauthorized access

LED indicators for system fault detection

Bidirectional to mount chassis on the wall or workbench

Built-in Intelligent System Module enabling whole system fan control and Hardware Monitoring (IPC-7130)

Low noise PWM controlled

		IPC-7130-00B	IPC-7130-50B
Mechanical	Weight (Net)	12.8 kg (28.2 lb)	12.8 kg (28.2 lb)
Front I/O Interface	USB 2.0	10 D-sub openings supporting up to 10 COMs with optinal COM cables	10 D-sub openings supporting up to 10 COMs with optinal COM cables

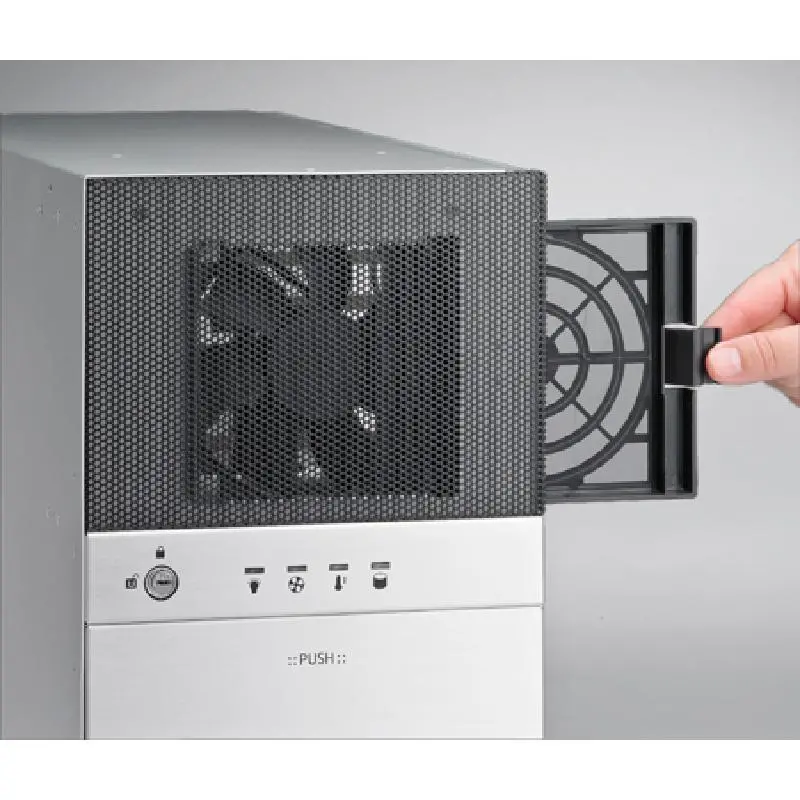

Cooling	Air Filter	Yes	Yes
Cooling	Fan	1 (12 cm / 82 CFM) + 1 (6 cm / 27.72 CFM)	1 (12 cm / 82 CFM) + 1 (6 cm / 27.72 CFM)
Environment	Operating Temperature	0~45 °C (32~113 °F)	0~45 °C (32~113 °F)
Environment	Non-Operational Temperature	-20 ~ 60° C (-4 ~ 140° F)	-20 ~ 60° C (-4 ~ 140° F)
Mechanical	Dimension (W x H x D)	200 x 320 x 480 mm (7.9" x 12.6" x 18.9")	200 x 320 x 480 mm (7.9" x 12.6" x 18.9")
Disk Drive Bay	5.25 External Bay	1	1
Disk Drive Bay	Hot-swap	2	2
Miscellaneous	LED Indicators	Power, HDD, temperature, fan	Power, HDD, temperature, fan
Miscellaneous	Front Panel	Power, HDD, Temp, Fan	Power, HDD, Temp, Fan
Power Supply	Power Supply	-	500W (Single)
