| IPC-7132MB-30B | IPC-7132MB-50B | ||
| Form Factor | Form Factor | ATX | ATX |
| Front I/O Interface | USB 2.0 | 10 D-sub openings supporting up to 10 COMs with optinal COM cables | 10 D-sub openings supporting up to 10 COMs with optinal COM cables |

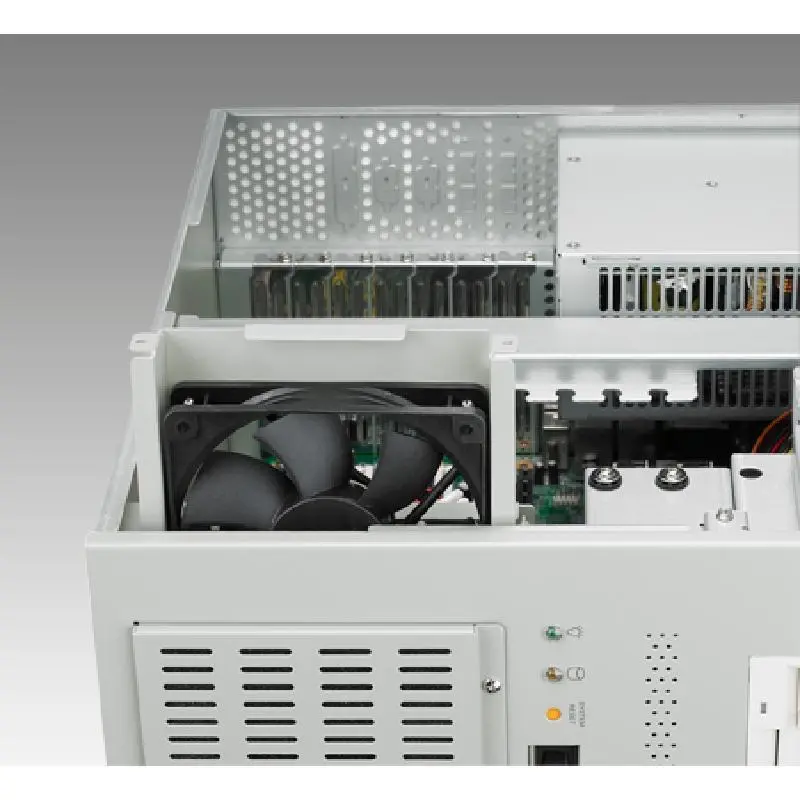

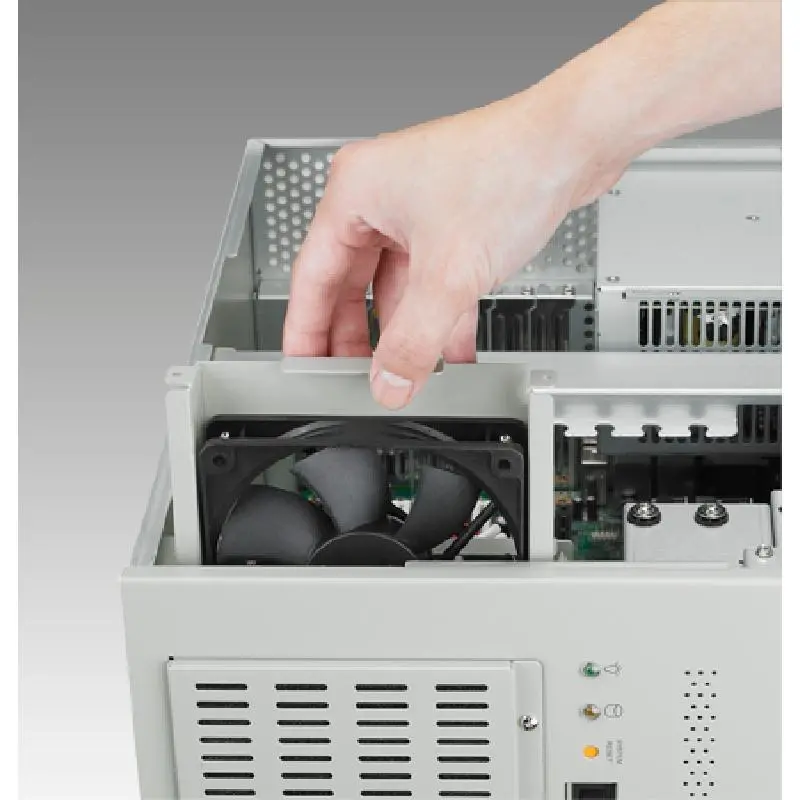

| Cooling | System Fan | 1 (12 cm , 82 CFM) | 1 (12 cm , 82 CFM) |
| Cooling | Air Filter | Yes | Yes |
| Environment | Operating Temperature | 0~45 °C (32~113 °F) | 0~45 °C (32~113 °F) |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Operating Shock | 10 G (with 11 ms duration, half sine wave) | 10 G (with 11 ms duration, half sine wave) |
| Environment | Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Operating Vibration (5 ~ 500 Hz) | 1 Grms | 1 Grms |
| Environment | Non-Operating Vibration (5 ~ 500 Hz) | 2 G | 2 G |
| Mechanical | Weight (Net) | 9.96 kg (21.93 lb) | 9.96 kg (21.93 lb) |
| Mechanical | Dimension (W x H x D) | 200 x 330 x 430 mm (7.9" x 13" x 16.9") | 200 x 330 x 430 mm (7.9" x 13" x 16.9") |
| Disk Drive Bay | 3.5" Front-Accessible | 1 | 1 |
| Disk Drive Bay | 3.5" Internal | 2 | 2 |
| Miscellaneous | LED Indicators | Power, HDD | Power, HDD |
| Miscellaneous | Control | Power Switch, System reset | Power Switch, System reset |
| Power Supply | Power Supply | 300W (Single) | 500W (Single) |

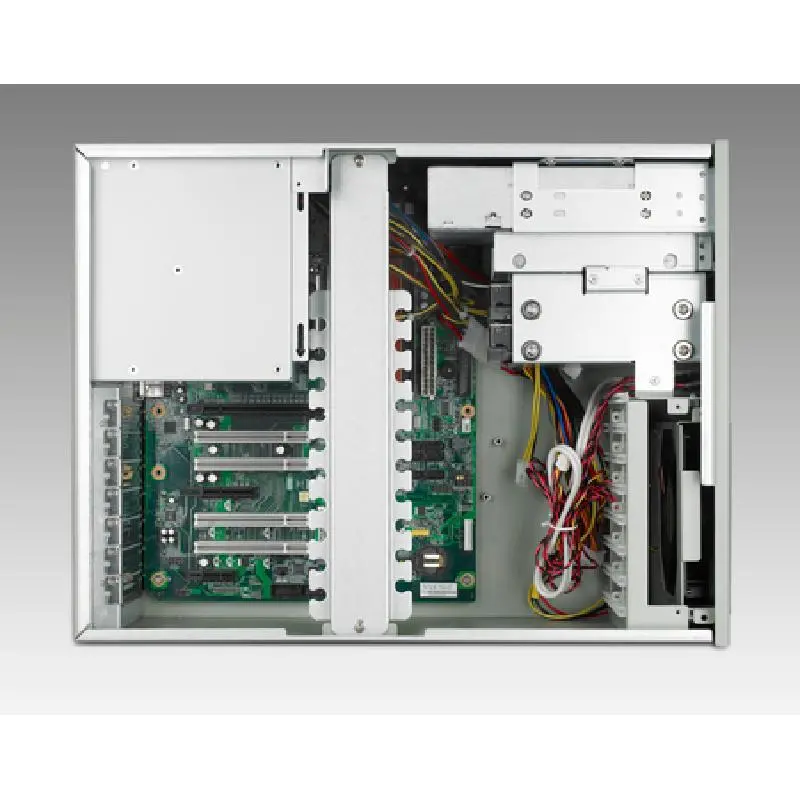

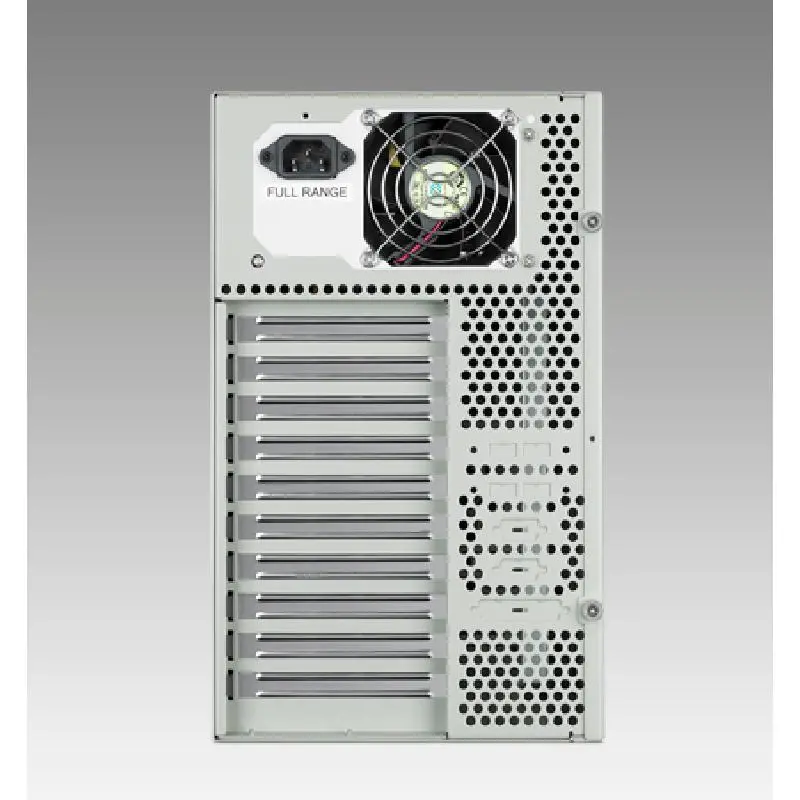

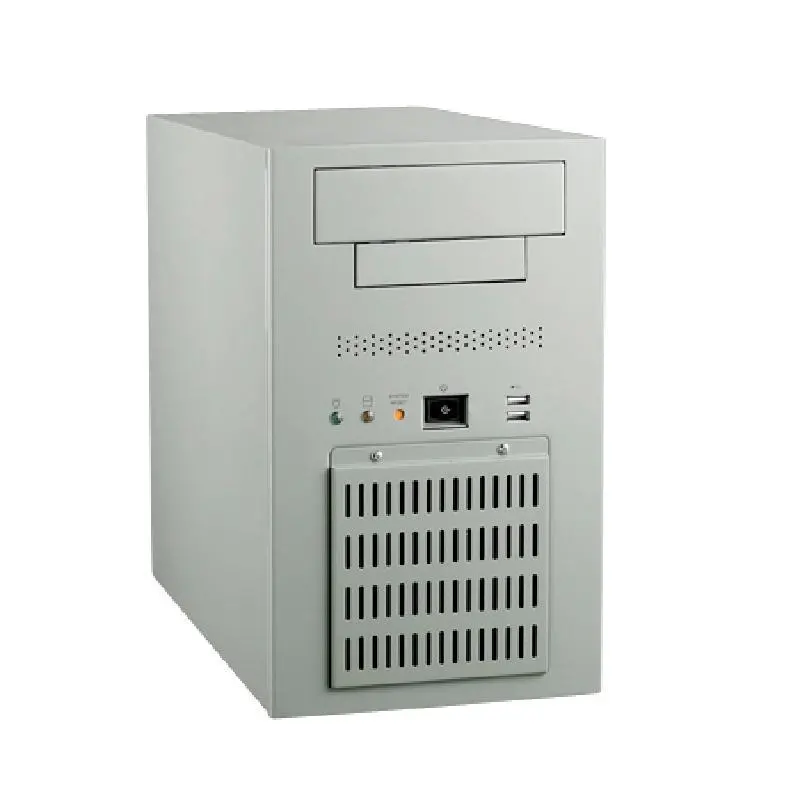

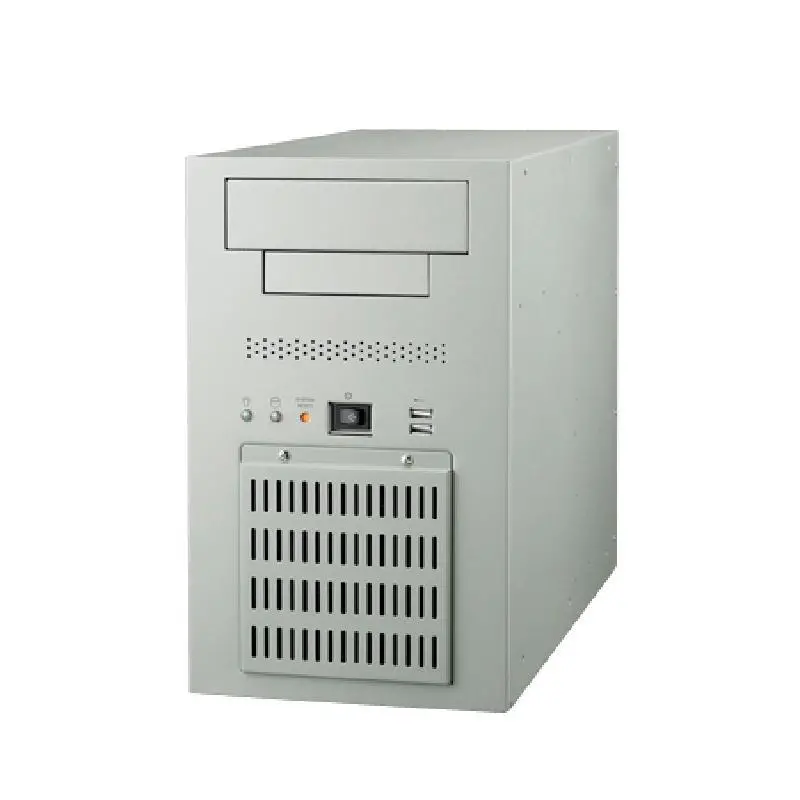

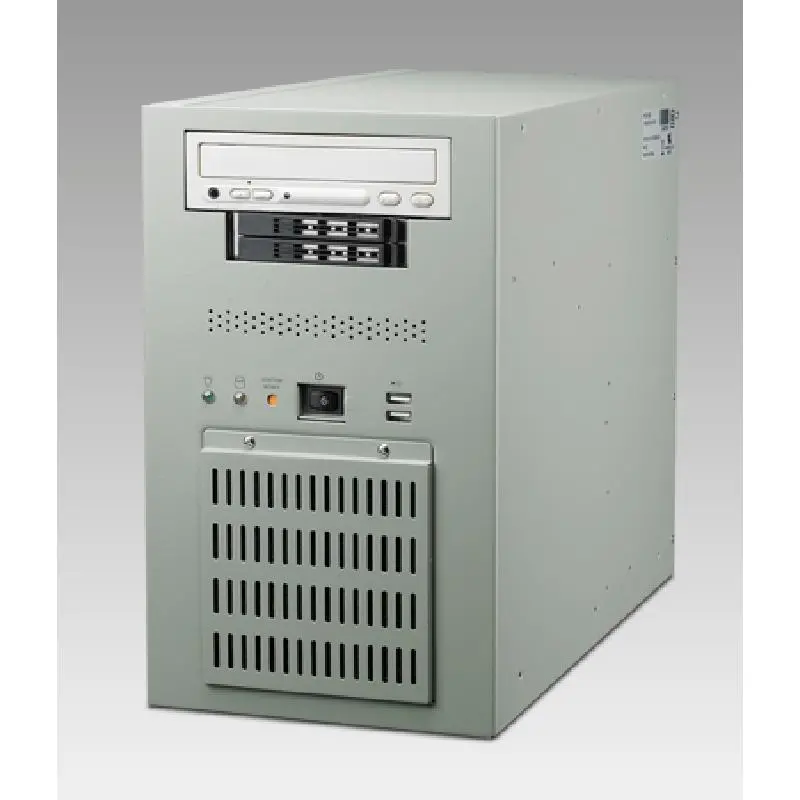

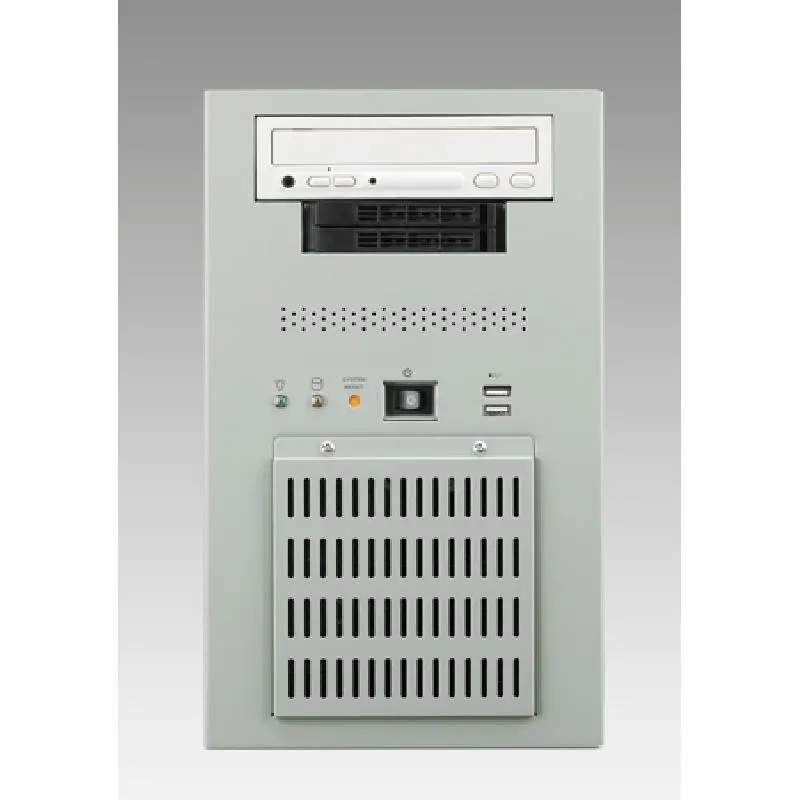

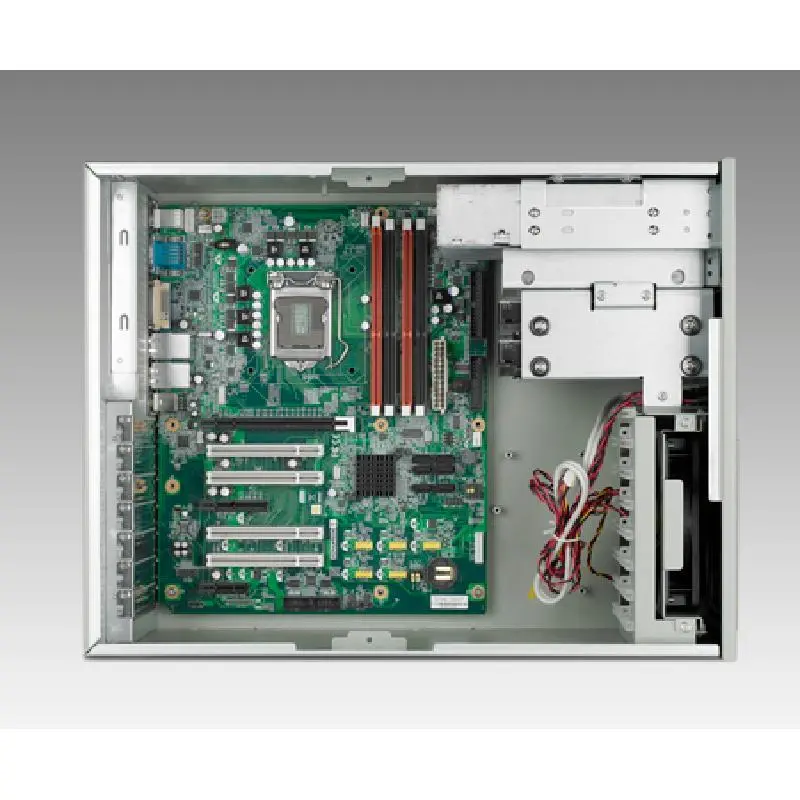

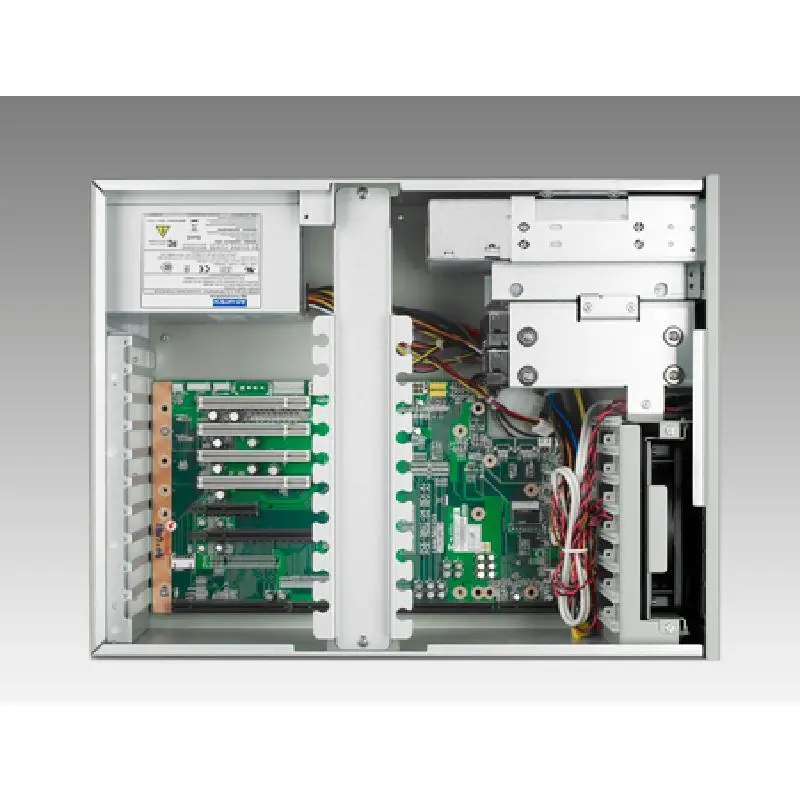

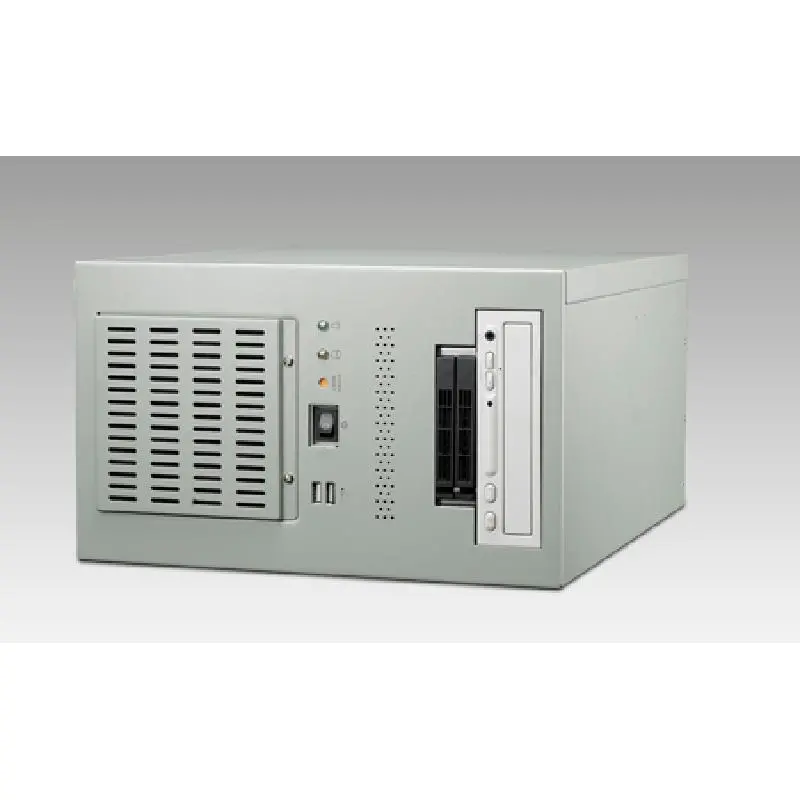

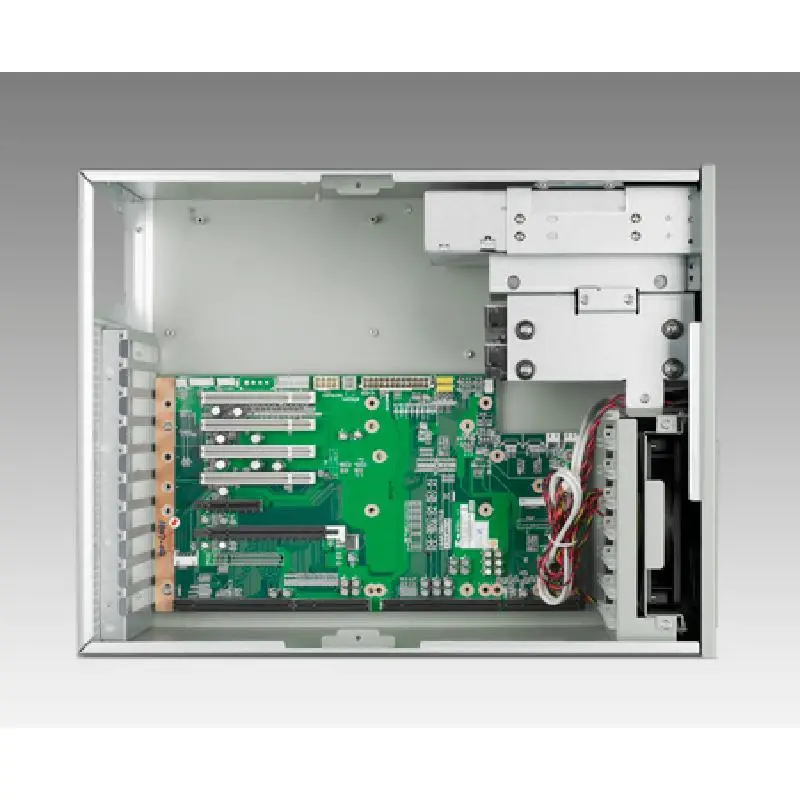

Advantech IPC-7132 Cost-effective Wallmount Chassis for ATX/mATX Motherboard and 10-slot Backplane
