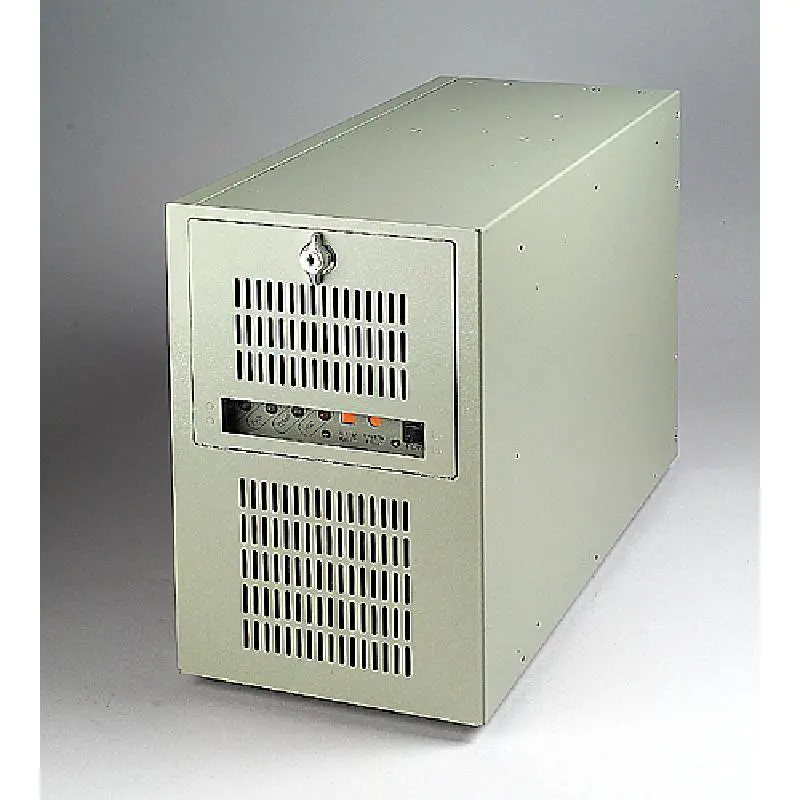

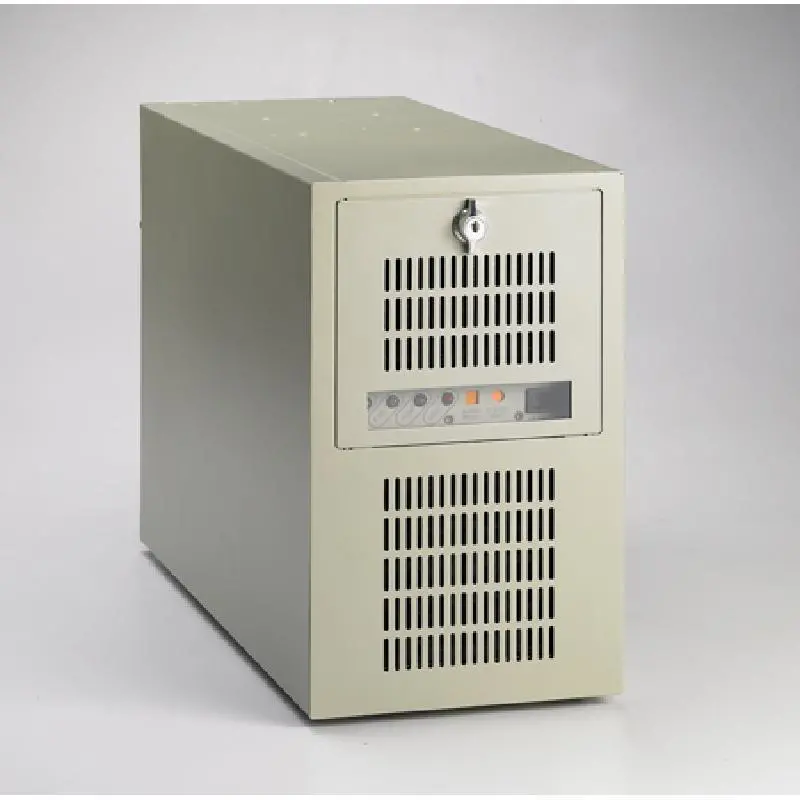

Advantech IPC-7220 Desktop/wallmount Chassis for ATX/mATX Motherboard

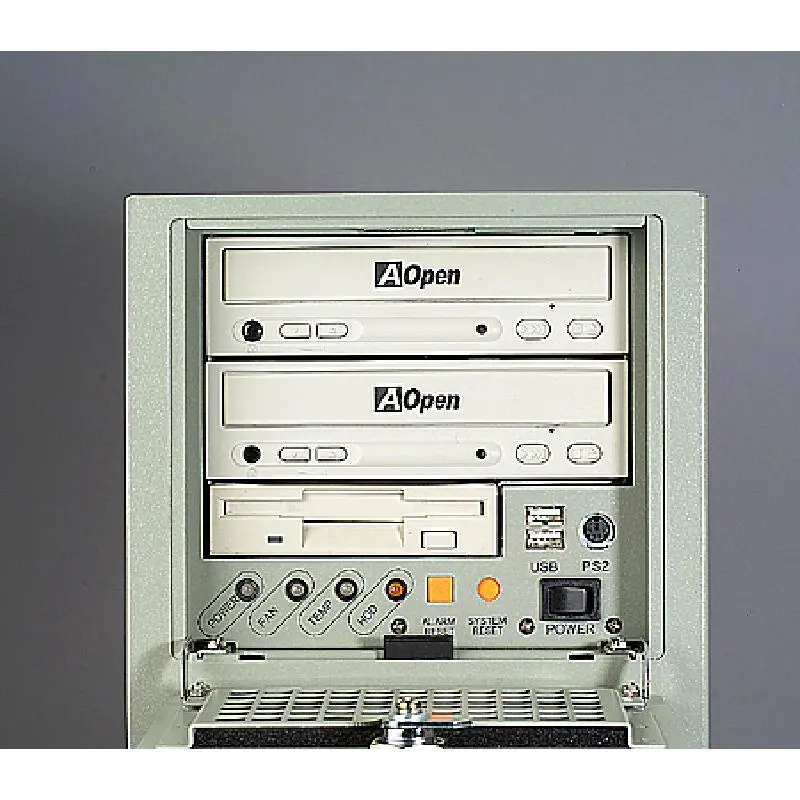

Two 5.25" and two 3.5" shock-resistant drive bays

Lockable front door to prevent unauthorized access

LED indicators and alarm notification for system fault detection

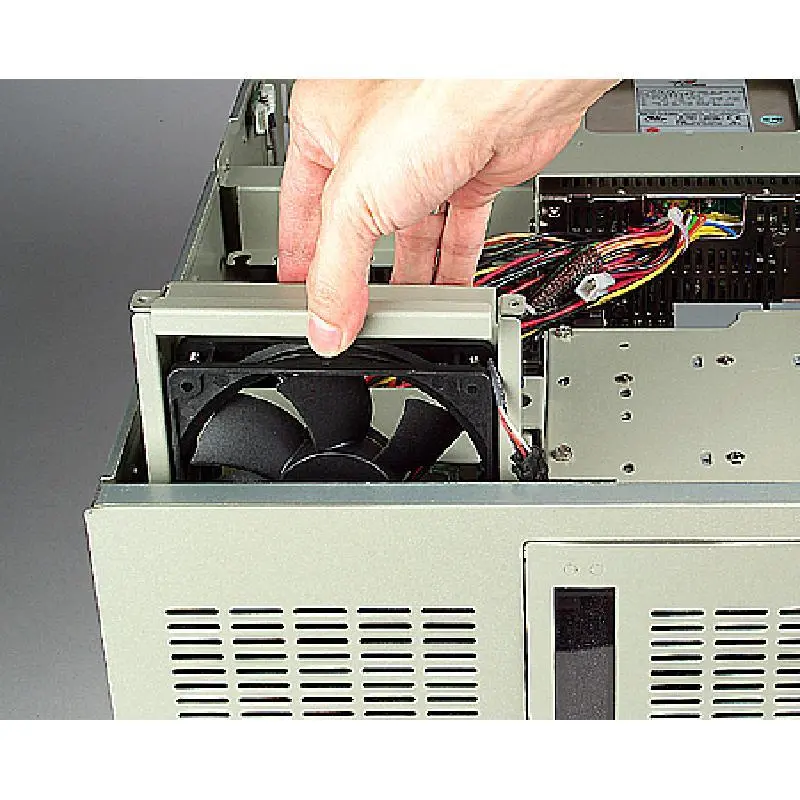

Easy-to-maintain system fan and air filter

Low noise PWM controlled

Built-in Intelligent System Module enables whole system fan control and remote manageability

		IPC-7220-30C	IPC-7220-50C
Front I/O Interface	PS/2	2 (1 x Keyboard, 1 x Mouse)	2 (1 x Keyboard, 1 x Mouse)
Front I/O Interface	USB	2	2
Cooling	Air Filter	Yes	Yes
Cooling	Fan	1(12cm / 82CFM)	1(12cm / 82CFM)
Environment	Operating Temperature	0~45 °C (32~113 °F)	0~45 °C (32~113 °F)
Environment	Non-Operational Temperature	-20 ~ 60° C (-4 ~ 140° F)	-20 ~ 60° C (-4 ~ 140° F)
Environment	Operating Shock	10 G (with 11 ms duration, half sine wave)	10 G (with 11 ms duration, half sine wave)
Environment	Operating Humidity	10 ~ 85% @ 40° C, non-condensing	10 ~ 85% @ 40° C, non-condensing
Environment	Non-Operating Humidity	10 ~ 95% @ 40° C, non-condensing	10 ~ 95% @ 40° C, non-condensing
Environment	Operating Vibration (5 ~ 500 Hz)	1 Grms	1 Grms
Environment	Non-Operating Vibration (5 ~ 500 Hz)	2 G	2 G
Mechanical	Weight (Net)	14 kg (30.8 lb)	14 kg (30.8 lb)
Mechanical	Dimension (W x H x D)	200 x 320 x 480 mm (7.9" x 12.6" x 18.9")	200 x 320 x 480 mm (7.9" x 12.6" x 18.9")
Disk Drive Bay	5.25" Front-Accessible	2	2
Miscellaneous	LED Indicators	Power, HDD, temperature, fan	Power, HDD, temperature, fan
Miscellaneous	Control	Power Switch, System reset, Alarm reset	Power Switch, System reset, Alarm reset

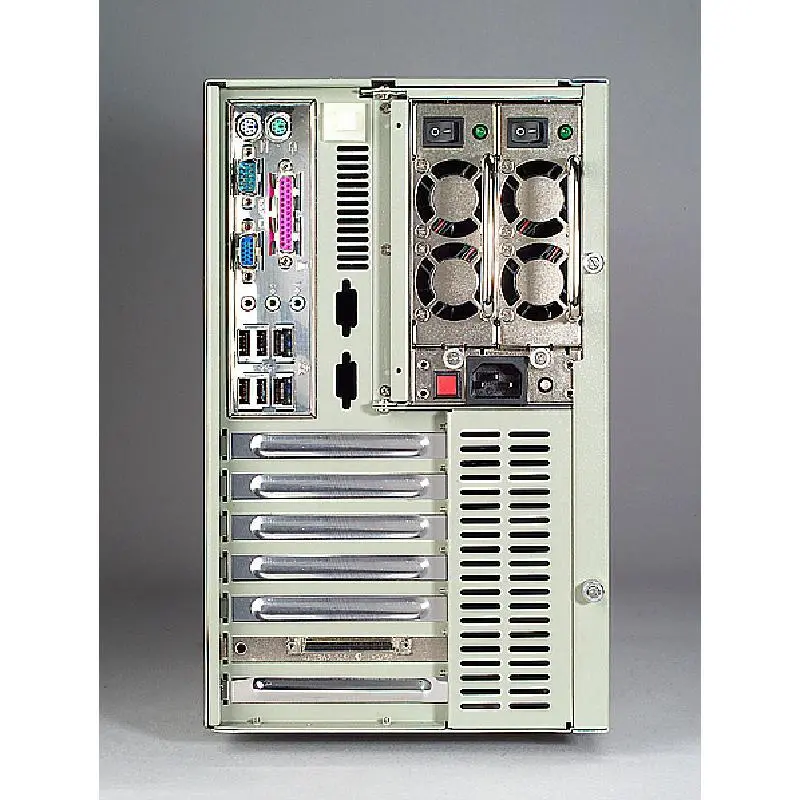

Miscellaneous	Rear Panel	Reserved Two 9-pin D-Sub openings, one LPT opening	Reserved Two 9-pin D-Sub openings, one LPT opening
Power Supply	Power Supply	300W (Single)	500W (Single)
