| IPC-6606BP-00D | IPC-6606BP-30D | ||
| Form Factor | Form Factor | PICMG 1.0/1.3 | PICMG 1.0/1.3 |
| Front I/O Interface | USB 2.0 | 10 D-sub openings supporting up to 10 COMs with optinal COM cables | 10 D-sub openings supporting up to 10 COMs with optinal COM cables |
| Cooling | System Fan | 1 (9 cm / 51.5 CFM) | 1 (9 cm / 51.5 CFM) |
| Cooling | Air Filter | Yes | Yes |
| Environment | Operating Temperature | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) | 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) |
| Mechanical | Weight (Net) | 9 kg ( 19.8 lb ) | 9 kg ( 19.8 lb ) |
| Miscellaneous | LED Indicators | Power, HDD | Power, HDD |
| Miscellaneous | Control | Power Switch, System reset | Power Switch, System reset |
| Drive Bay | 5.25" | 1 | 1 |
| Drive Bay | External 3.5" | 1 | 1 |
| Drive Bay | Internal 3.5" | 1 | 1 |
| Backplane | PICMG 1.0/1.3 full size | NA | NA |
| Power Supply | Power Supply | - | 300W (Single) |

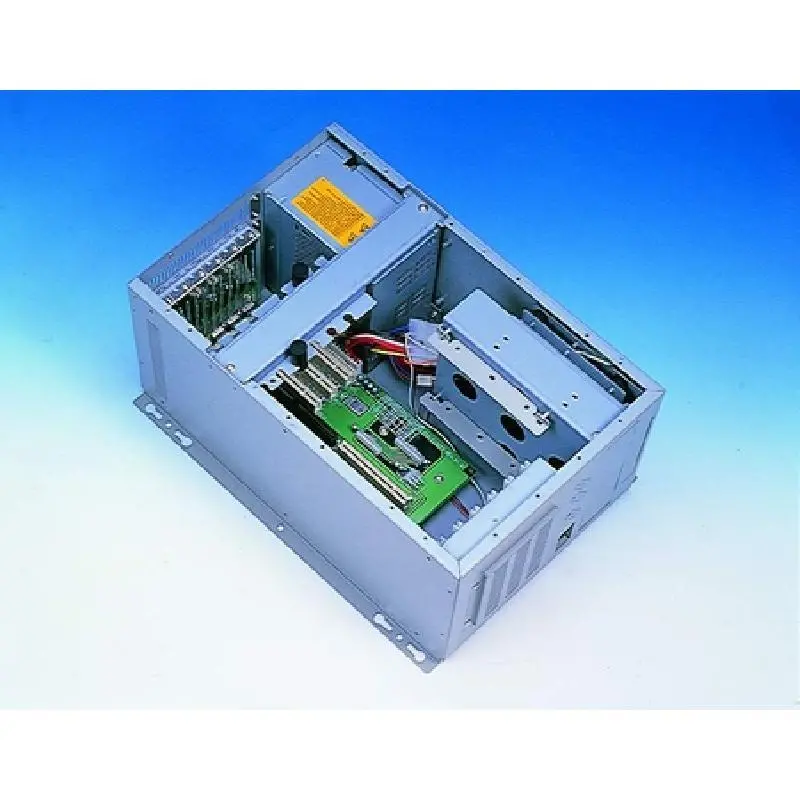

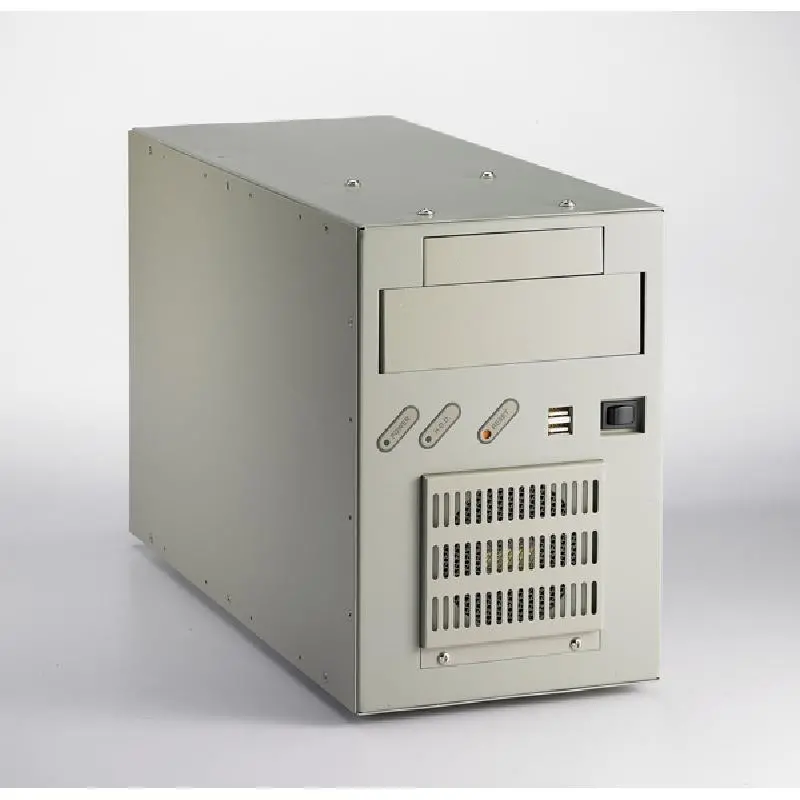

Advantech IPC-6606 6-slot desktop/Wallmount chassis
