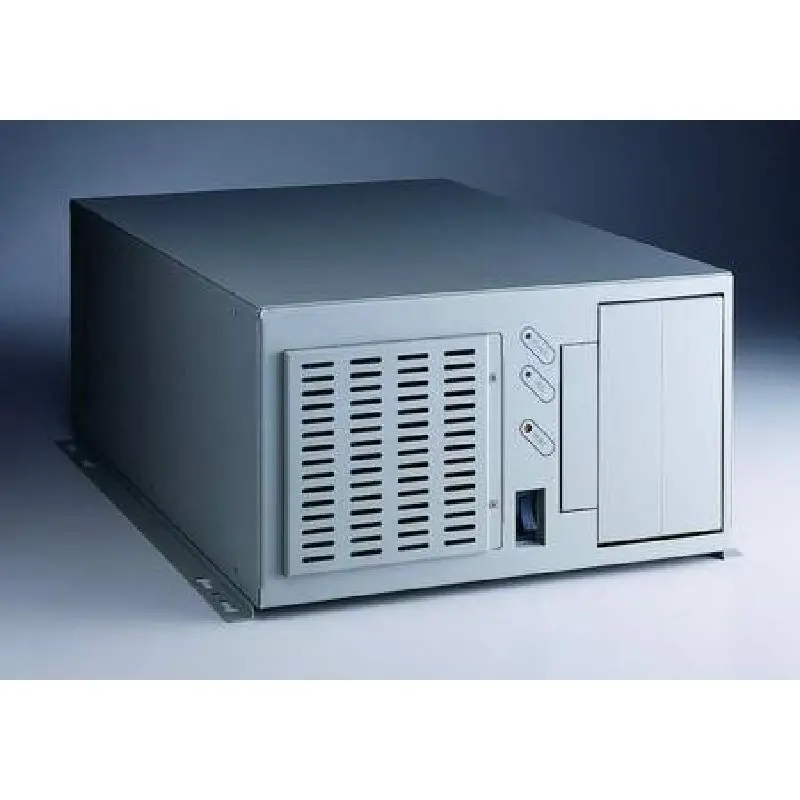

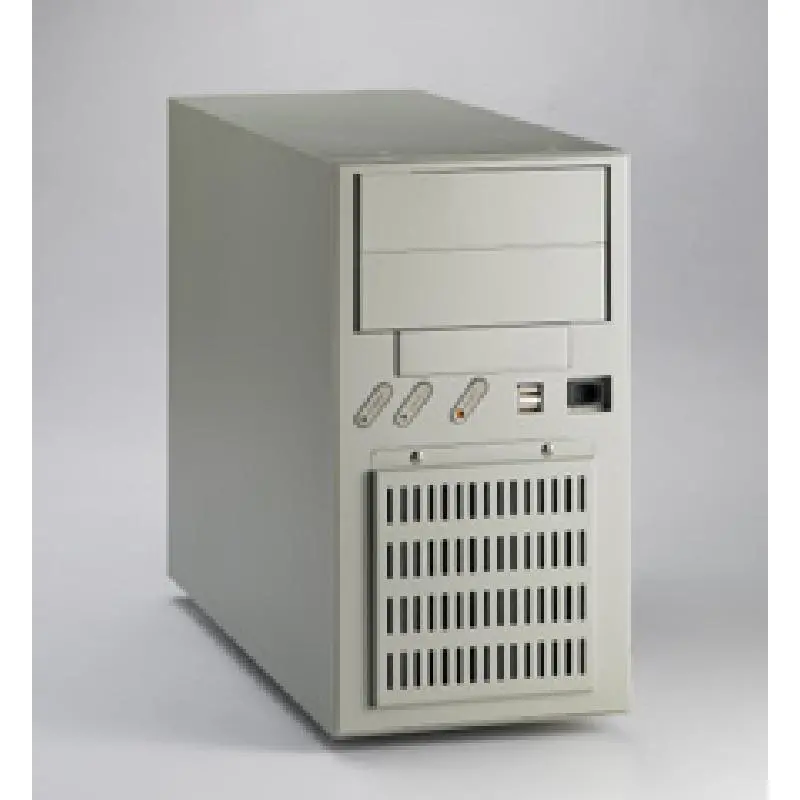

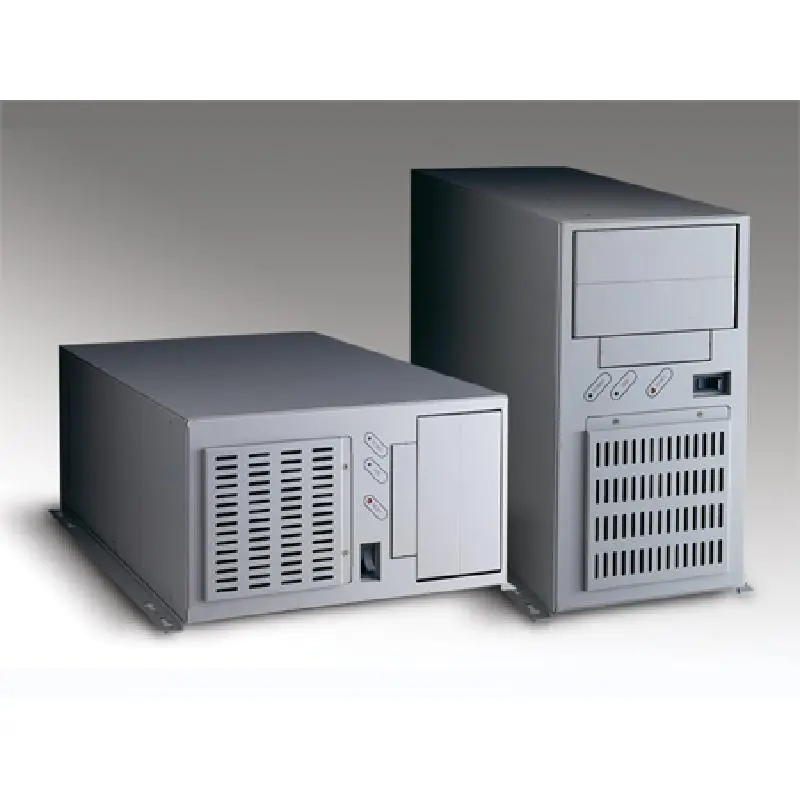

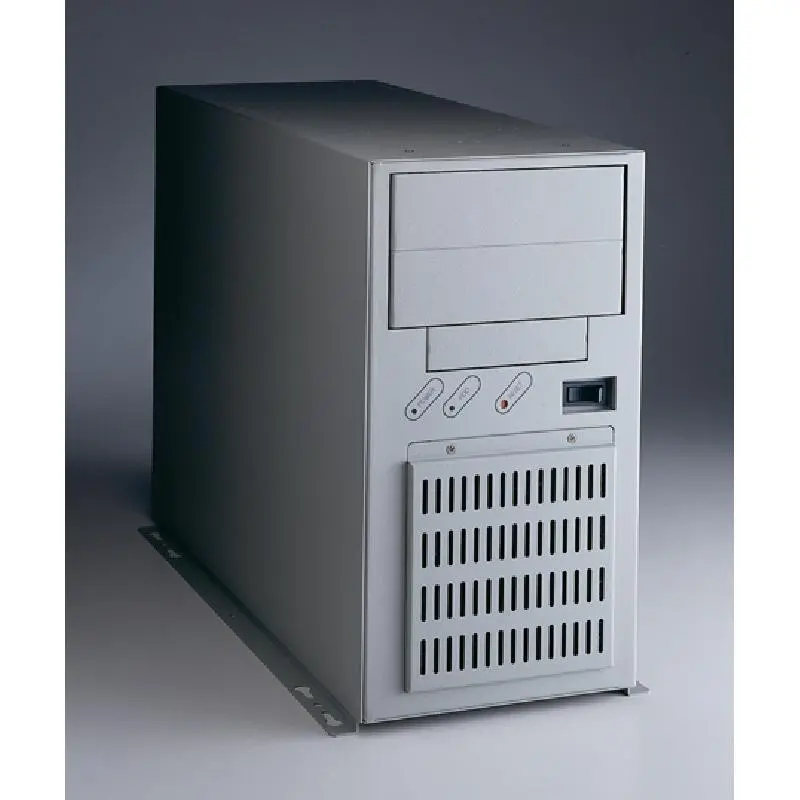

Advantech IPC-6608 8-Slot Desktop/Wallmount Chassis with PS/2 or Redundant Power Supply

Bidirectional options to mount the chassis on the wall or workbench

Supports versatile 6/8-slot backplanes to hold 6/8 full-size cards

One/two front-accessible 5.25" disk drives and one 3.5" FDD

High-speed cooling fan supports abundant cooling and streamlined ventilation

Shockproof and anti-vibration drive bay design for industrial applications

Two front-accessible USB ports

		IPC-6608BP-00D	IPC-6608BP-30D
Form Factor	Form Factor	PICMG 1.0/1.3	PICMG 1.0/1.3
Front I/O Interface	USB 2.0	10 D-sub openings supporting up to 10 COMs with optinal COM cables	10 D-sub openings supporting up to 10 COMs with optinal COM cables
Cooling	System Fan	1 (12 cm , 82 CFM)	1 (12 cm , 82 CFM)
Cooling	Air Filter	Yes	Yes
Mechanical	Weight (Net)	11 kg ( 24.2 lb)	11 kg ( 24.2 lb)
Mechanical	Dimension (W x H x D)	173 x 315 x 410 mm ( 6.8" x 12.4" x 16.1" )	173 x 315 x 410 mm ( 6.8" x 12.4" x 16.1" )
Miscellaneous	LED Indicators	Power, HDD	Power, HDD
Miscellaneous	Control	Power Switch, System reset	Power Switch, System reset
Drive Bay	5.25"	2	2
Drive Bay	External 3.5"	1	1
Power Supply	Power Supply	-	300W (Single)
