| IPC-6806-25F | IPC-6806S-25F | IPC-6806W-35F | ||
| Form Factor | CPU Card Form Factor | Full-Sized | Half-sized | Full-Sized |
| Front I/O Interface | USB 2.0 | 10 D-sub openings supporting up to 10 COMs with optinal COM cables | 10 D-sub openings supporting up to 10 COMs with optinal COM cables | 10 D-sub openings supporting up to 10 COMs with optinal COM cables |
| Cooling | Air Filter | Yes | Yes | Yes |
| Cooling | Fan | 1 (9 cm / 51.5 CFM) | 1 (9 cm / 51.5 CFM) | 1 (9cm / 58 CFM) |
| Environment | Operating Temperature | 0~45 °C (32~113 °F) | 0~45 °C (32~113 °F) | 0~45 °C (32~113 °F) |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Non-Operating Vibration | 2 G | 2 G | 2 G |
| Environment | Operating Humidity | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operating Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Vibration (5 ~ 500 Hz) | 0.5 Grms | 0.5 Grms | 0.5 Grms |
| Mechanical | Weight (Net) | 6.3 kg (13.9 lb) | 5.6 kg (12.3 lb) | 8 kg (17.6 lb) |
| Mechanical | Dimension (W x H x D) | 166 x 178 x 398 mm | 191 x 178 x 290 mm | 198 x 221 x 398 mm |
| Miscellaneous | LED Indicators | Power, HDD | Power, HDD | Power, HDD |
| Miscellaneous | Control | Power Switch, System reset | Power Switch, System reset | Power Switch, System reset |
| Drive Bay | External 3.5" | 1 | 1 | 1 |
| Drive Bay | Internal 3.5" | 1 | 1 | 1 |
| Power Supply | Power Supply | 250W (Single) | 250W (Single) | 350W (Single) |

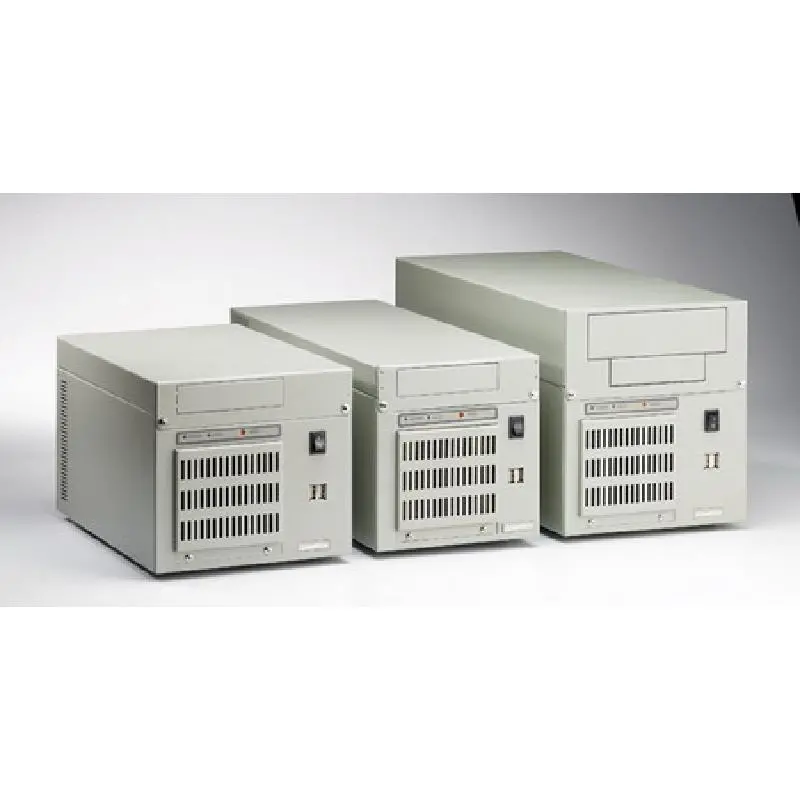

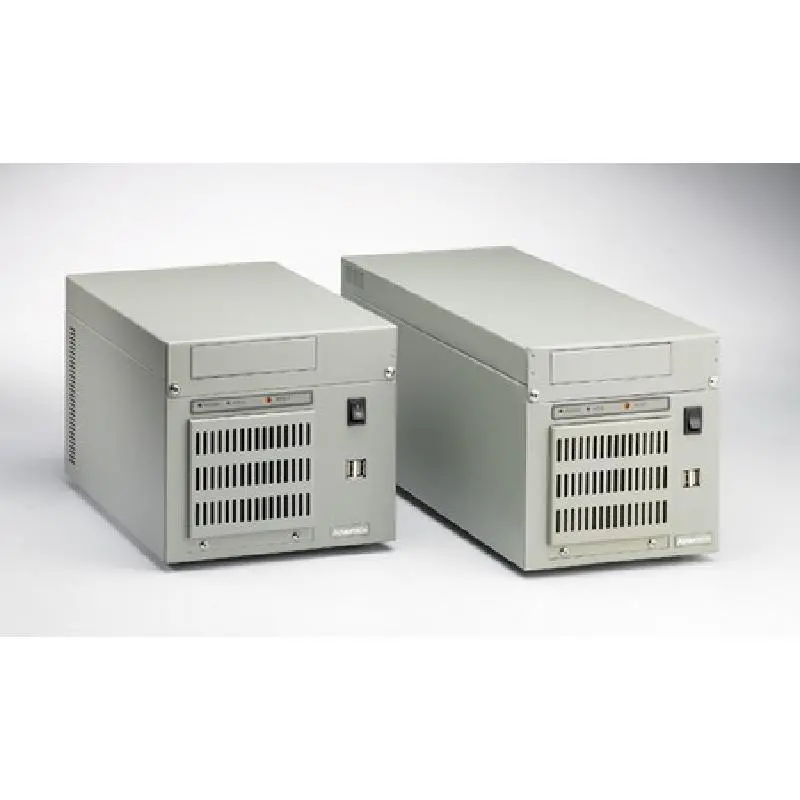

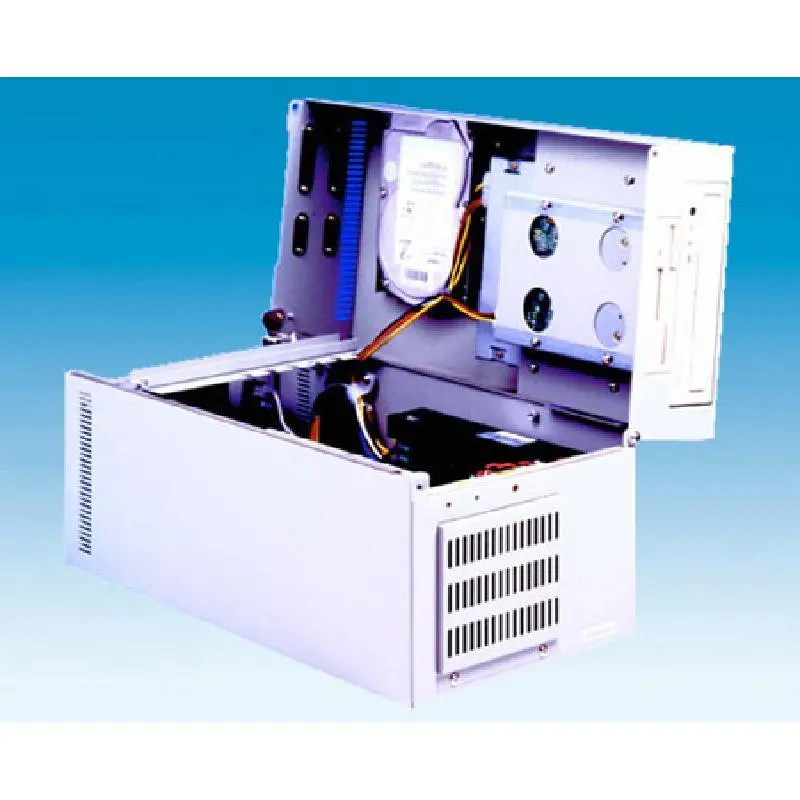

Advantech IPC-6806 6-Slot Desktop/Wallmount Chassis for Full/Half-Size SBC
