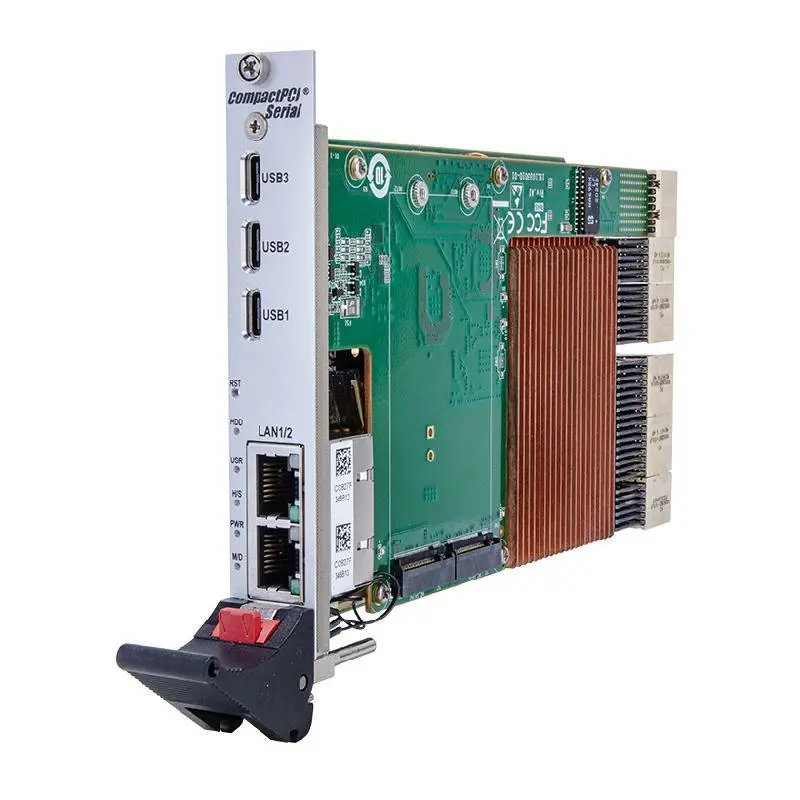

Advantech MIC-330V2 3U CompactPCI® Serial Intel® 11th Gen. Processor Blade

Intel® 11th Gen. XEON/Core processor with RM590E PCH

Up to 64GB DDR4 by two channels, with ECC or Non-ECC options

Up to 3 10Gbps USB Type-C, 2 in 3 DisplayPort Alternate Mode enabled, and 2 2.5Gbps RJ45 Ethernet ports on front panel

Up to 2 M.2 sockets for SATA 3.0 SSD module on MIC-330V2 with Mezzanine-1 card

Reserved 1 M.2 sockets for SATA 3.0 SSD module, Fe-RAM function, and super cap. on MIC-330V2 with Mezzanine-2 card

Designed to meet EN50121-4, EN50121-3-2 and EN50155

PICMG CompactPCI Serial(CPCI-S.0 R2.0) compliant
