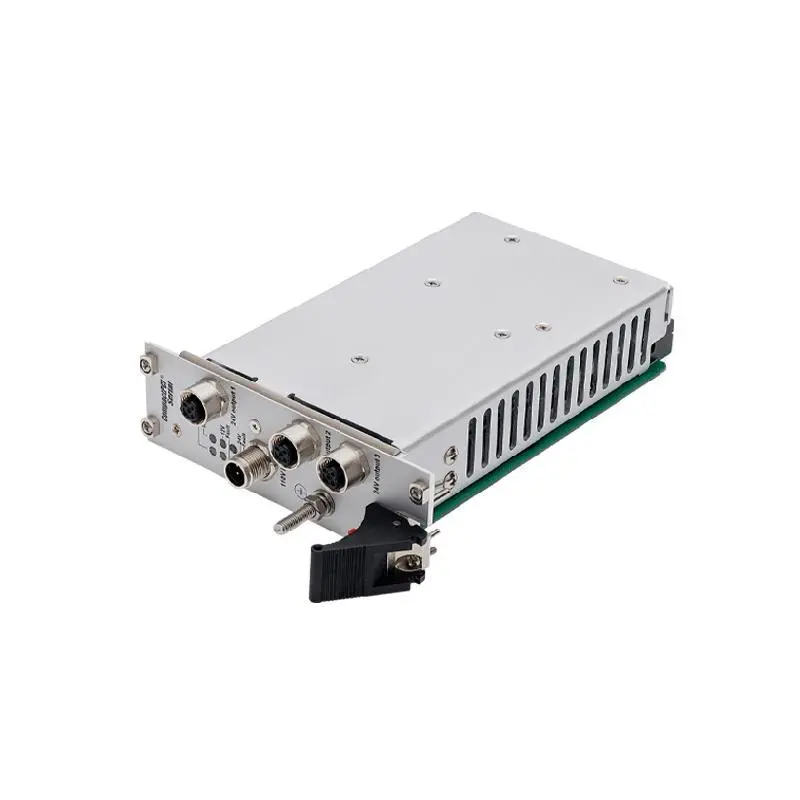

Advantech MIC-3890V2 The MIC-3890V2 series are 3U/8HP CompactPCI® Serial power supplies offering 300W and PMBus for monitoring voltage, current, and temperature.

3U x 8HP CPCI serial form factor

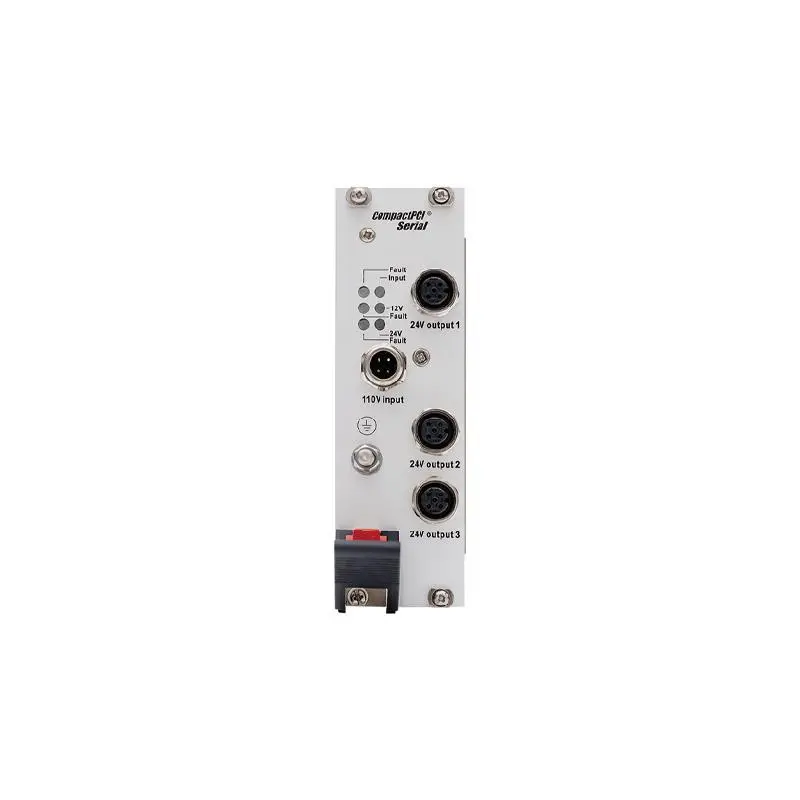

Front panel has a 1x 110V input via an M12 male connector, 3 x 24V outputs via M12 female connectors, and 1 x 12V output to the backplane

Wide operating temperature -40°C to +70 °C

N+1 redundancy, hot-swappable

PMBus communication

Wide input 66-160VDC

85% Plus efficiency

Meets EN50155 class S2 & C2 compliance
