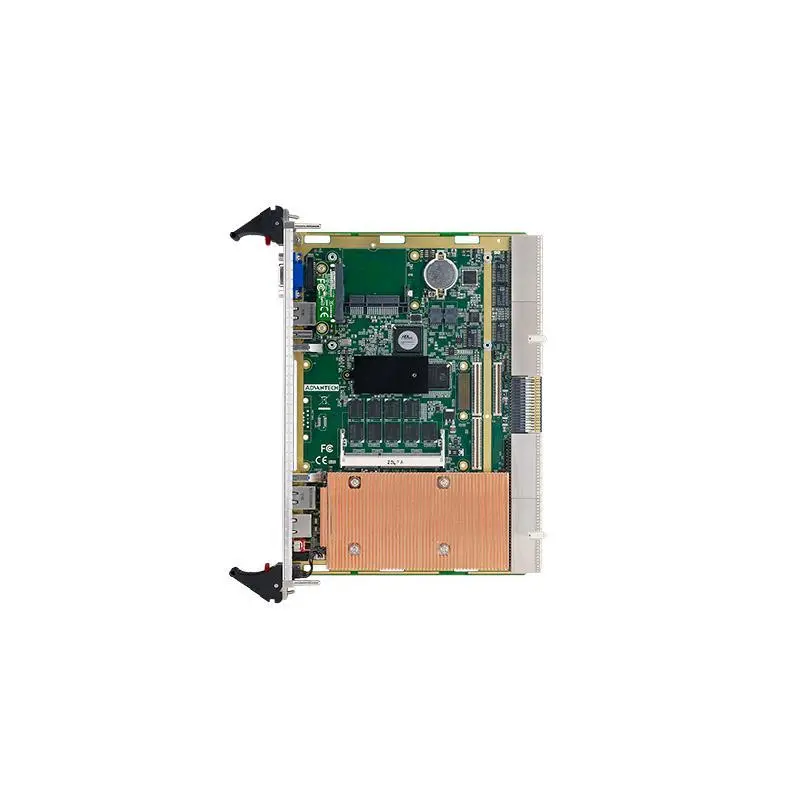

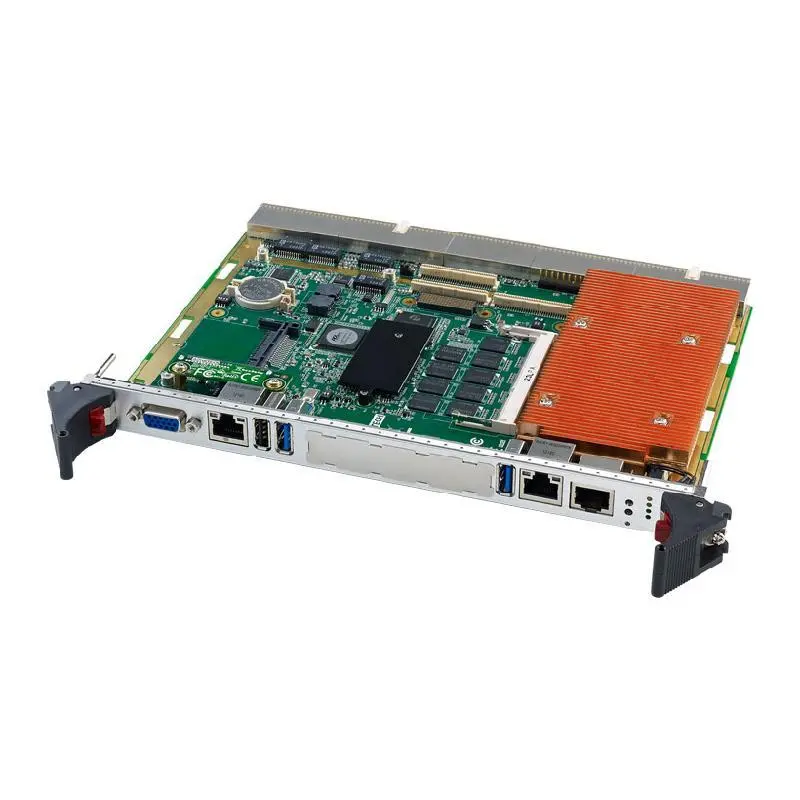

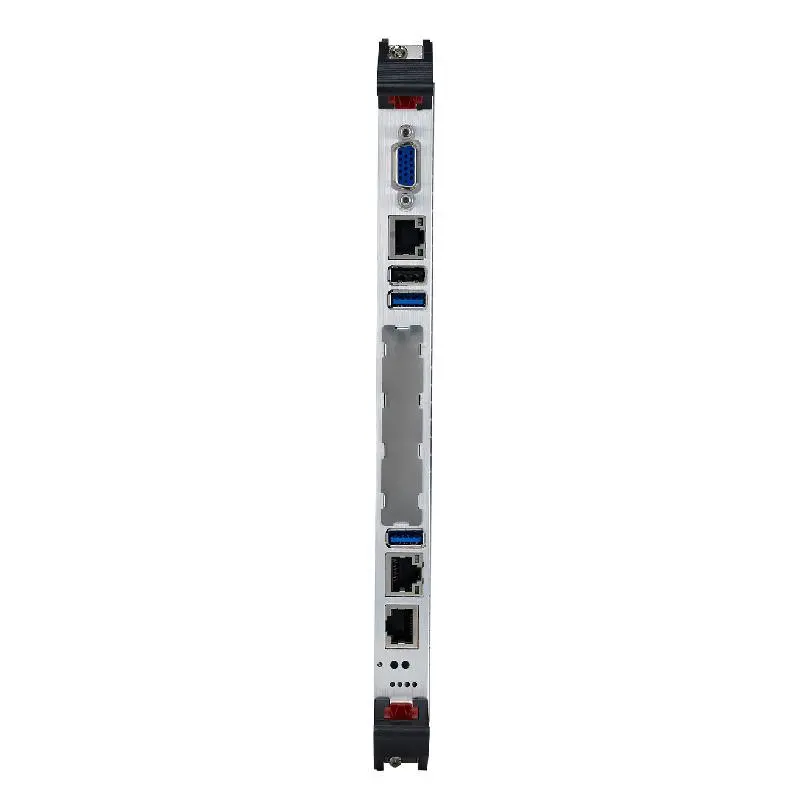

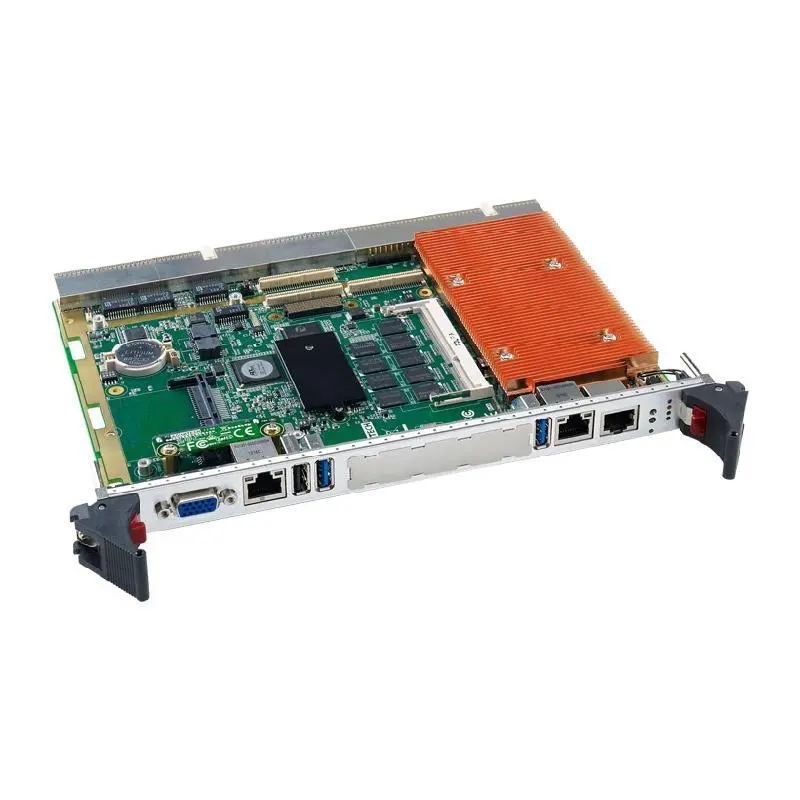

Advantech MIC-3396 6U CompactPCI 4th Generation Intel® Core™ i3/i5/i7 Processor Blade with ECC support

Supports 4th Generation Intel® Core™ i3/i5/i7 processors and Intel® QM87 PCH with embedded graphic (up to 3 independent displays)

Up to 16GB (DDR3 1600) low voltage ECC memory (max 8GB on board, socket SO-UDIMM x1, max 8GB)

Optimized single-slot SBC with 2.5" SATA-III HDD/CFast socket/ on-board flash (optional)

Two SATA ports, 1x USB 3.0, five USB 2.0 ports, two DVI ports, two RS-232 ports, one PS/2 connector, and PCIe x8 interfaces to the Rear Transition Module (RTM)

Five Gigabit Ethernet ports including two PICMG 2.16 for front and rear connectivity

PICMG 2.16 R1.0, PICMG 2.1 R2.0, PICMG 2.6 R1.0 compliant
