| MIC-3666-AE | ||
| Physical Specifications | Dimentions (L x W) | 74 mm x 149 mm (2.9" x 5.78") |
| Power | Power Consumption | Management Power (3.3V) |
| Software | Boot | PXE, iSCSI |
| Environment | Humidity | 0 ~ 95% (non-condensing) |
| Environment | Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Controller | Virtualization technologies | VMDq, VMDc, SR-IOV |
| Controller | Controller | Intel 82599ES dual 10GbE MAC/PHY |
| Controller | IP | IPv4, IPv6 |
| Controller | Queues | 128RX, 128TX per port |
| Controller | Offloading | TCP, UDP, SCTP, FCoE |
| Controller | Security acceleration | IPSec (AES-128, 1024 SA’s) |
| IO | SFP+ | 2 sites with support for presence detect, status and ID EEPROM |
| IO | LEDs | AMC FRU LEDs, Network Link, Activity and Speed |
| Software Development Kit | Linux | X86 Kernel 2.6.x |
| Compliance | IEEE Std 1386.1-2001 PMC specification | IEEE Std 1386.1-2001 PMC specification |
| Software Support | Microsoft Windows | Server2003, Server2008 |
| XMC Connectivity | Connector | P15 assembled, |
| XMC Connectivity | Host interface | PCIex8 gen.2 @ 5Gbps/lane |

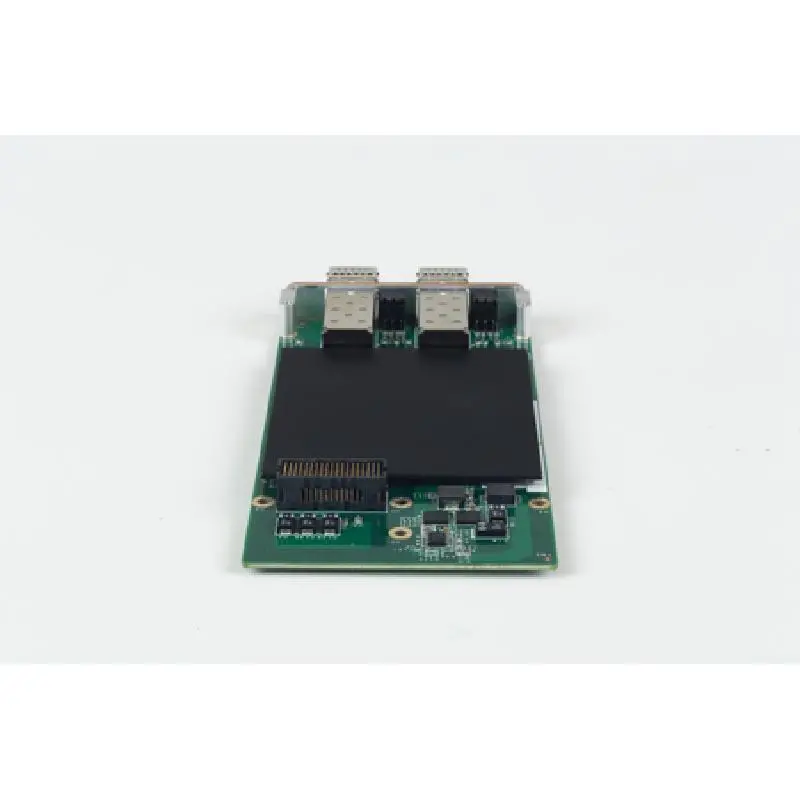

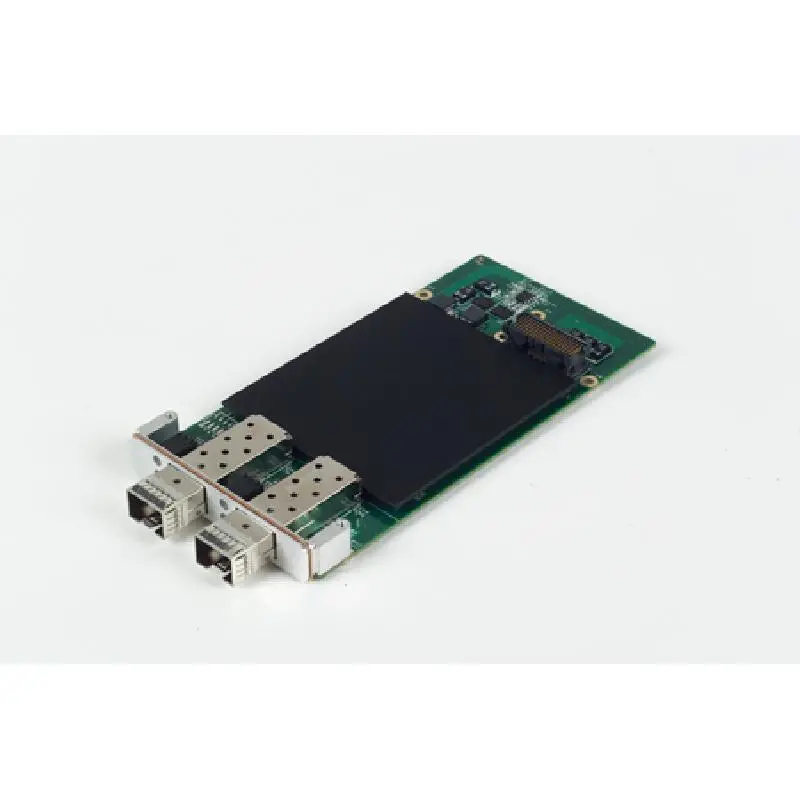

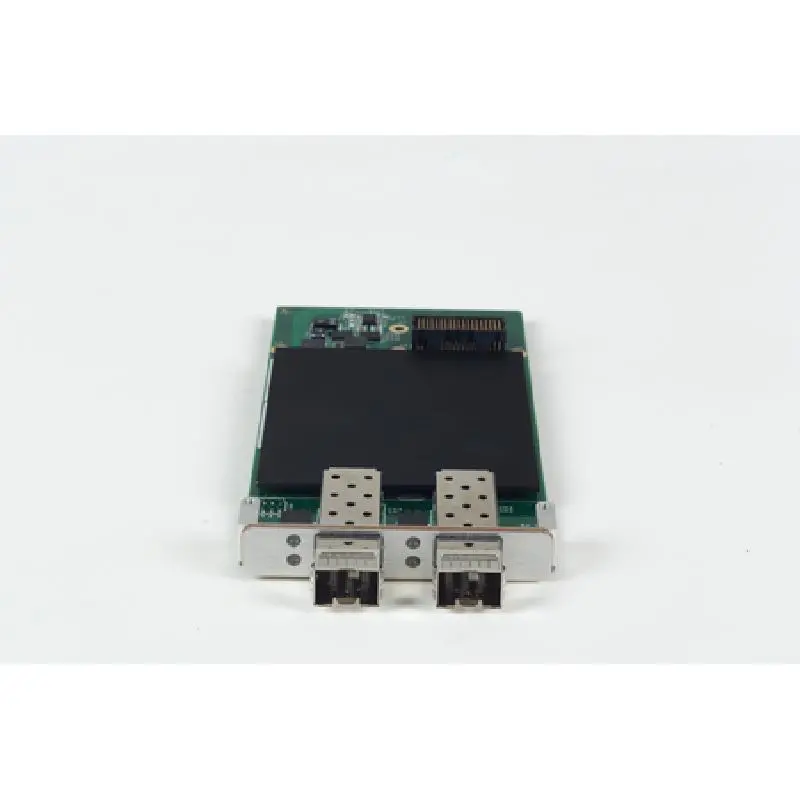

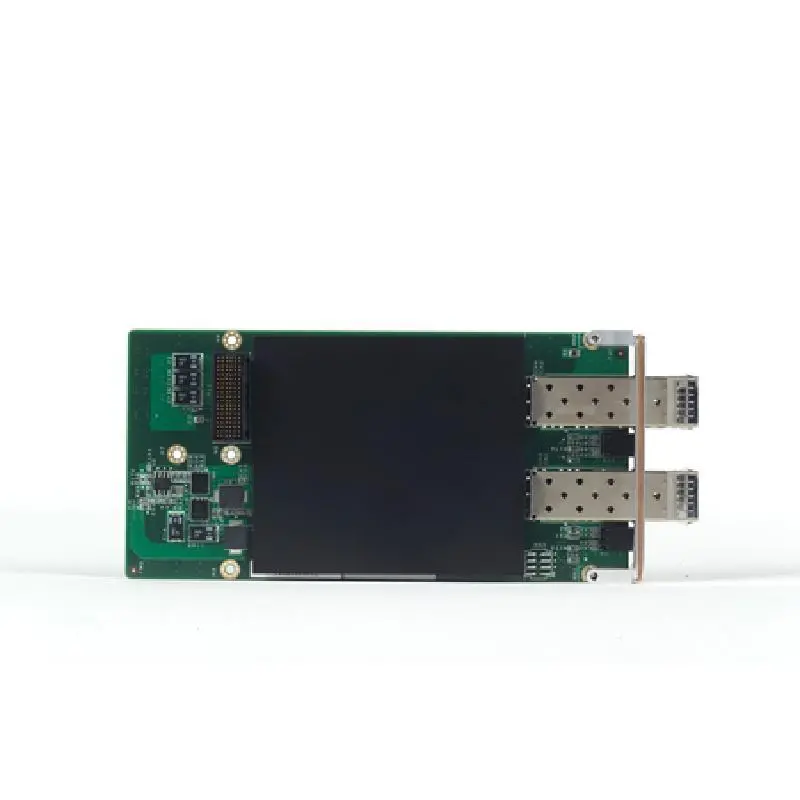

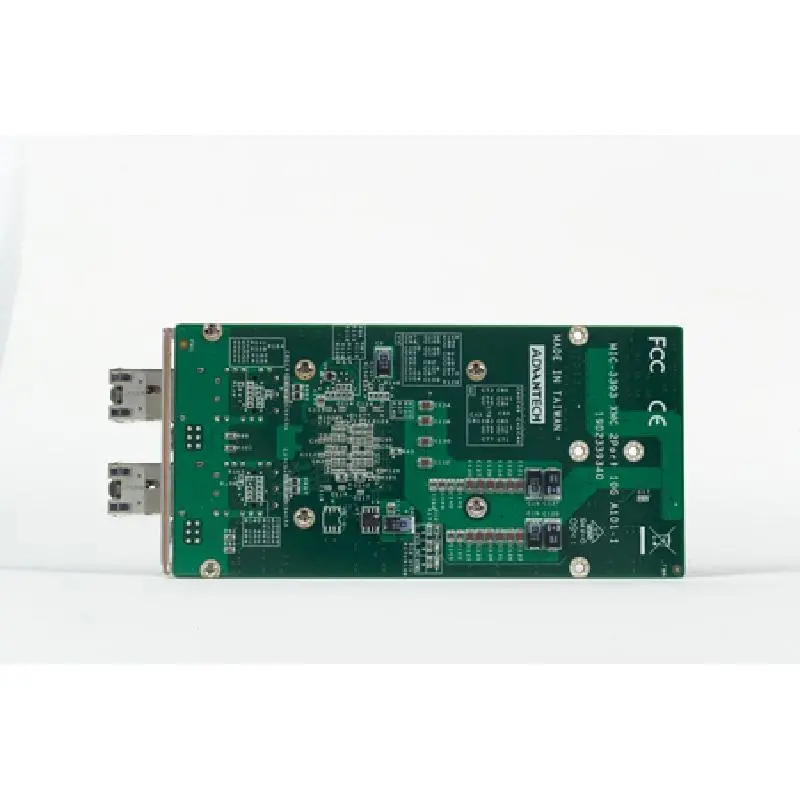

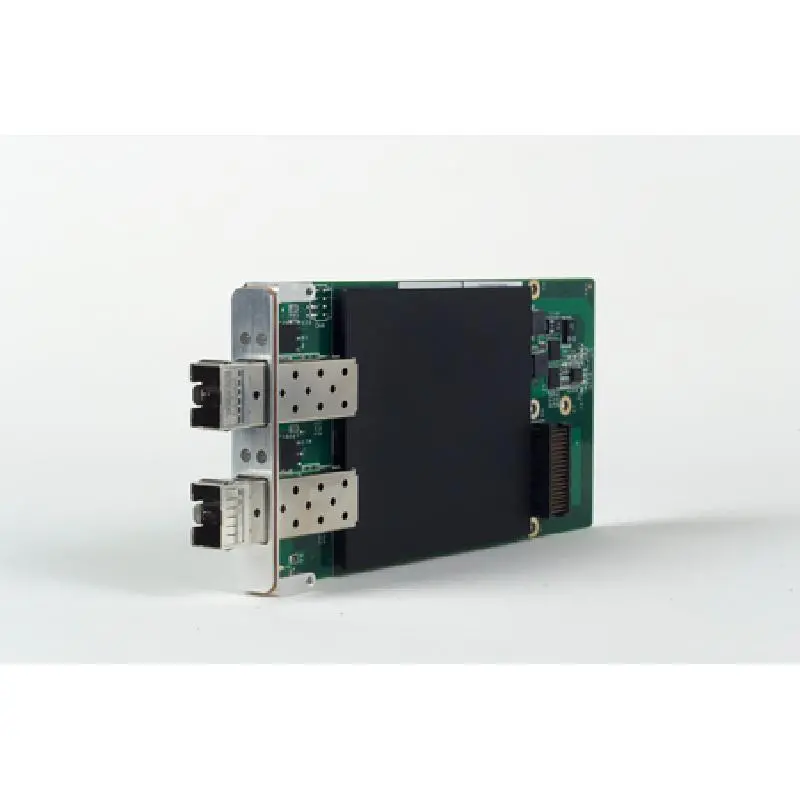

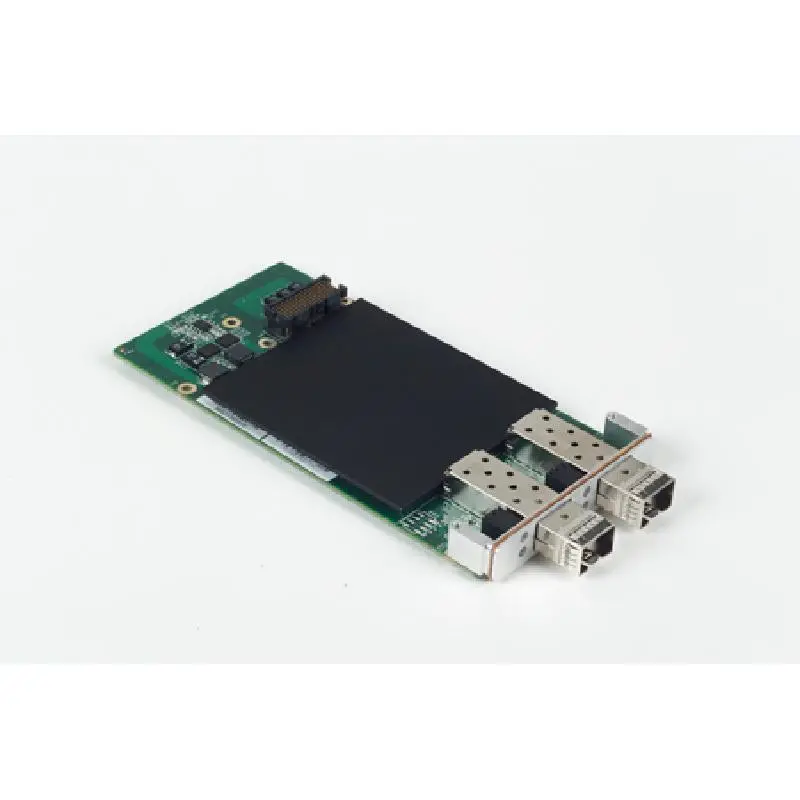

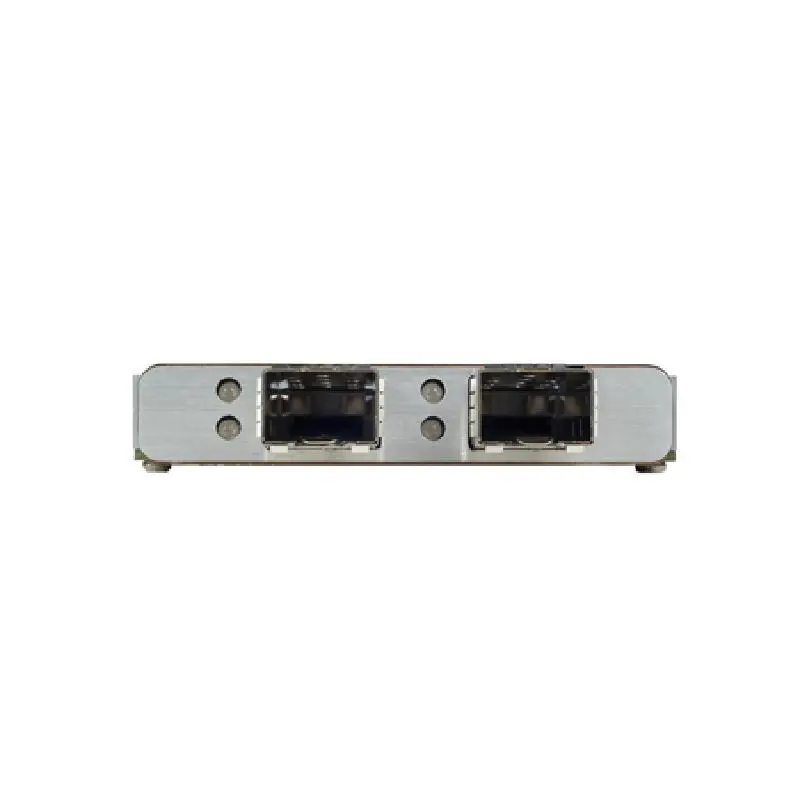

Advantech MIC-3666 Dual 10 Gigabit Ethernet XMC
