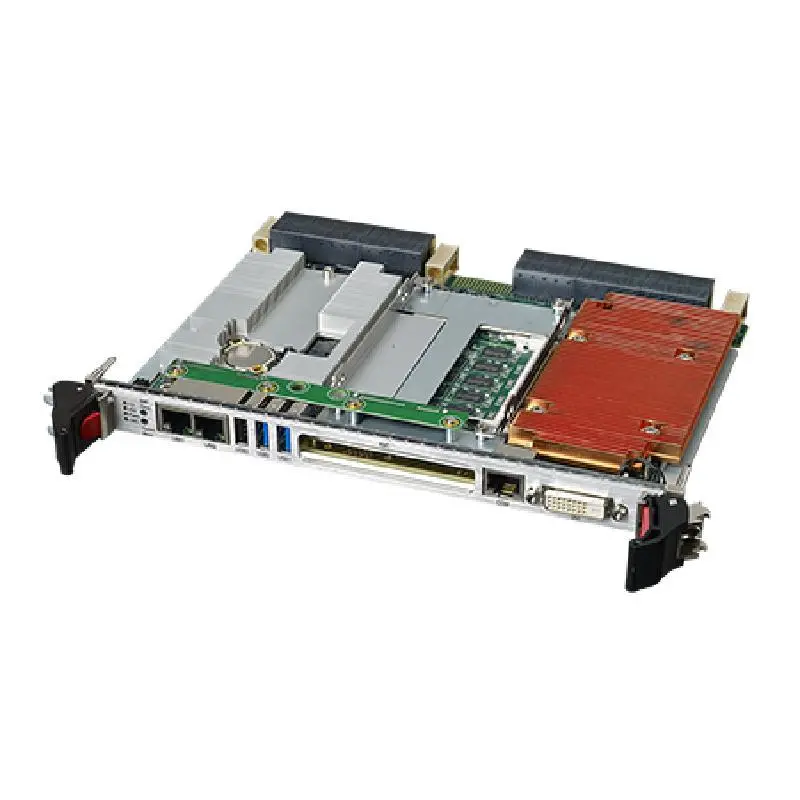

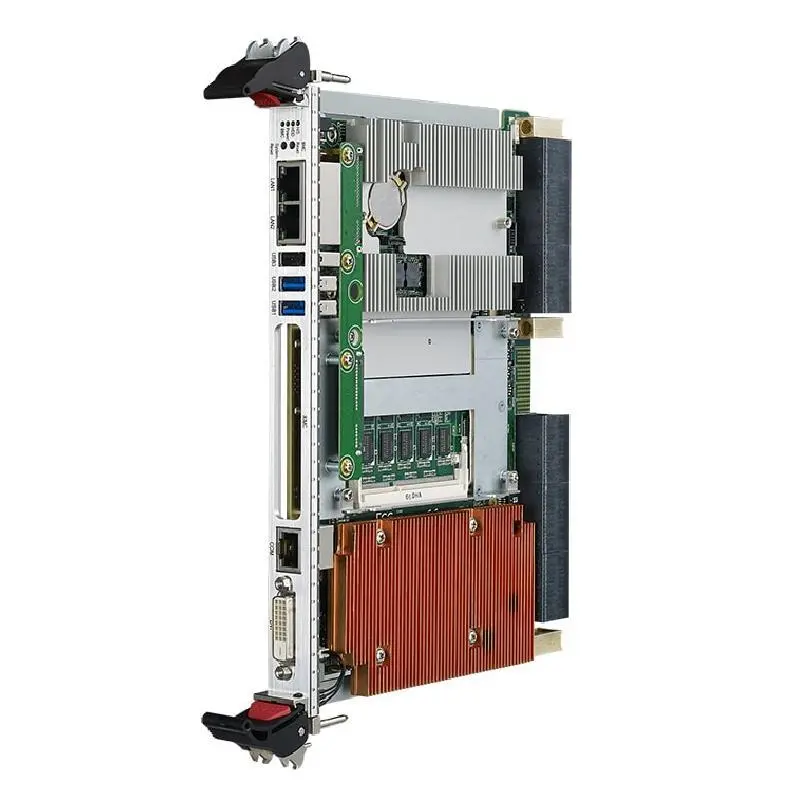

Advantech MIC-6314 OpenVPX CPU Blade with 4th/ 5th Generation Intel® Core™ Processor

4th/ 5th Generation Intel® Core™ processor, up to 4 cores / 8 threads

Intel® QM87 PCH

Triple independent display support

OpenVPX MOD6-PAY-4F1Q2U2T-12.2.1-2 profile compliant

Onboard and SO-DIMM DDR3L-1600, up to 16 GB, with ECC support

Two PCIEx8 ports on the data plane and two PCIex8 ports on the extension plane

Four 1000BASE-T ports on Base interface (two configurable to SERDES)

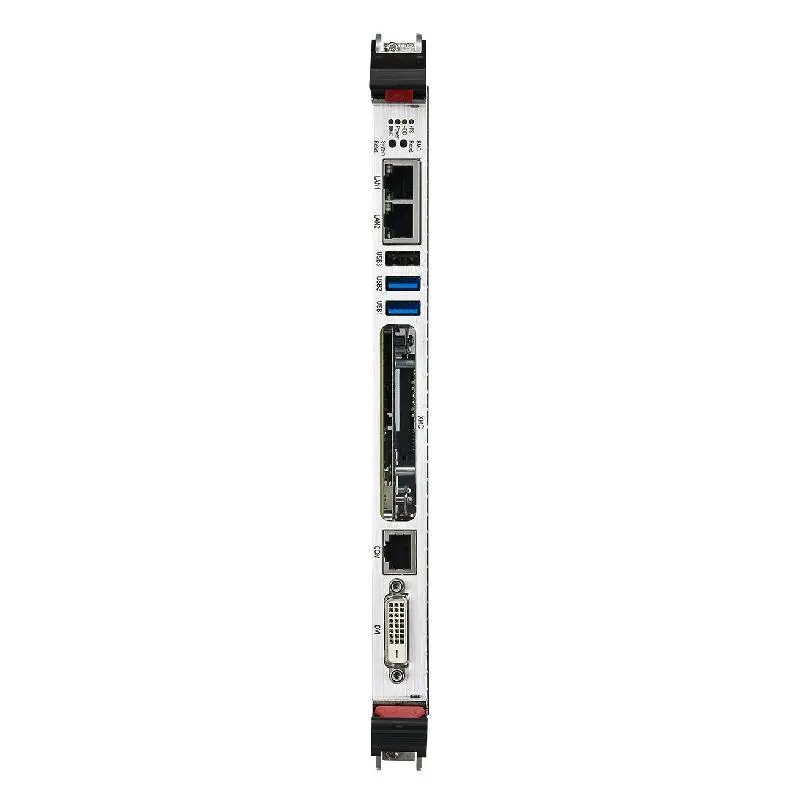

Two 1000BASE-T front panel ports
