| MIC-730AI-10A1 | ||
| Processor System | Flash | 16G of eMMC |
| Ethernet | Interface | 2 x RJ-45 |
| Ethernet | Controller | Intel® i210IT |
| Ethernet | Speed | 10/100/1000 Mbps |
| I/O | USB | 2 x USB3.0 + 3x USB 2.0 |
| Expansion Interface | Mini PCIe | 1 |
| Power | Power Type | ATX/AT |
| Environment | Operating Temperature | -10 ~ 60° C (14 ~ 144° F) |
| Environment | Operating Humidity | 95% @ 40 °C, non-condensing |
| Mechanical | Install | Desktop/Wall-mounting |
| OS | Linux | Ubuntu 18.04 |
| Certification | Safety Certifications | CE/FCC/BSMI |
| Storage | HDD | 1 x 2.5” SSD/HDD Easy-Swap bay |
| I/O | Power Switch | Power ON/OFF Switch x 1 |
| Processor System | CPU | ARM v8.2 64-bit CPU |
| Processor System | GPU | 512 NVIDIA CUDA cores 64 Tensor cores |
| Processor System | Deep Learning Accelerator | 5 TFLOPS (FP16) 10 TOPS (INT8) |
| Processor System | Memory | 16/32 GB 256-bit LPDDR4 |
| Processor System | Storage | 32GB eMMC 5.1 |
| I/O | Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| I/O | Digital I/O | 16 bit |
| I/O | OTG USB | MicroUSB x 1 |
| I/O | COM | 2 x RS-232/RS-422/RS-485 |
| Expansion Interface | PCI Express x 8 | 1 |
| Power | Supply Voltage | 9-36V |
| Environment | Vibration | 0.5 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Mechanical | Dimension | 192 x 230 x 87 mm |
| Mechanical | Weight | 4.5 kg |

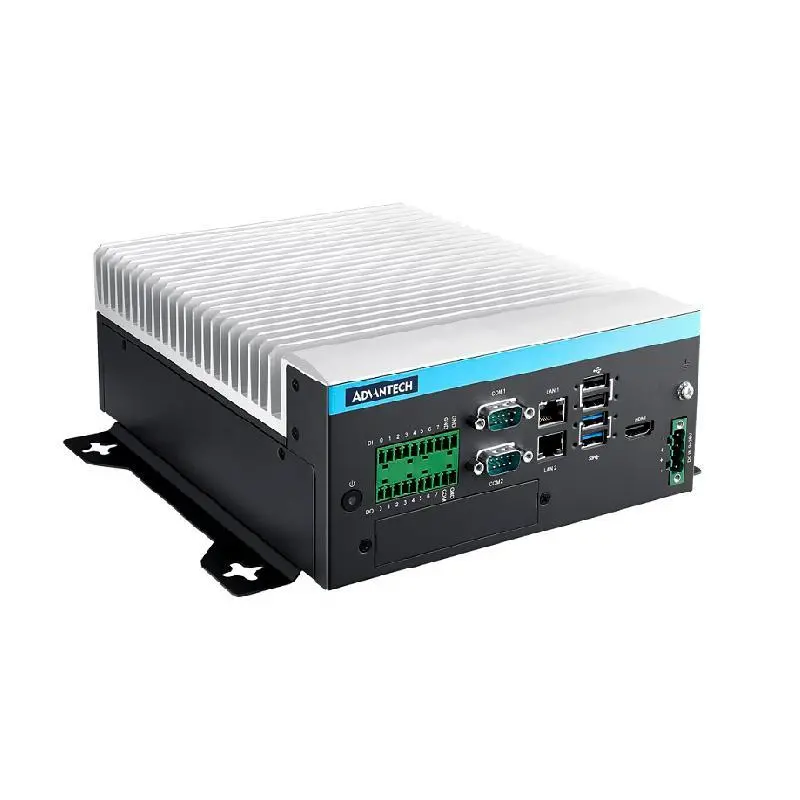

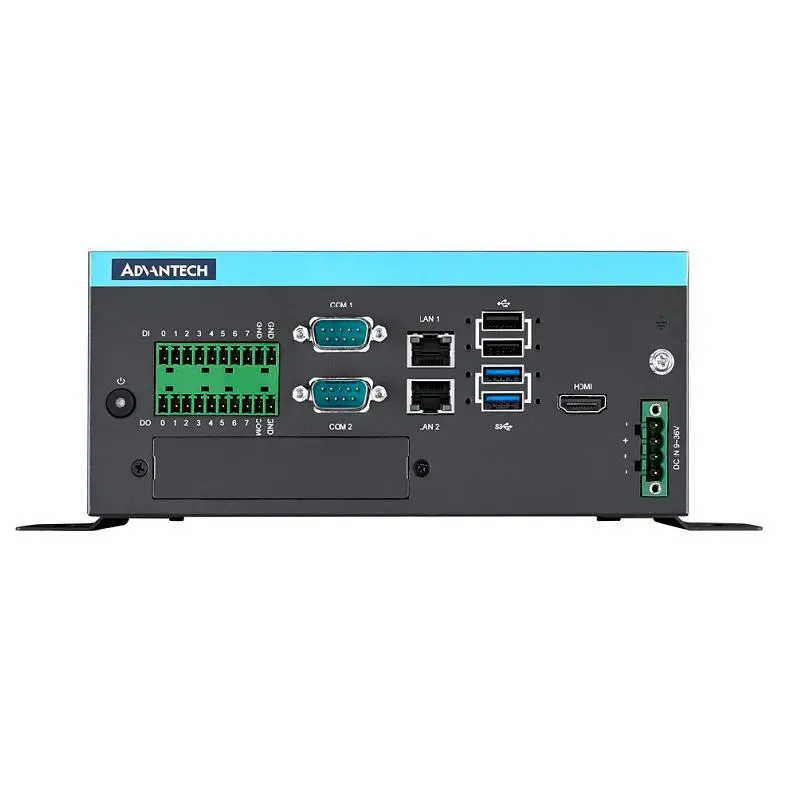

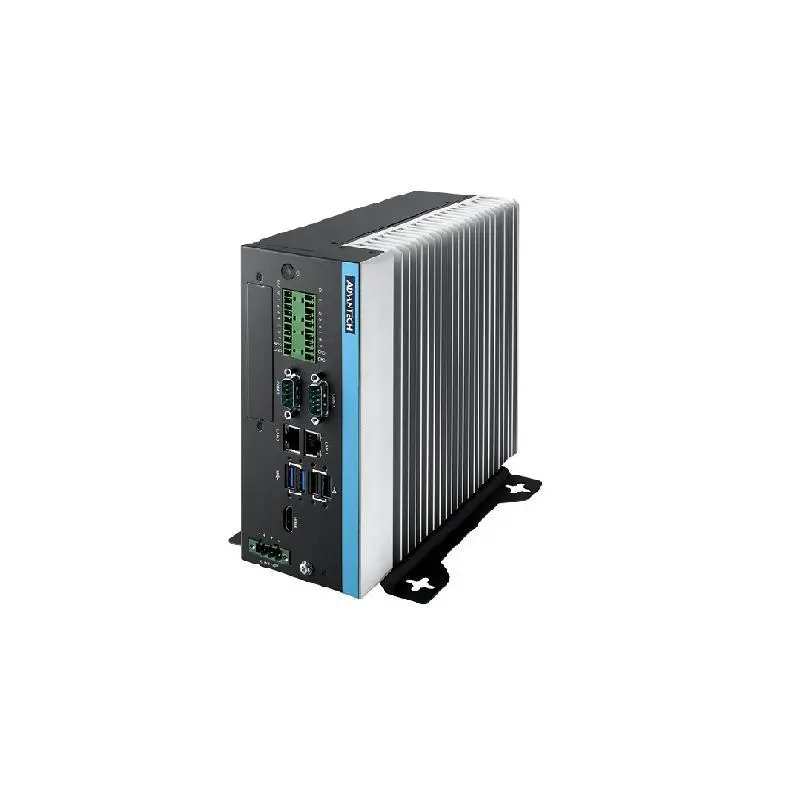

Advantech MIC-730AI AI System Based on NVIDIA Jetson® AGX Xavier
