| MIC-710AIX-00A1 | ||
| Processor System | Flash | 16G of eMMC |
| Processor System | Memory | 8GB LPDDR4 |
| Ethernet | Interface | RJ-45 |
| Ethernet | Controller | Intel® i210IT |
| Ethernet | Speed | 10/100/1000 Mbps |
| I/O | USB | 2 x USB 2.0 & 1 x USB3.0 |
| Expansion Interface | Mini PCIe | 1 |
| Power | Supply Voltage | 19-24V DC-in |
| Environment | Operating Temperature | -10 ~ 60° C (14 ~ 144° F) |
| Environment | Operating Humidity | 95% @ 40 °C, non-condensing |
| Mechanical | Dimension | 147 x 118 x 52 mm (5.7" x 4.6" x 2.4") |
| Mechanical | Weight | 1.2 kg |
| Mechanical | Install | Desktop/Wall-mounting |
| OS | Linux | Ubuntu 18.04 |
| Certification | Safety Certifications | CE/FCC/BSMI |
| Processor System | CPU | ARM v8.2 64-bit CPU |
| Processor System | GPU | 384 NVIDIA CUDA Core 48 Tensor Cores |
| I/O | Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| I/O | OTG USB | MicroUSB x 1 |
| I/O | Digital I/O | 4 bit |
| I/O | COM | 1 x RS232/- |
| Storage | M.2 SATA | 1 x M.2 2280 |
| Storage | SD Card | 1 x Micro SD |
| Power | Power Type | Thermal Block 2 Pin |
| Environment | Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |

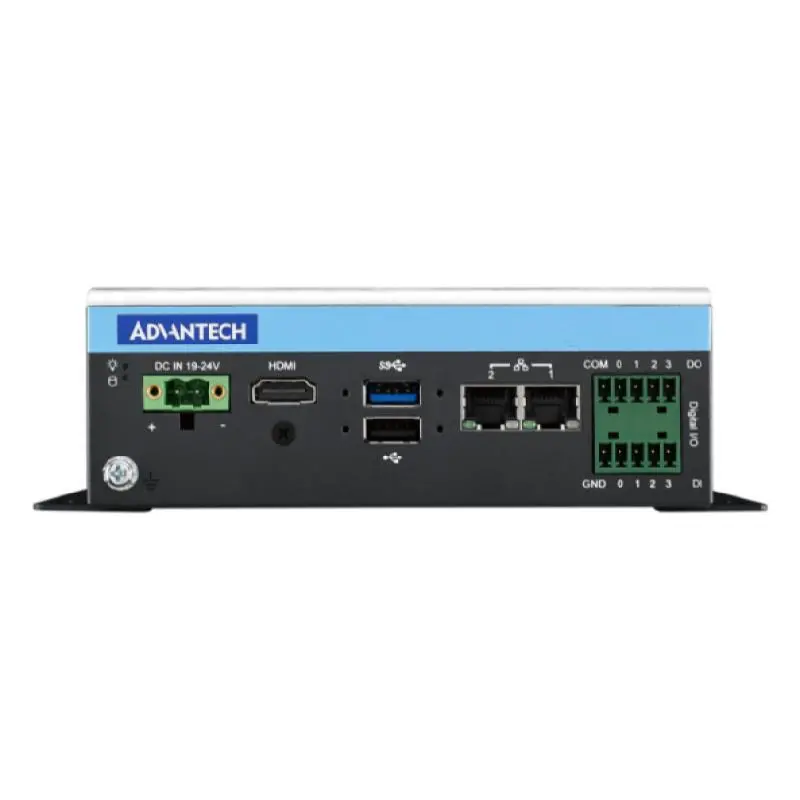

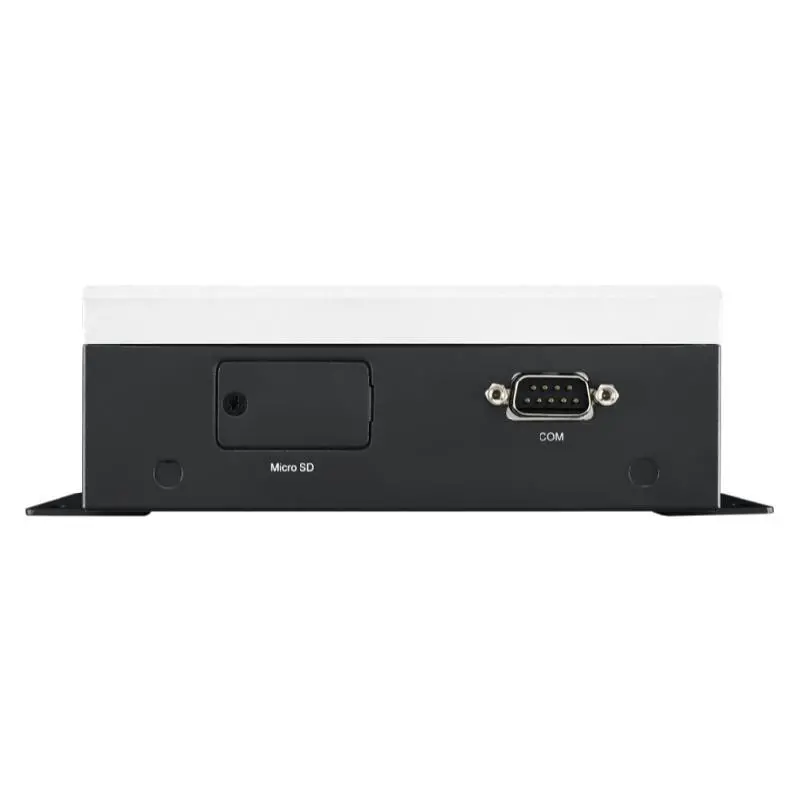

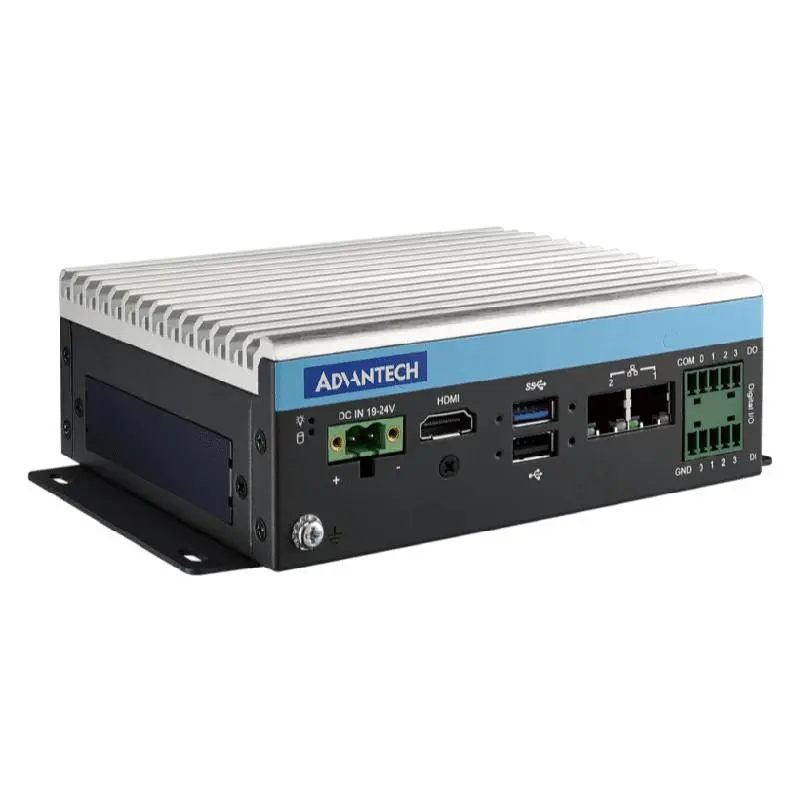

Advantech MIC-710AIX AI System Based onNVIDIA® Jetson™ Xavier NX
