| MIC-710IVA-00A1 | ||
| Processor System | CPU | Quad Core ARM Cortex A57 (Max. Operating Frequency: 1.43GHz) |
| Processor System | GPU | Maxwell GPU, 128 CUDA core, Performance up to 512 GFLOPS (FP16) (Max. Frequency: 921MHz) |
| Processor System | Memory | 4GB LPDDR4 |
| Processor System | Flash | 16G of eMMC |
| Camera Interface PoE | Controller | MICROSEMI PD69104B1ILQ |
| Camera Interface PoE | LAN Switch | Realtek RTL8316SI |
| Camera Interface PoE | Bandwidth | 10/100 Mbps |
| Camera Interface PoE | Compliant | IEEE 802.3af |
| Camera Interface PoE | Power Output | 15.4W |
| Ethernet | Interface | RJ-45 |
| Ethernet | Controller | Intel® i211AT |
| Ethernet | Speed | 10/100/1000 Mbps |
| I/O | Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| I/O | USB | 2 x USB 2.0 & 1 x USB3.0 |
| I/O | Digital I/O | 8 bit |
| I/O | Power Switch | Power ON/OFF Switch x 1 |
| I/O | OTG USB | USB2.0 x 1 (Internal) |
| I/O | COM | RS-485 x 1 |
| Storage | Internal | 3.5" HDD x 2 |
| Power | Supply Voltage | AC100-240V 250W ATX |
| Environment | Operating Temperature | 0 ~ 40 °C with 0.7 m/s air flow |
| Environment | Operating Humidity | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Vibration | 0.5 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Mechanical | Dimension | 300 x 330 x 57mm (11.8" x 13" x 2.24") |
| Mechanical | Weight | 3 kg |
| Mechanical | Install | Desktop |
| OS | Linux | Ubuntu 18.04 |
| Certification | Safety Certifications | CE/FCC/BSMI |

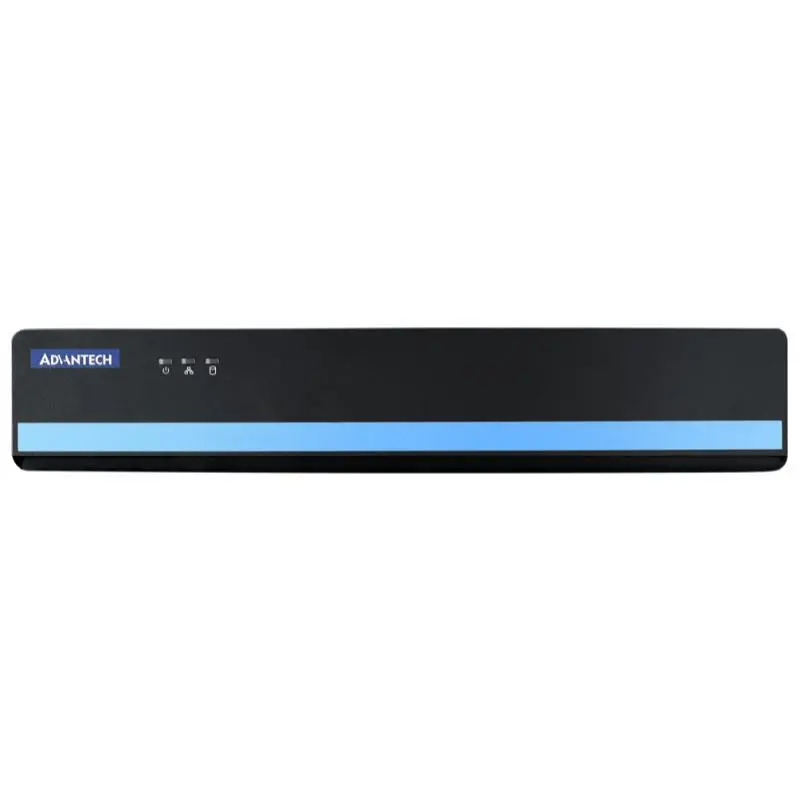

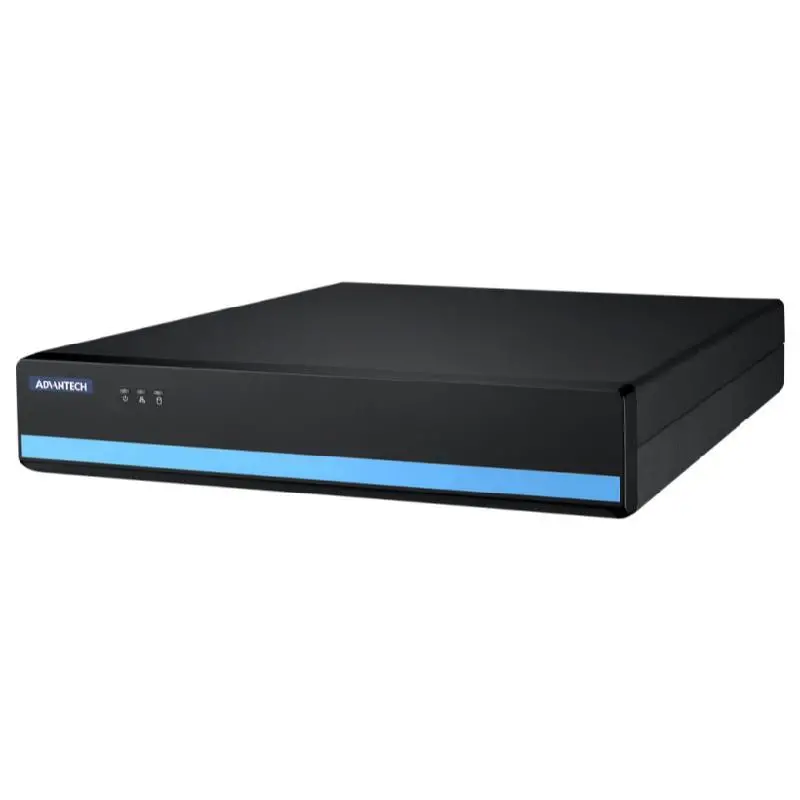

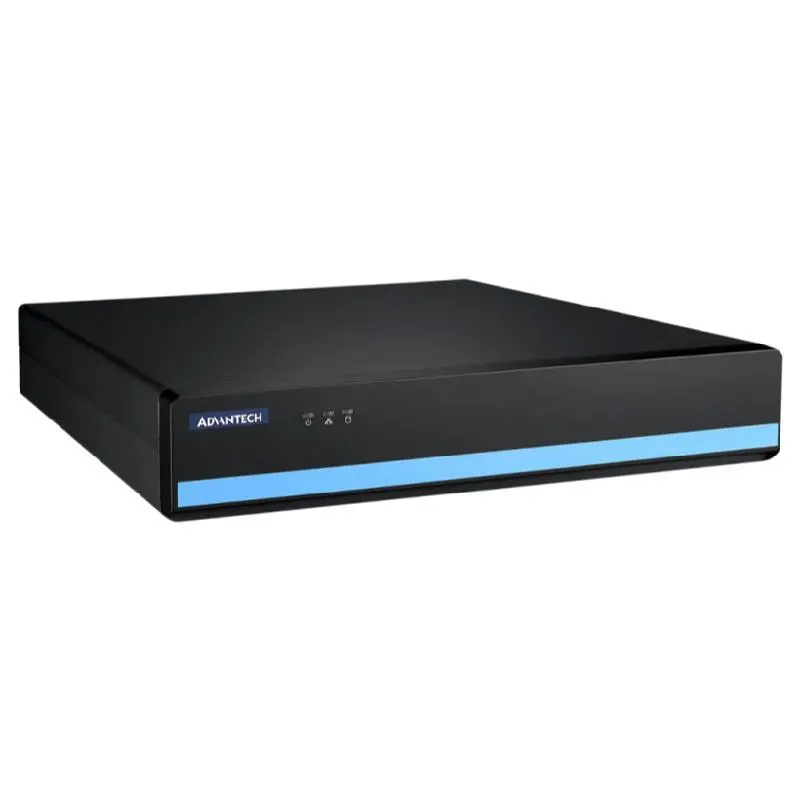

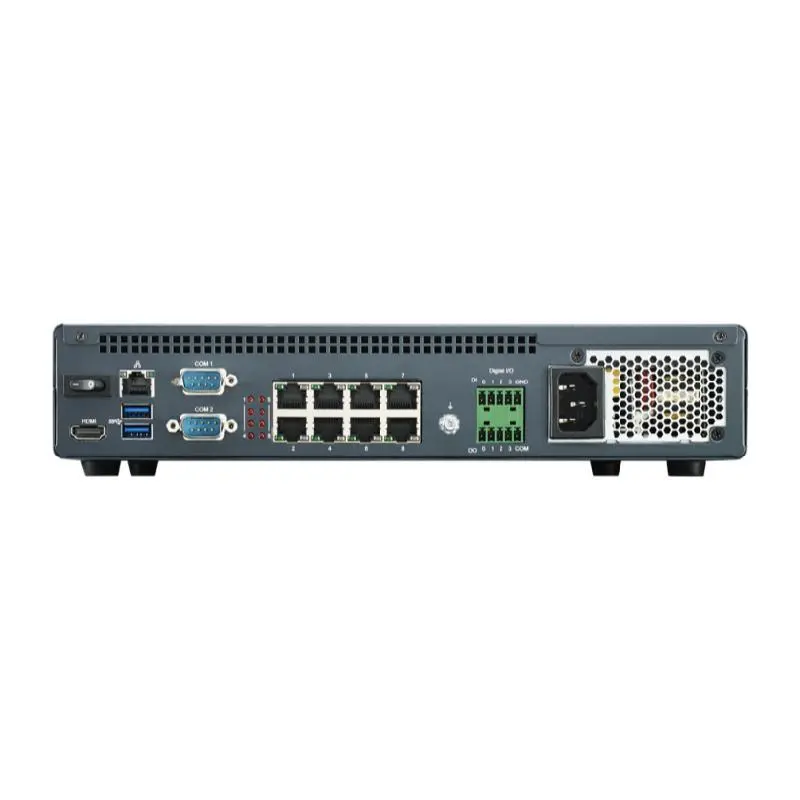

Advantech MIC-710IVA 8ch AI Video System on NVIDIA® Jetson Nano™
