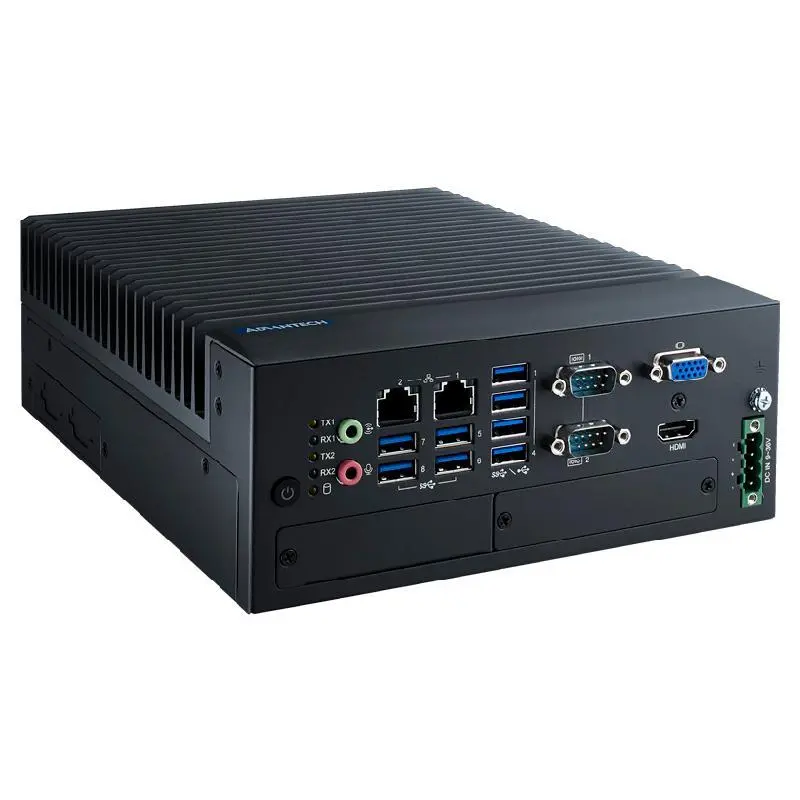

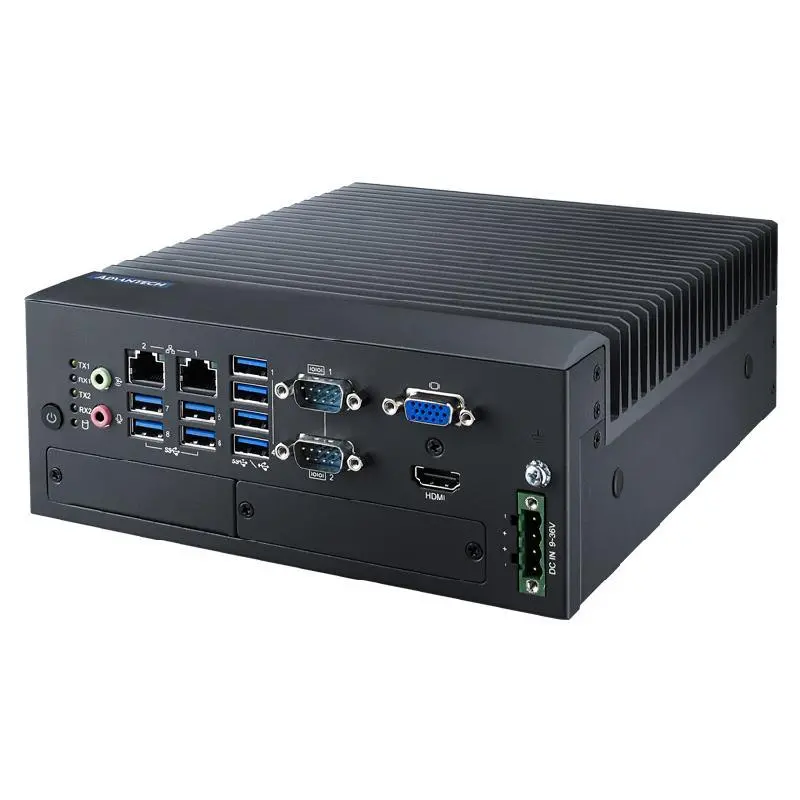

Advantech MIC-770 V3 Compact Fanless System with 12th/13th/14th Gen Intel® Core™ i CPU Socket (LGA 1700)

    Intel® 12th/13th/14th Gen Core™ i CPU socket-type (LGA1700) with Intel® R680E/ H610E chipset

    Wide operating temperature (-20 ~ 60 °C); VGA and HDMI output;

    2 x GigaLAN, 2 x USB 3.2 (Gen2) and 6 x USB 3.2 (Gen1); 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)

    1 x 2.5" HDD/SSD, 1 x mSATA, and 1 x NVMe M.2; 9 ~ 36 VDC input power range

    IP40 dust proof for deployment in harsh environment

    Supports FlexIO and iDoor technology, flexible configure additional HDMI, DP, DVI, COM port, DIO, Remote switch IO

    Supports Advantech i-Modules; Supports Advantech SUSIAPI and embedded software APIs

    Supports Intel® vPro™/AMT and TPM technologies; Supports Advantech iBMC 1.2 remote out-of-band power management solution on WISE-DeviceOn

    Support Windows 11 IoT Enterprise LTSC

MIC-770V3W-00A1 MIC-770V3H-00A1 MIC-770V3W-E0A1 MIC-770V3H-E0A1
Processor System CPU Intel® Core™ processors (14th/13th/12th Gen) Intel® Core™ processors (14th/13th/12th Gen) Intel® Core™ processors (14th/13th/12th Gen) Intel® Core™ processors (14th/13th/12th Gen)
Processor System Socket 1 x LGA1700 1 x LGA1700 1 x LGA1700 1 x LGA1700
Processor System CPU TDP Up to 65 W Up to 65 W Up to 65 W Up to 65 W
Processor System Core Number Up to 24 Up to 24 Up to 24 Up to 24
Processor System L3 Cache Up to 30 MB Up to 30 MB Up to 30 MB Up to 30 MB
Processor System Chipset Intel® R680E Intel® H610E Intel® R680E Intel® H610E
Processor System BIOS AMI 256 / 128 Mbit SPI Flash AMI 256 / 128 Mbit SPI Flash AMI 256 / 128 Mbit SPI Flash AMI 256 / 128 Mbit SPI Flash
Memory Technology Dual-channel DDR5 4800 MHz Dual-channel DDR5 4800 MHz Dual-channel DDR5 4800 MHz Dual-channel DDR5 4800 MHz
Memory Max. Capacity 64 GB 64 GB 64 GB 64 GB
Memory Socket 2 x 262-pin DDR5 SO-DIMM 2 x 262-pin DDR5 SO-DIMM 2 x 262-pin DDR5 SO-DIMM 2 x 262-pin DDR5 SO-DIMM
Graphics Controller Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics
Storage HDD 1 x 2.5" internal HDD/SSD bay 1 x 2.5" internal HDD/SSD bay 1 x 2.5" internal HDD/SSD bay 1 x 2.5" internal HDD/SSD bay
Storage M.2 1 x NVMe M.2 2280 (PCIe Gen4.0 x4), M-Key - 1 x NVMe M.2 2280 (PCIe Gen4.0 x4), M-Key -
Storage mSATA 1 1 1 1
Storage RAID 0/1/5/10 - 0/1/5/10 -
Expansion PCIe x16 Supported via i-Module Supported via i-Module Supported via i-Module Supported via i-Module
Expansion PCIe x8 Supported via i-Module Supported via i-Module Supported via i-Module Supported via i-Module
Expansion PCIe x4 Supported via i-Module Supported via i-Module Supported via i-Module Supported via i-Module
Expansion PCIe x1 Supported via i-Module Supported via i-Module Supported via i-Module Supported via i-Module
Expansion PCI Supported via i-Module Supported via i-Module Supported via i-Module Supported via i-Module
Expansion Mini PCIe 2 1 2 1
Ethernet Connector 2 x RJ45 2 x RJ45 2 x RJ45 2 x RJ45
Ethernet Speed 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps
Ethernet Controller LAN1: Intel® I219-LM, LAN2: Intel® I210-IT LAN1: Intel® I219-V, LAN2: Intel® I210-IT LAN1: Intel® I219-LM, LAN2: Intel® I210-IT LAN1: Intel® I219-V, LAN2: Intel® I210-IT

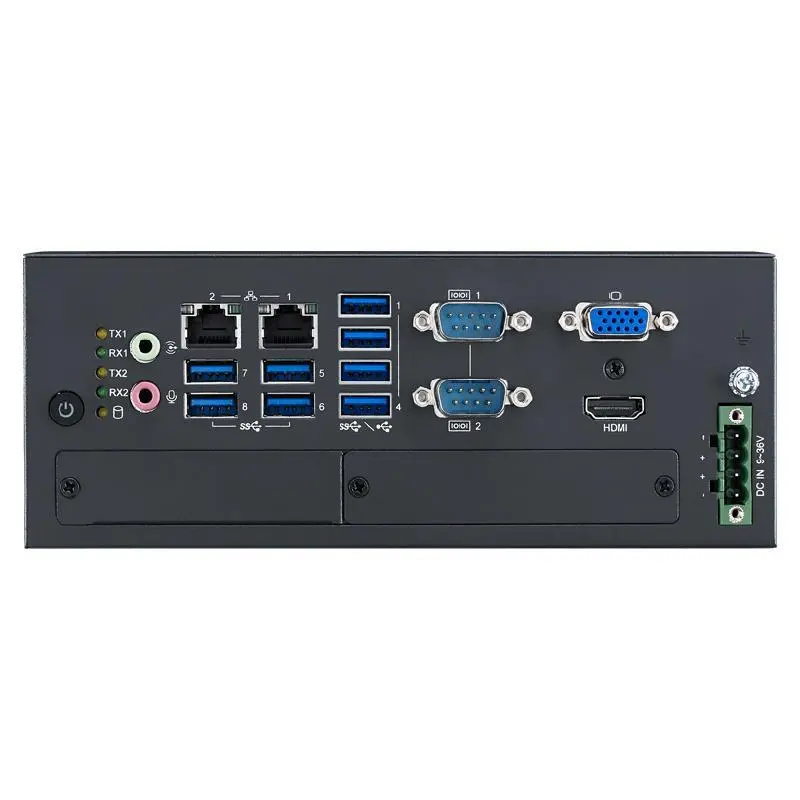

Front I/O Interface Display 1 x VGA, 1 x HDMI 1 x VGA, 1 x HDMI 1 x VGA, 1 x HDMI 1 x VGA, 1 x HDMI
Front I/O Interface LAN 2 2 2 2
Front I/O Interface USB 2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal) 4 x USB 3.2 (Gen1), 4 x USB 2.0 2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal) 4 x USB 3.2 (Gen1), 4 x USB 2.0
Front I/O Interface COM 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional) 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional) 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional) 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)
Front I/O Interface Audio 2 (Mic-in, Line-out) 2 (Mic-in, Line-out) 2 (Mic-in, Line-out) 2 (Mic-in, Line-out)
WatchDog Timer Output System Reset System Reset System Reset System Reset
WatchDog Timer Interval Programmable 1 ~ 255 sec/min Programmable 1 ~ 255 sec/min Programmable 1 ~ 255 sec/min Programmable 1 ~ 255 sec/min
Power Supply Power Type ATX, AT ATX, AT ATX, AT ATX, AT
Power Supply Input Range 9 ~ 36 VDC 9 ~ 36 VDC 9 ~ 36 VDC 9 ~ 36 VDC
Environment Operating Temperature -20~50 °C with 0.7 m/s air flow -20~50 °C with 0.7 m/s air flow -20~35 °C without air flow -20~35 °C without air flow
Environment Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Environment Operating Shock With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration
Environment Humidity 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing)
Mechanical Dimension (W x H x D) 77 x 192 x 230 mm 77 x 192 x 230 mm 107.3 x 192 x 230 mm 107.3 x 192 x 230 mm
Mechanical Weight (Net) 2.8 kg (6.17 lb) 2.8 kg (6.17 lb) 4.65 kg (10.25 lb) 4.65 kg (10.25 lb)
Mechanical Mounting Desktop, Wall mount Desktop, Wall mount Desktop, Wall mount Desktop, Wall mount
Certification EMC CE/FCC Class A, CCC, BSMI, UL/CB CE/FCC Class A, CCC, BSMI, UL/CB CE/FCC Class A, CCC, BSMI, UL/CB CE/FCC Class A, CCC, BSMI, UL/CB
