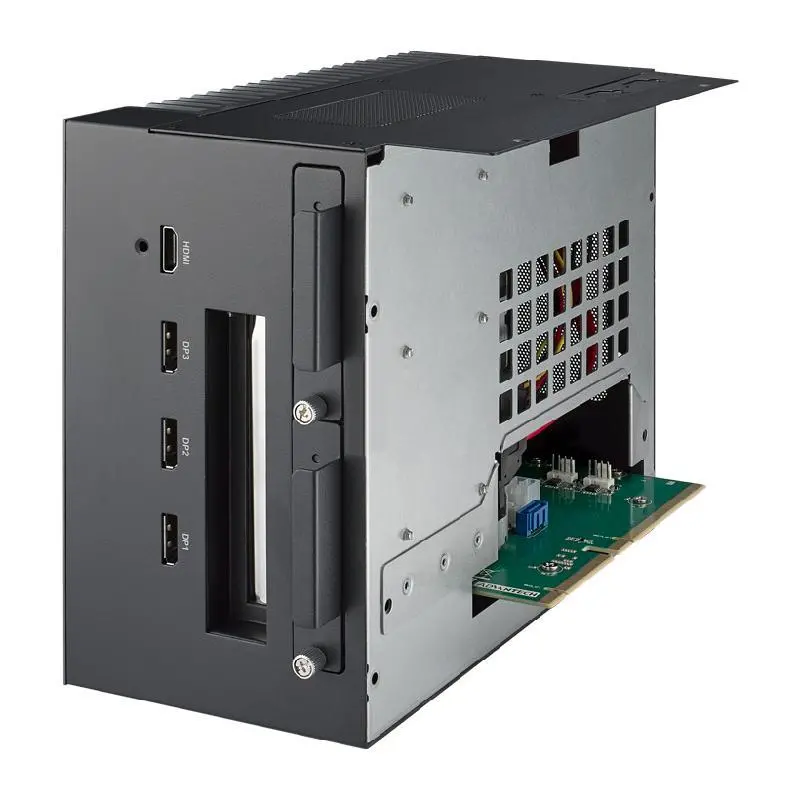

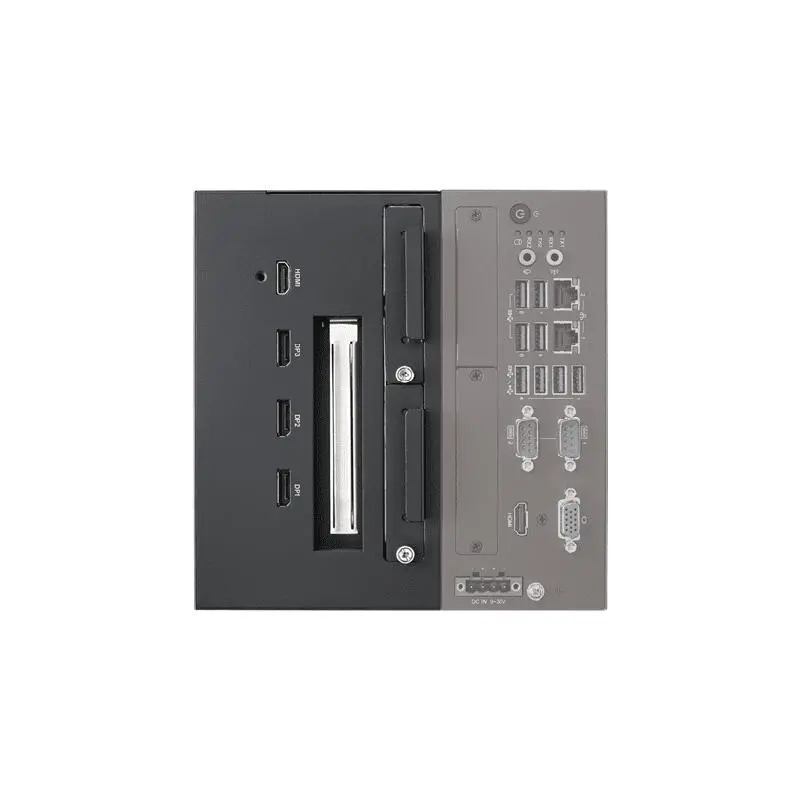

Advantech MIC-75GF10 MXM GPU Expansion Module for New AI Application with MIC-7 Series - industrial computer

Advantech MIC-75GF10 MXM GPU Expansion Module for New AI Application with MIC-7 Series

Support NVIDIA MXM GPU with whole system fanless design

Support up to 80W NVIDIA Quadro MXM 3.1 Type A/B form factor GPU

1 x HDMI and 3 x DisplayPort 1.4a display output

Operating Temp. -10~50C

Support 1Grms Op. vibration

Dual front removable 2.5" storage bay for easy swap

IP40 fanless ruggedized compact size design

MIC-7 Series compatible

Inquiry

Description

		MIC-75GF10-00A1
Expansion	PCIe x16	1
Expansion	PCIe x8	-
Expansion	PCIe x4	1
Expansion	PCIe x1	-
Expansion	PCI	-
Storage	SATA	1 x SATA Signal, 1 x SATA Power
Storage	HDD	2 x 2.5" swappable HDD/SSD bay
Power Supply	Power Connector	1 x 4-pin connector (12VDC, 5A)
Mechanical	Dimension (W x H x D)	113 x 192 x 230 mm
Mechanical	Weight (Net)	3 kg (6.61 lb)
