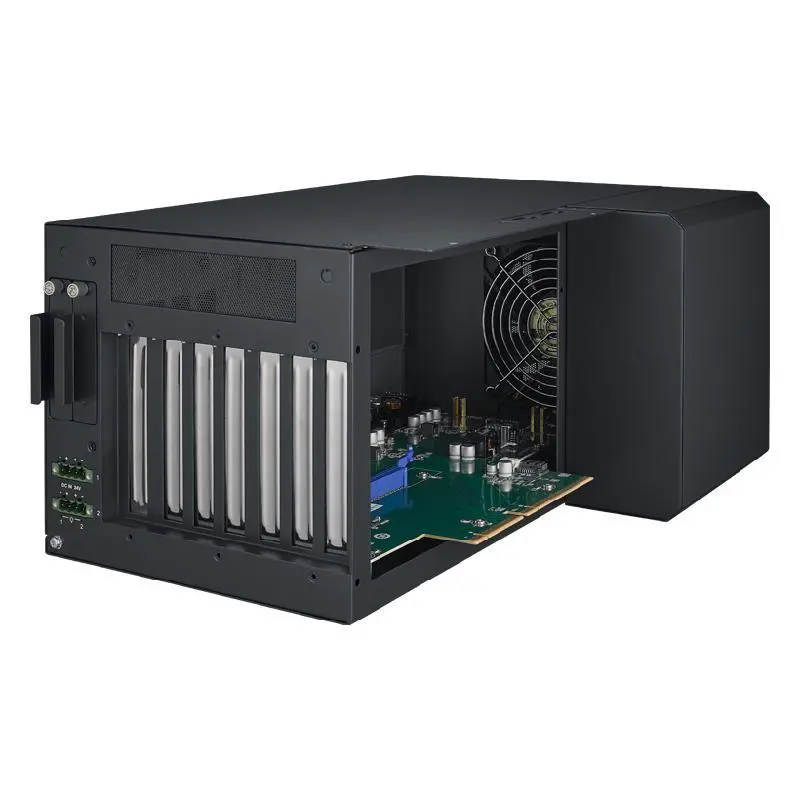

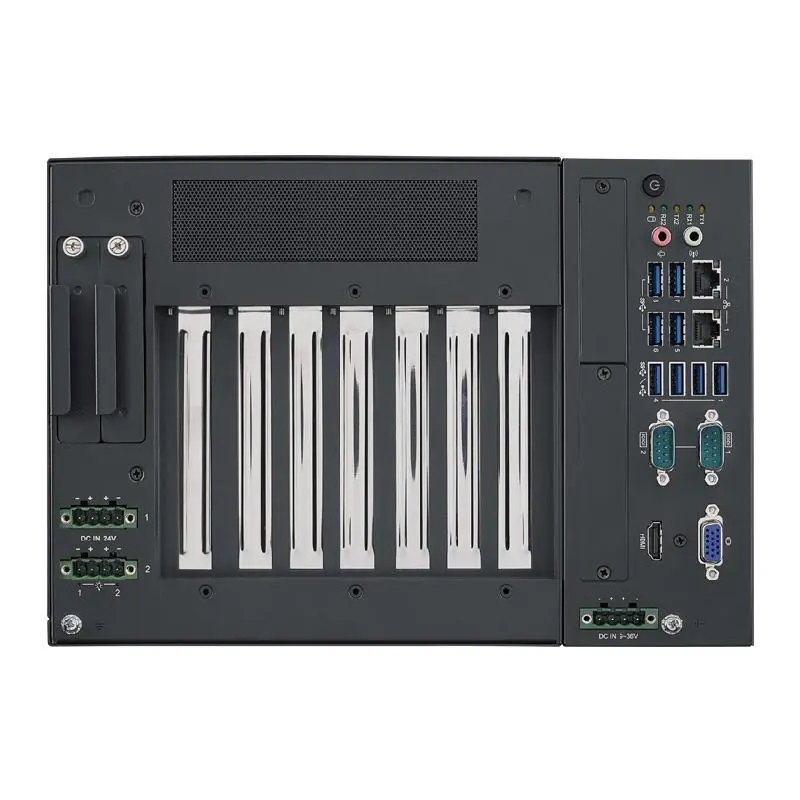

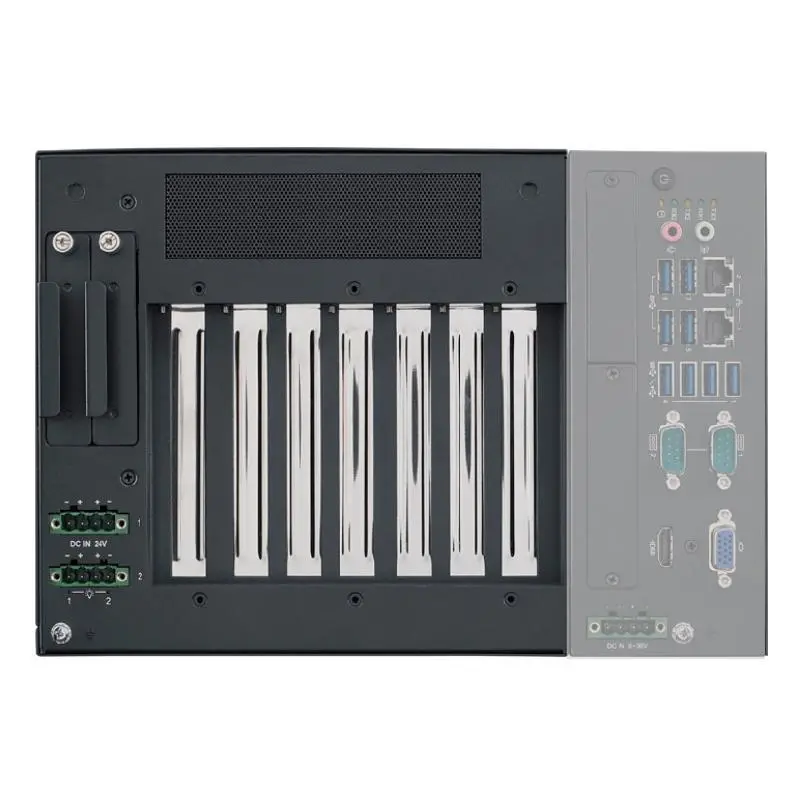

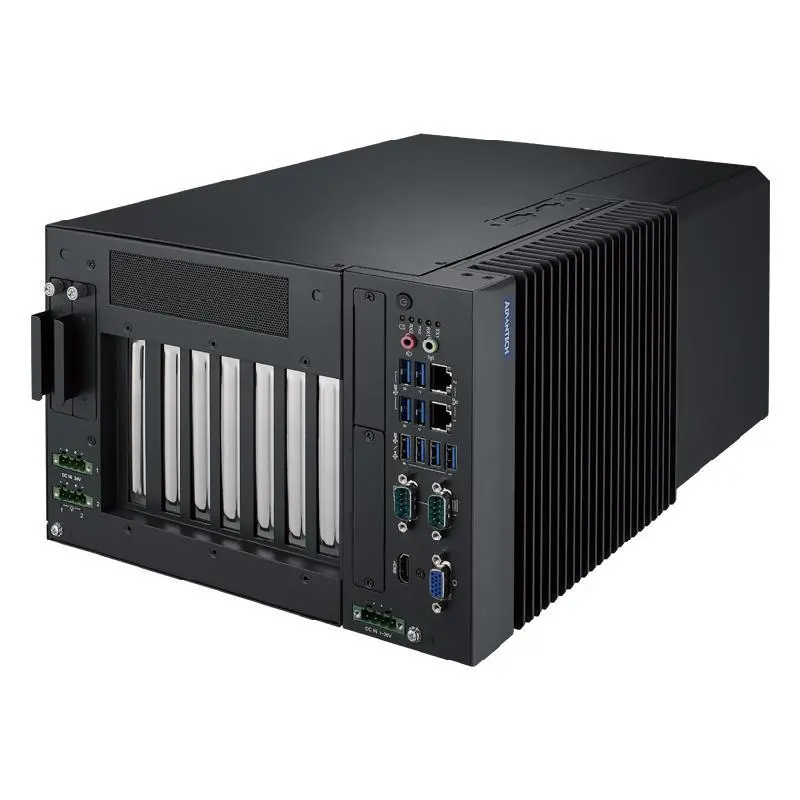

Advantech MIC-75G30 Dual GPU Expansion Module for Video AI Edge Computing with MIC-7 Series

Offering powerful GPU solution with dual NVIDIA 350W, 3/2.5-slot width/322mm length GPU cards for new AI application

Triple 24VDC power inputs, provide independent power for GPU cards and MIC-7 system

Intelligent power status indicating LED for system and GPU card independently

Ruggedized design to sustain dual GPU cards with 1 Grms Op. vibration validation

Dual front removable 2.5" storage bay for easy swap

Support up to to 35°C operating temperature

IP30 rating with fan filter, suitable for outdoor or industrial environment

Compact size design

		MIC-75G30-00B1
Expansion	PCIe x16	2
Expansion	PCIe x8	-
Expansion	PCIe x4	1
Expansion	PCIe x1	-
Expansion	PCI	-
Storage	SATA	1 x SATA Signal, 1 x SATA Power
Storage	HDD	2 x 2.5" swappable HDD/SSD bay
Power Supply	Power Connector	4 x 6-pin connector (12VDC, 17A), 1 x 4-pin connector (12VDC, 5A)
Mechanical	Dimension (W x H x D)	203 x 192 x 385 mm
Mechanical	Weight (Net)	5 kg (11.02 lb)
