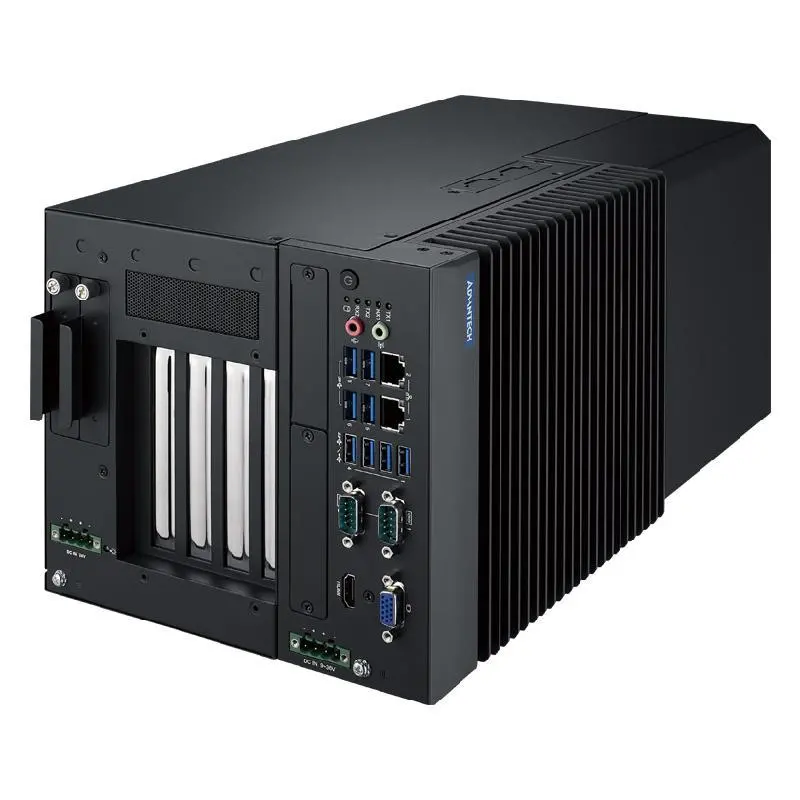

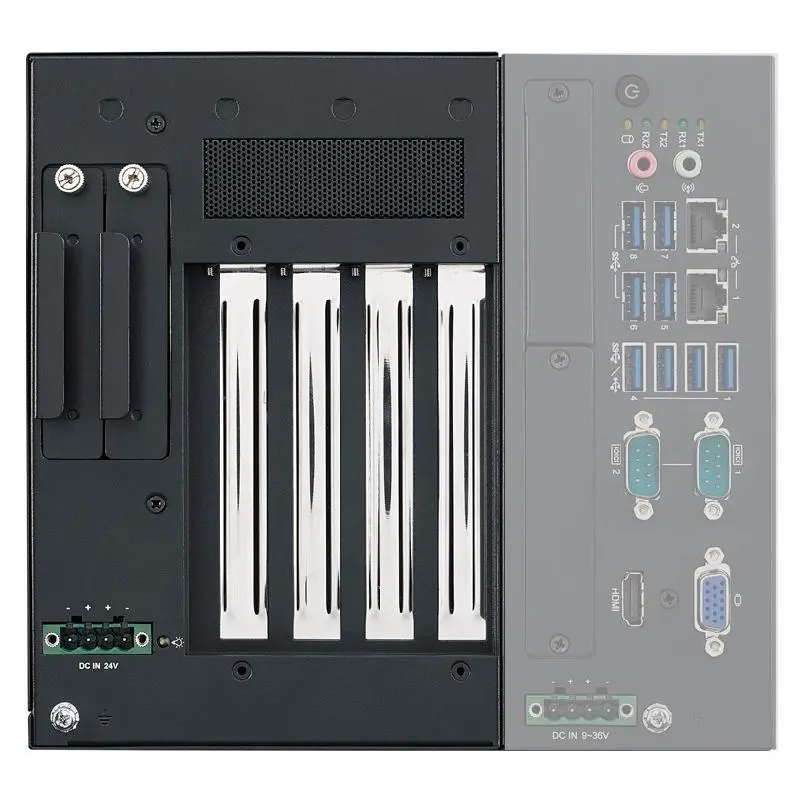

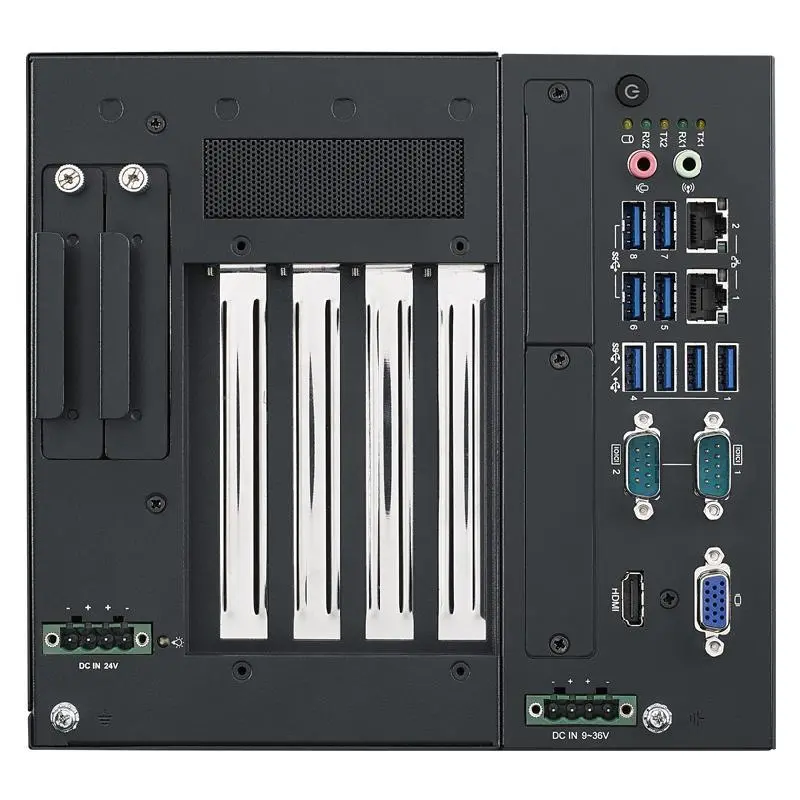

Advantech MIC-75G20 MIC-75G20 GPU i-Module, 1 PCIe x16 + 1 PCIe x4, dual front accessible storage bay

Offering powerful GPU solution with NVIDIA 350W, 2.75-slot width, 334.6mm length GPU cards for new AI application

Dual 24VDC power inputs with reliable power and OCP solution for up to 700W maximum peak power currency

Intelligent power status indicating LED for system and GPU card independently

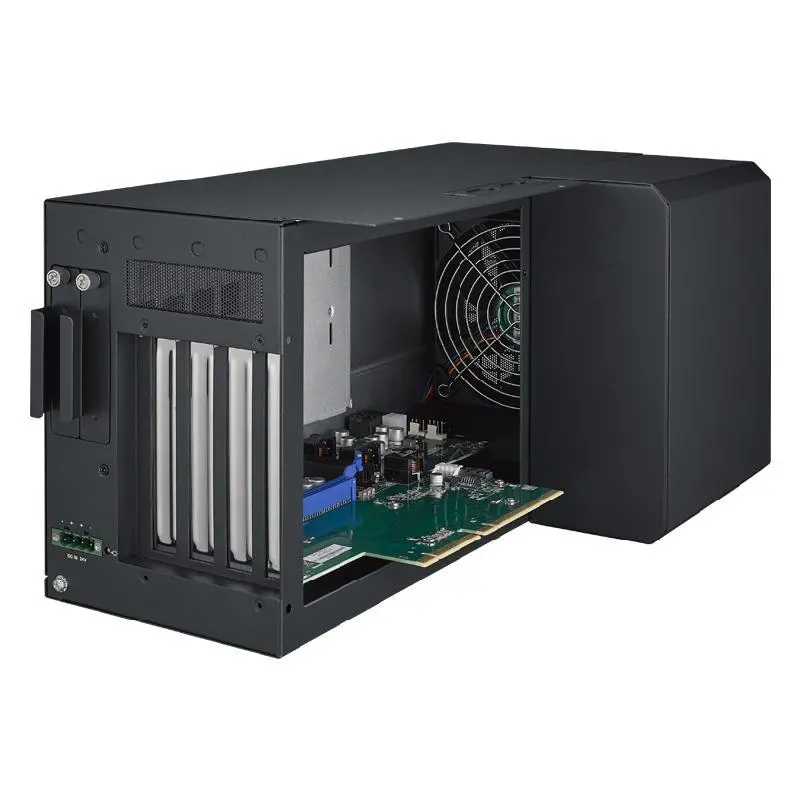

Flexible GPU card holders (R.O.C. Patent Pending), ensuring GPU card

Support up to 1Grms Op. vibration

Support up to 60C Op. temp. with 350W GPU and 4-port PoE card installed with PWM fan control for intelligent thermal management

Dual front removable 2.5" storage bay for easy swap

IP30 rating with fan filter, suitable for outdoor or industrial environment

		MIC-75G20-10B1
Expansion	PCIe x16	1
Expansion	PCIe x8	-
Expansion	PCIe x4	1
Expansion	PCIe x1	-
Expansion	PCI	-
Storage	SATA	1 x SATA Signal, 1 x SATA Power
Storage	HDD	2 x 2.5" swappable HDD/SSD bay
Power Supply	Power Connector	2 x 6-pin connector (12VDC, 17A), 1 x 4-pin connector (12VDC, 5A)
Mechanical	Dimension (W x H x D)	130 x 192 x 385 mm
Mechanical	Weight (Net)	2.99 kg (6.59 lbs)
