Advantech MIC-75M20 2-slot expansion i-Module with 1 x PCIe x16, 1 x PCIe x4 - industrial computer

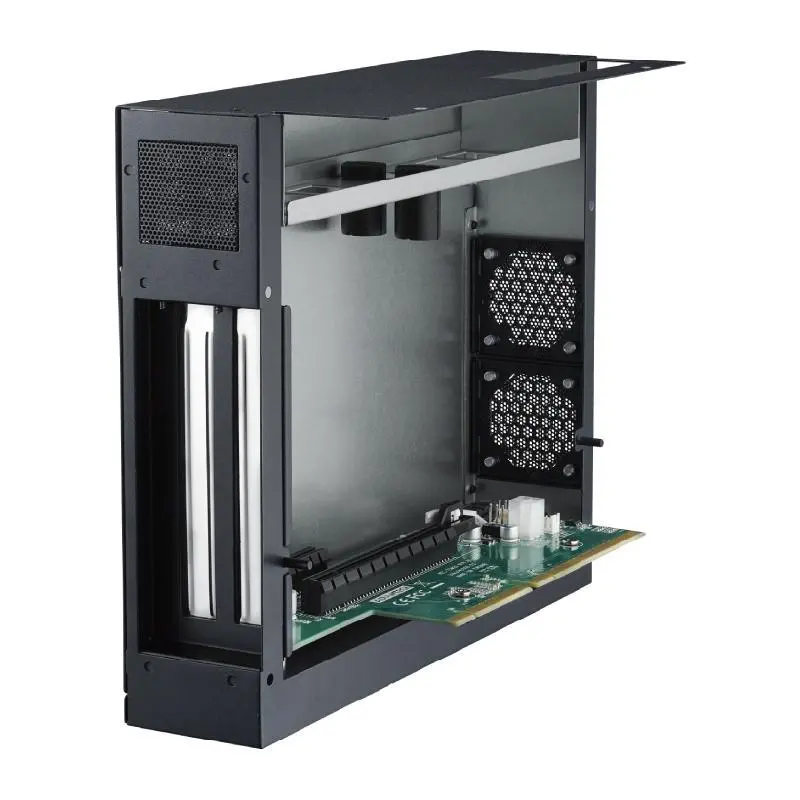

Advantech MIC-75M20 2-slot expansion i-Module with 1 x PCIe x16, 1 x PCIe x4

1 x PCIE x16, 1 x PCIE x4 (MIC-75M20)

2 x PCIE x8 (MIC-75M20-01)

Support 2 x 4cm FAN (Optional)

Dimension (W x H x D): 50 x 192 x 230 mm

Inquiry

Description

		MIC-75M20-00C1	MIC-75M20-01A2
Expansion	PCIe x16	1	-
Expansion	PCIe x8	-	2
Expansion	PCIe x4	1	-
Expansion	PCIe x1	-	-
Expansion	PCI	-	-
Storage	SATA	1 x SATA Signal, 1 x SATA Power	1 x SATA Signal, 1 x SATA Power
Storage	HDD	-	-
Power Supply	Power Connector	1 x 4-pin connector (12VDC, 5A)	1 x 4-pin connector (12VDC, 5A)
Mechanical	Dimension (W x H x D)	50 x 192 x 230 mm	50 x 192 x 230 mm
Mechanical	Weight (Net)	0.87 kg (1.92 lb)	0.87 kg (1.92 lb)
