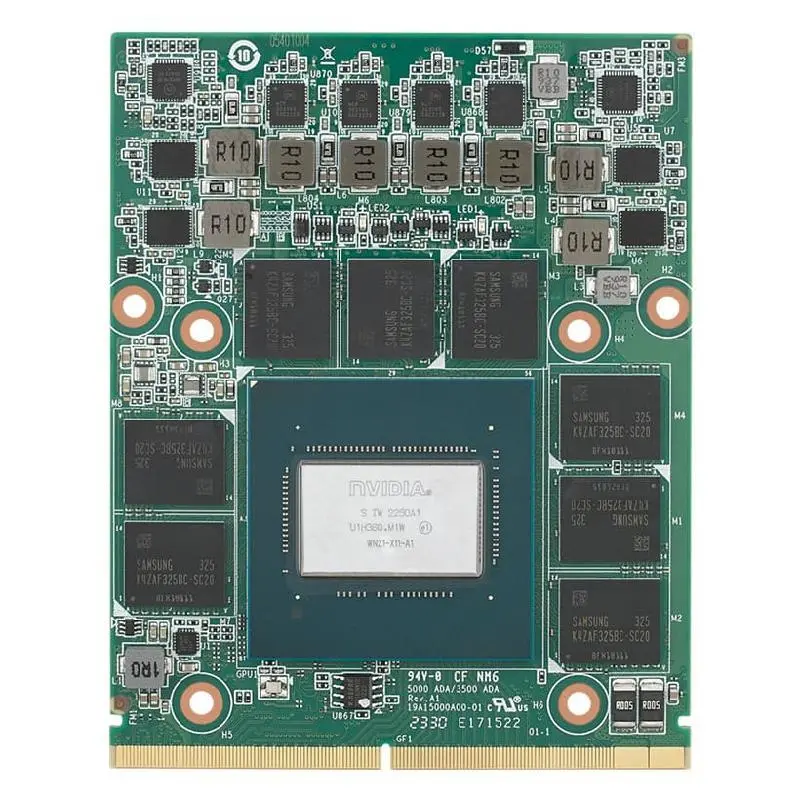

Advantech SKY-MXM-5000A

NVIDIA® Quadro® 5000 Ada with MXM 3.1 TYPE B+ form factor(82 x 105 mm)

Up to 9728 CUDA cores , 76 RT cores and 304 Tensor cores, 42.6 TFLOPS

GDDR6 16GB memory, 256-bit, bandwidth 576 GB/s

Discrete or MS-Hybrid mode supported

Memory Error Correction Code (ECC) supported

Encode Sessions Unlimited

GPUDirect® Remote Direct Memory Access (RDMA) and Video supported

Up to 4 x DisplayPort 1.4a outputs

Long life cycle, supports 5 years availability

		SKY-MXM-5000A-6SDA
NVIDIA GPU Cores	GPU Architecture	Ada Lovelace
NVIDIA GPU Cores	Memory Size	16 GB GDDR6 (with ECC)
NVIDIA GPU Cores	CUDA Cores	9728
NVIDIA GPU Cores	Tensor Cores	304
NVIDIA GPU Cores	RT Cores	76
NVIDIA GPU Cores	Interface	PCIe 4.0 x16
NVIDIA GPU Cores	Power Consumption	115 W
GPU Computing	Max FP32 (TFLOPS)	41.15
Display & Graphics	Display Output	4 x DP 1.4a
Display & Graphics	NVENC	2
Display & Graphics	NVDEC	5
Environment	Operating Temperature	0~55°C (32~131°F) (dependent on CPU and cooler solution)
Environment	Storage Temperature	-40~85°C (-40~185°F)
Mechanical	Form Factor	MXM Type B+
Mechanical	Dimension (L x H)	82 x 105 mm
