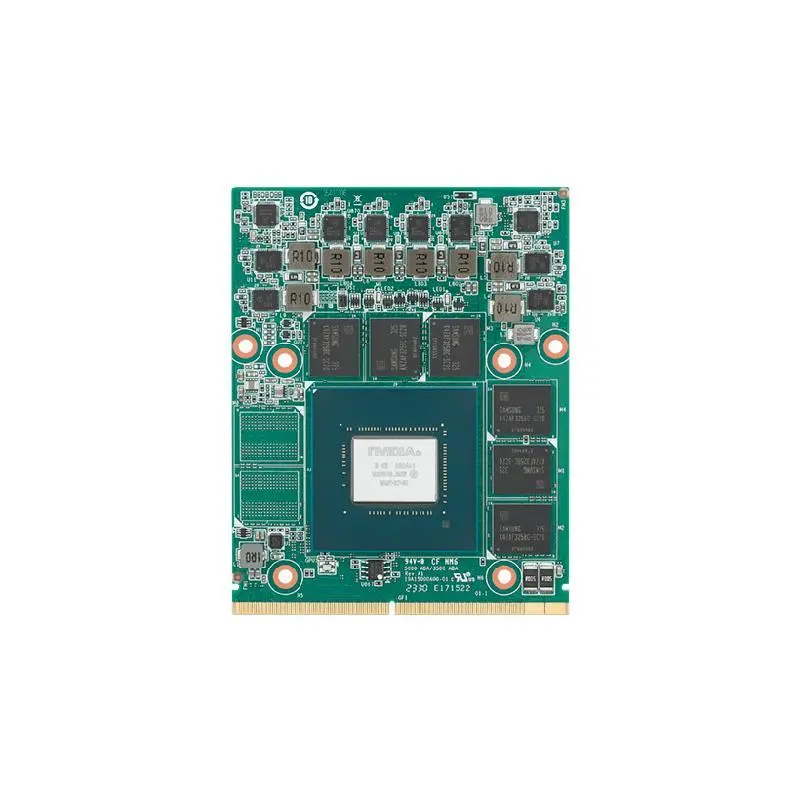

Advantech SKY-MXM-3500A

NVIDIA® Quadro® 3500 Ada with MXM 3.1 TYPE B+ form factor (82 x 105 mm)

Up to 5120 CUDA cores , 40 RT cores and 160 Tensor cores, 23.04 TFLOPS

GDDR6 12GB memory, 192-bit, bandwidth 432 GB/s

Discrete or MS-Hybrid mode supported

Memory Error Correction Code (ECC) supported

Encode Sessions Unlimite

GPUDirect® Remote Direct Memory Access (RDMA) and Video supported

Up to 4 x DisplayPort 1.4a outputs

Long life cycle, supports 5 years availability

		SKY-MXM-3500A-2SDA
NVIDIA GPU Cores	GPU Architecture	Ada Lovelace
NVIDIA GPU Cores	Memory Size	12 GB GDDR6 (with ECC)
NVIDIA GPU Cores	CUDA Cores	5120
NVIDIA GPU Cores	Tensor Cores	160
NVIDIA GPU Cores	RT Cores	40
NVIDIA GPU Cores	Interface	PCIe 4.0 x16
NVIDIA GPU Cores	Power Consumption	115 W
GPU Computing	Max FP32 (TFLOPS)	23.04
Display & Graphics	Display Output	4 x DP 1.4a
Display & Graphics	NVENC	2
Display & Graphics	NVDEC	1
Environment	Operating Temperature	0~55°C (32~131°F) (dependent on CPU and cooler solution)
Environment	Storage Temperature	-40~85°C (-40~185°F)
Mechanical	Form Factor	MXM Type B+
Mechanical	Dimension (L x H)	82 x 105 mm
