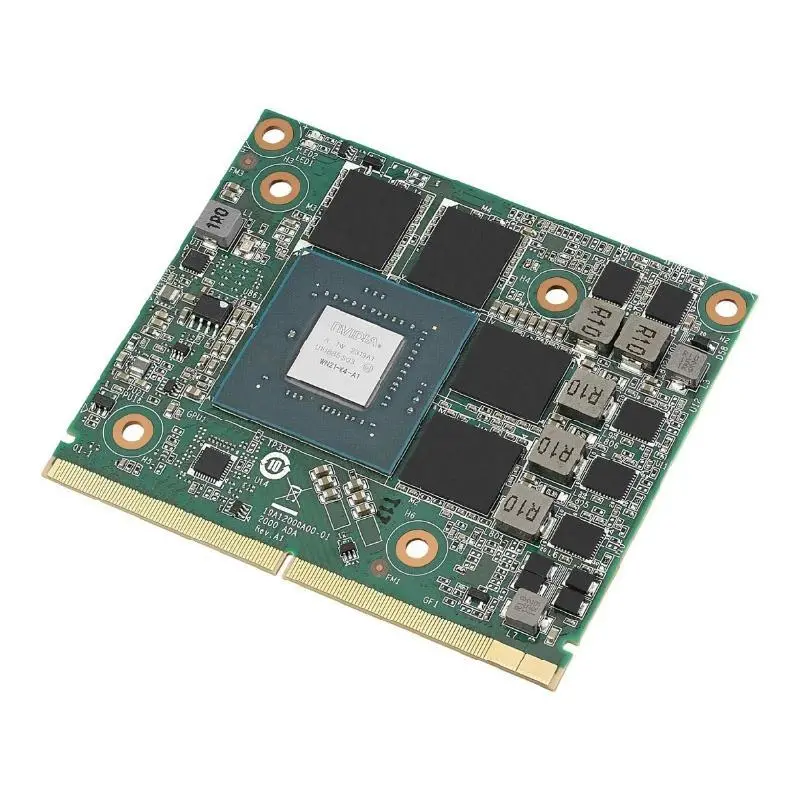

Advantech SKY-MXM-2000A MXM 3.1 Type A NVIDIA® Quadro®Embedded 2000A with DP 1.4a

NVIDIA Ada-Lovelace architecture Quadro® 2000A with MXM 3.1 TYPE A form factor (82 x 70 mm)

Up to 3072 CUDA cores, 24 RT cores and 96 Tensor cores, 12.99 TFLOPS

GDDR6 8GB memory, 128-bit, bandwidth 256 GB/s

Discrete or MS-Hybrid mode supported

Memory Error Correction Code (ECC) supported

Encode Sessions Unlimited

GPUDirect® Remote Direct Memory Access (RDMA) and Video supported

Up to 3 x DisplayPort 1.4a outputs

Long life cycle, supports 5 years availability

		SKY-MXM-2000A-8SDA	SKY-MXM-2000A-8SHA
NVIDIA GPU Cores	GPU Architecture	Ada Lovelace	Ada Lovelace
NVIDIA GPU Cores	Memory Size	8 GB GDDR6 (with ECC)	8 GB GDDR6 (with ECC)
NVIDIA GPU Cores	CUDA Cores	3072	3072
NVIDIA GPU Cores	Tensor Cores	96	96
NVIDIA GPU Cores	RT Cores	24	24
NVIDIA GPU Cores	Interface	PCIe 4.0 x8	PCIe 4.0 x8
NVIDIA GPU Cores	Power Consumption	60 W	60 W
GPU Computing	Max FP32 (TFLOPS)	12.8	12.8
Display & Graphics	Display Output	3 x DP 1.4a	-
Display & Graphics	NVENC	1	1
Display & Graphics	NVDEC	1	1
Environment	Operating Temperature	0~55°C (32~131°F) (dependent on CPU and cooler solution)	0~55°C (32~131°F) (dependent on CPU and cooler solution)
Environment	Storage Temperature	-40~85°C (-40~185°F)	-40~85°C (-40~185°F)
Mechanical	Form Factor	MXM Type A	MXM Type A
Mechanical	Dimension (L x H)	82 x 70 mm	82 x 70 mm
