SKY-MXM-A4500-6SDA | ||
NVIDIA GPU Cores | GPU Architecture | Ampere |
NVIDIA GPU Cores | Memory Size | 16 GB GDDR6 (with ECC) |
NVIDIA GPU Cores | CUDA Cores | 5888 |
NVIDIA GPU Cores | Tensor Cores | 184 |
NVIDIA GPU Cores | RT Cores | 46 |
NVIDIA GPU Cores | Interface | PCIe 3.0 x16 |
NVIDIA GPU Cores | Power Consumption | 115 W |
GPU Computing | Max FP32 (TFLOPS) | 17.66 |
Display & Graphics | Display Output | 4 x DP 1.4a |
Display & Graphics | NVENC | 1 |
Display & Graphics | NVDEC | 2 |
Environment | Operating Temperature | 0~55°C (32~131°F) (dependent on CPU and cooler solution) |
Environment | Storage Temperature | -40~85°C (-40~185°F) |
Mechanical | Form Factor | MXM Type B+ |
Mechanical | Dimension (L x H) | 82 x 105 mm |

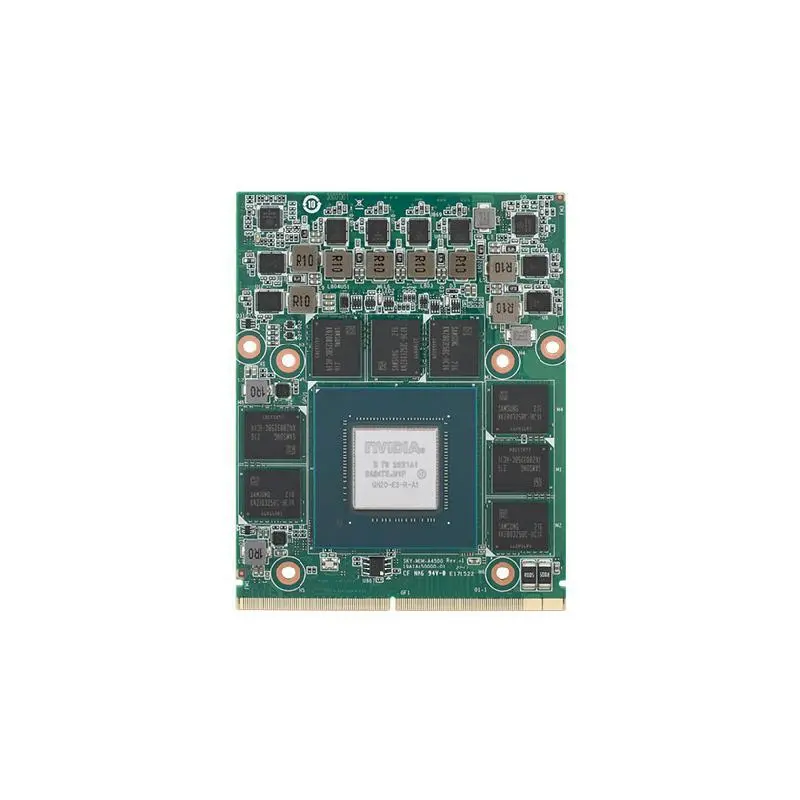

Advantech SKY-MXM-A4500 MXM 3.1 Type B+ NVIDIA® Quadro® Embedded A4500 with DP 1.4a
