| SKY-MXM-A2000-8SDA | SKY-MXM-A2000-8SHA | ||
| NVIDIA GPU Cores | GPU Architecture | Ampere | Ampere |
| NVIDIA GPU Cores | Memory Size | 8 GB GDDR6 (with ECC) | 8 GB GDDR6 (with ECC) |
| NVIDIA GPU Cores | CUDA Cores | 2560 | 2560 |
| NVIDIA GPU Cores | Tensor Cores | 80 | 80 |
| NVIDIA GPU Cores | RT Cores | 20 | 20 |
| NVIDIA GPU Cores | Interface | PCIe 3.0 x8 | PCIe 3.0 x8 |
| NVIDIA GPU Cores | Power Consumption | 60 W | 60 W |
| GPU Computing | Max FP32 (TFLOPS) | 8.64 | 8.64 |
| Display & Graphics | Display Output | 4 x DP 1.4a | - |
| Display & Graphics | NVENC | 1 | 1 |
| Display & Graphics | NVDEC | 2 | 2 |
| Environment | Operating Temperature | 0~55°C (32~131°F) (dependent on CPU and cooler solution) | 0~55°C (32~131°F) (dependent on CPU and cooler solution) |
| Environment | Storage Temperature | -40~85°C (-40~185°F) | -40~85°C (-40~185°F) |
| Mechanical | Form Factor | MXM Type A | MXM Type A |
| Mechanical | Dimension (L x H) | 82 x 70 mm | 82 x 70 mm |

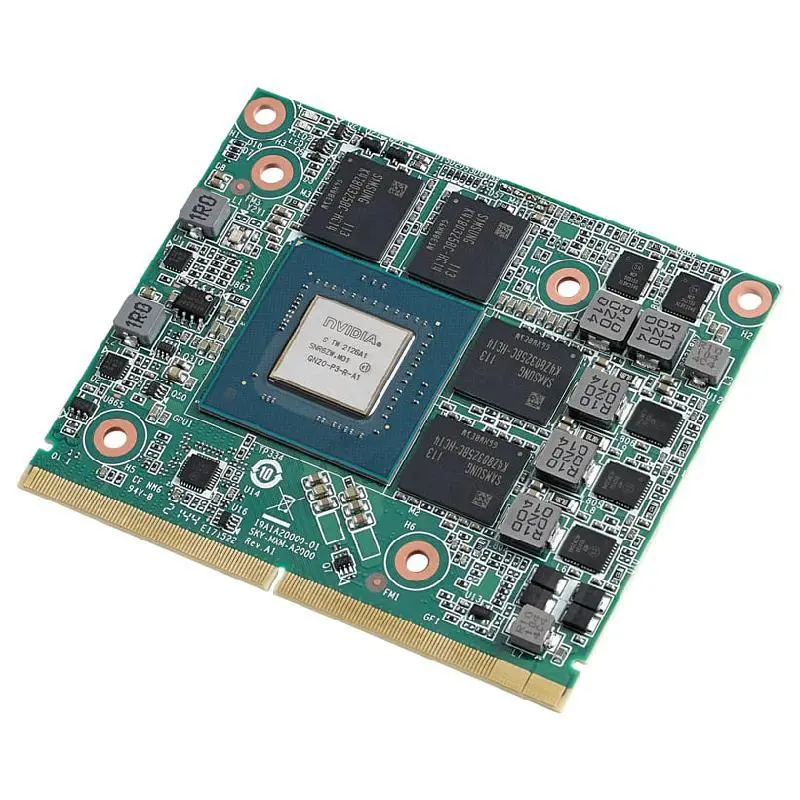

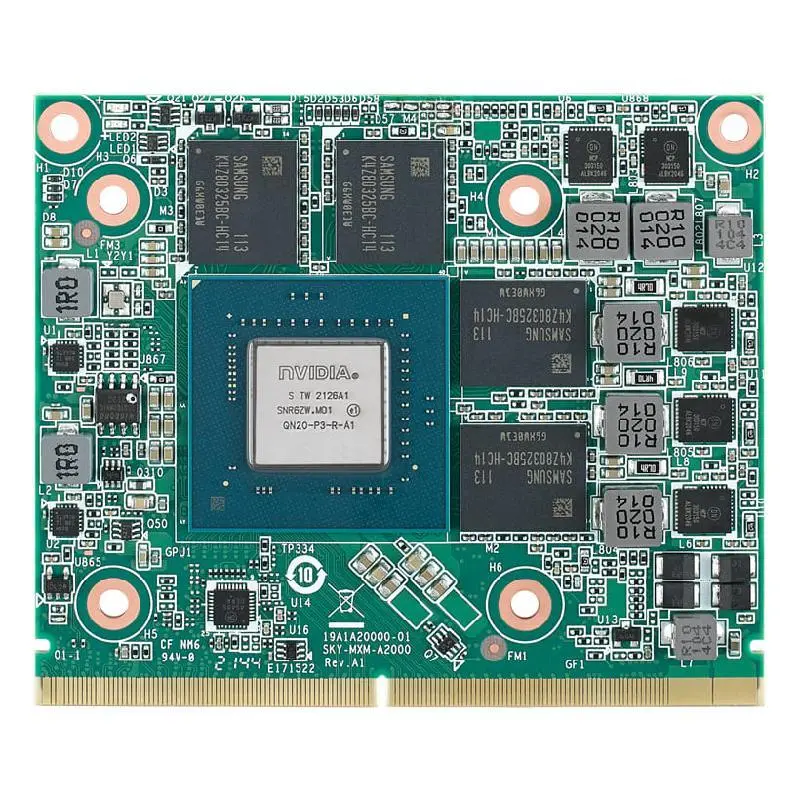

Advantech SKY-MXM-A2000 MXM 3.1 Type A NVIDIA® RTX™ A2000 Embedded with DP 1.4a
