| SKY-MXM-A500-4SHA | ||
| NVIDIA GPU Cores | GPU Architecture | Ampere |
| NVIDIA GPU Cores | Memory Size | 4 GB GDDR6 |
| NVIDIA GPU Cores | CUDA Cores | 2048 |
| NVIDIA GPU Cores | Tensor Cores | 64 |
| NVIDIA GPU Cores | RT Cores | 16 |
| NVIDIA GPU Cores | Interface | PCIe 3.0 x4 |
| NVIDIA GPU Cores | Power Consumption | 35 W |
| GPU Computing | Max FP32 (TFLOPS) | 6.54 |
| Display & Graphics | Display Output | - |
| Display & Graphics | NVENC | 1 |
| Display & Graphics | NVDEC | 1 |
| Environment | Operating Temperature | 0~55°C (32~131°F) (dependent on CPU and cooler solution) |
| Environment | Storage Temperature | -40~85°C (-40~185°F) |
| Mechanical | Form Factor | MXM Type A |
| Mechanical | Dimension (L x H) | 82 x 70 mm |

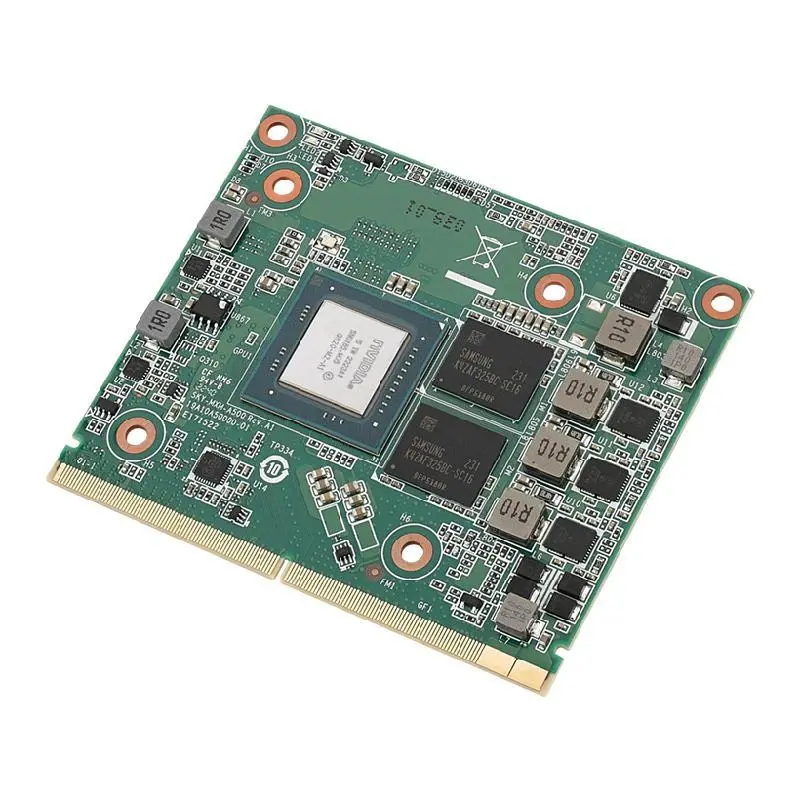

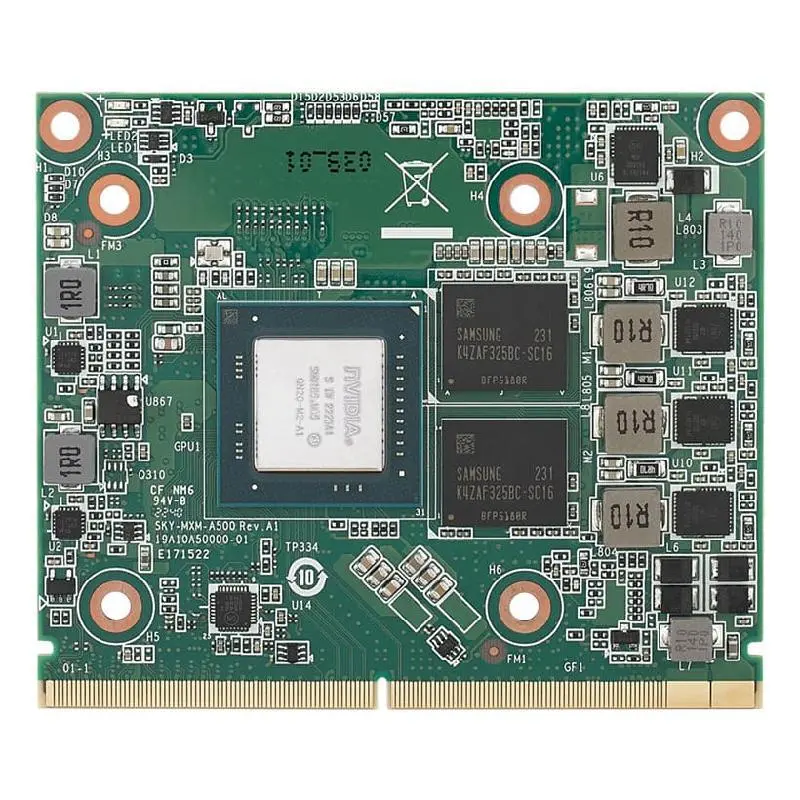

Advantech SKY-MXM-A500 MXM 3.1 Type A NVIDIA® RTX™ A500 Embedded
