| SKY-MXM-T1000-4HDB | SKY-MXM-T1000-4HHB | ||
| NVIDIA GPU Cores | GPU Architecture | Turing | Turing |
| NVIDIA GPU Cores | Memory Size | 4 GB GDDR6 | 4 GB GDDR6 |
| NVIDIA GPU Cores | CUDA Cores | 896 | 896 |
| NVIDIA GPU Cores | Tensor Cores | - | - |
| NVIDIA GPU Cores | RT Cores | - | - |
| NVIDIA GPU Cores | Interface | PCIe 3.0 x16 | PCIe 3.0 x16 |
| NVIDIA GPU Cores | Power Consumption | 50 W | 50 W |
| GPU Computing | Max FP32 (TFLOPS) | 2.7 | 2.7 |
| Display & Graphics | Display Output | 4 x DP 1.4a | - |
| Display & Graphics | NVENC | 1 | 1 |
| Display & Graphics | NVDEC | 3 | 3 |
| Environment | Operating Temperature | 0~55°C (32~131°F) (dependent on CPU and cooler solution) | 0~55°C (32~131°F) (dependent on CPU and cooler solution) |
| Environment | Storage Temperature | -40~85°C (-40~185°F) | -40~85°C (-40~185°F) |
| Mechanical | Form Factor | MXM Type A | MXM Type A |
| Mechanical | Dimension (L x H) | 82 x 70 mm | 82 x 70 mm |

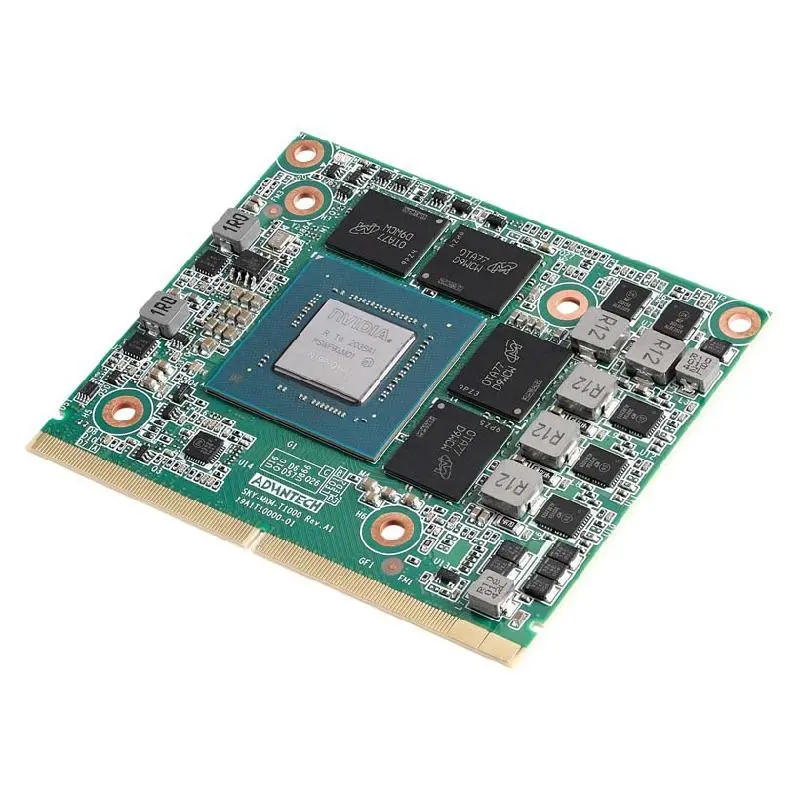

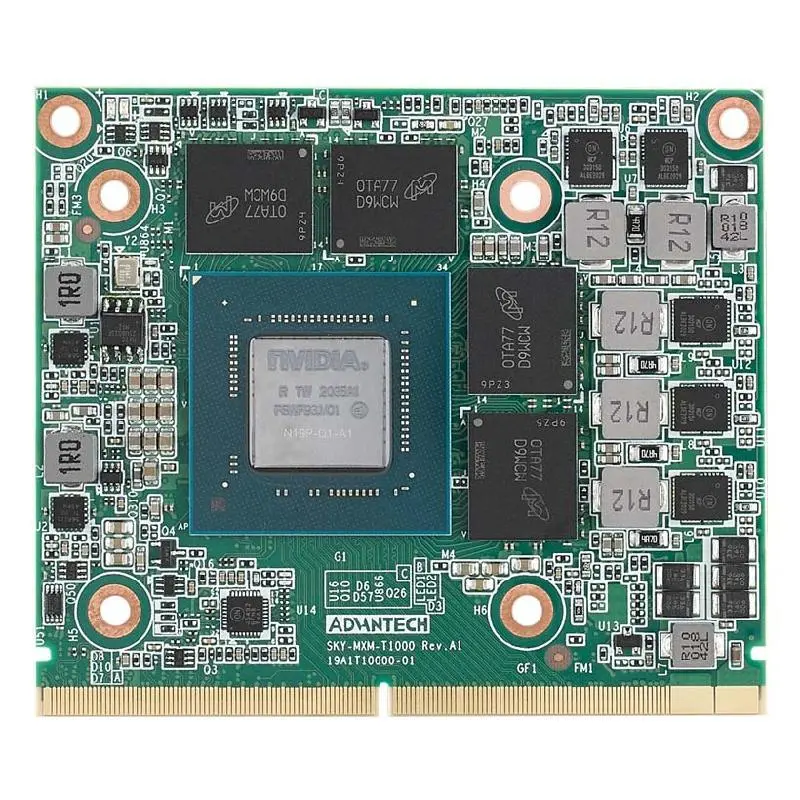

Advantech SKY-MXM-T1000 MXM 3.1 Type A NVIDIA®Quadro®Embedded T1000 with DP 1.4a
