| AIMB-785G2-00A3 | AIMB-785G2-00A3U | ||
| Processor System | CPU | Intel 6th Core i3/i5/i7 (LGA1151) | Intel® Core™ processors (7th/6th Gen) |
| Processor System | Frequency | Up to 3.7 GHz | Up to 3.9 GHz |
| Processor System | L3 Cache | 8 MB/6 MB/4 MB/3 MB/ | Up to 8 MB |
| Processor System | Core Number | Up to 4 | Up to 4 |
| Processor System | CPU TDP | Up to 65 W | Up to 65 W |
| Processor System | Socket | 1 x LGA1151 | 1 x LGA1151 |
| Processor System | Chipset | Intel Q170 | Intel Q170 |
| Processor System | BIOS | AMI SPI 128 Mbit | AMI SPI 128 Mbit |
| Expansion | PCI | 3 | 3 |
| Expansion | PCIe x4 | 3 | 3 |
| Expansion | PCIe x16 | 1 | 1 |
| Memory | Technology | Dual Channel DDR4 1866/2133 MHz | Dual Channel DDR4 1866/2133 MHz |
| Memory | Max. Capacity | 64 GB | 64 GB |
| Memory | Socket | 4 x 288-pin DIMM | 4 x 288-pin DIMM |
| Graphics | Controller | Intel® HD Graphics | Intel® HD Graphics |
| Display | Graphic Memory | Share system memory up to 1 GB with 2 GB and above memory installed | Share system memory up to 1 GB with 2 GB and above memory installed |
| Ethernet | Interface | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Ethernet | Controller | LAN1: Intel® I219-LM, LAN2: Intel® I210-AT | LAN1: Intel® I219-LM, LAN2: Intel® I210-AT |
| Ethernet | Connector | 2 x RJ45 | 2 x RJ45 |
| Storage | RAID | 0/1/5/10 | 0/1/5/10 |

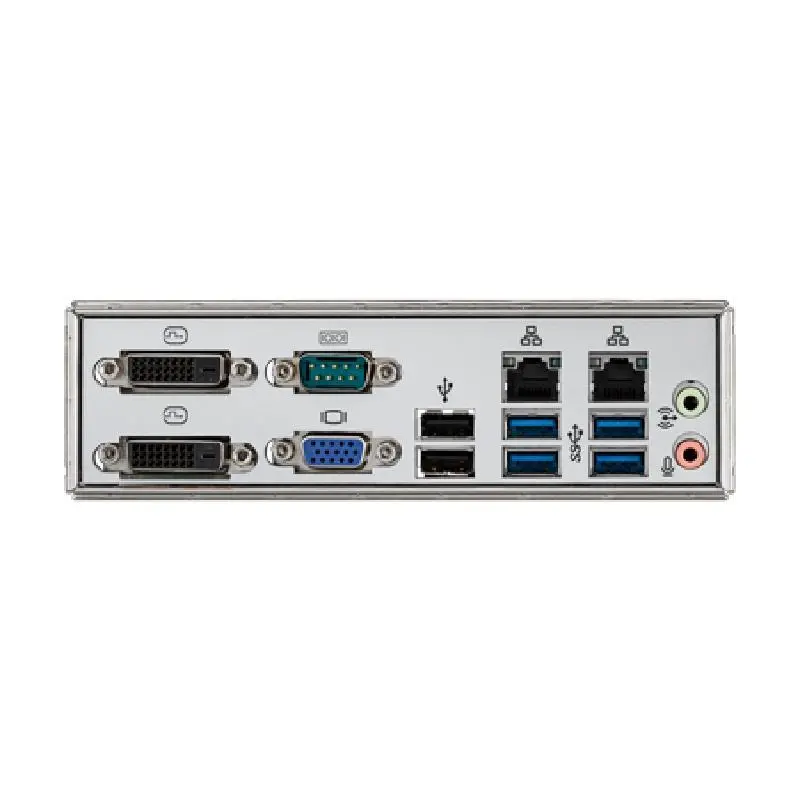

| Rear I/O Interface | VGA | 1 | 1 |
| Rear I/O Interface | DVI | 2 | 2 |
| Rear I/O Interface | Ethernet | 2 | 2 |
| Rear I/O Interface | USB3.0 | 4 | 4 |
| Rear I/O Interface | USB2.0 | 2 | 2 |
| Rear I/O Interface | Audio | 2 (Mic-in, Line-out) | 2 (Mic-in, Line-out) |
| Rear I/O Interface | COM | 1 (1 x RS232) | 1 (1 x RS232) |
| Rear I/O Interface | Display | 3 | 3 |
| I/O | USB3.0 | 2 | 2 |
| I/O | USB2.0 | 5 | 5 |
| I/O | COM Port | 5 (4 x RS232, 1 x RS232/422/485) | 5 (4 x RS232, 1 x RS232/422/485) |
| I/O | SATA | 6 (4 from Intel® Q170, 2 from Marvell 9186A2) | 6 (4 from Intel® Q170, 2 from Marvell 9186A2) |
| Expansion Interface | LPC | 1 | 1 |
| I/O | LPT | 0 | 0 |
| I/O | GPIO | 8-bit | 8-bit |
| I/O | PS/2 Keyboard/Mouse | 1 | 1 |
| I/O | SPDIF | 1 | 1 |
| I/O | System Fan | 2 | 2 |
| WatchDog Timer | Output | System Reset | System Reset |
| WatchDog Timer | Interval | Programmable 1~255 sec | Programmable 1~255 sec |
| Mechanical | Dimension (L x H) | 304.8 x 244 mm (12" x 9.6") | 304.8 x 244 mm (12" x 9.6") |
| Certification | EMC | CE/FCC | CE/FCC |
| Display | Display Interface | VGA: Up to 1920 x 1200DVI-D: Up to 1920 x 1200 | VGA: Up to 1920 x 1200DVI-D: Up to 1920 x 1200 |
| Display | Multiple Display | Triple | Triple |
| Form Factor | Form Factor | ATX | ATX |

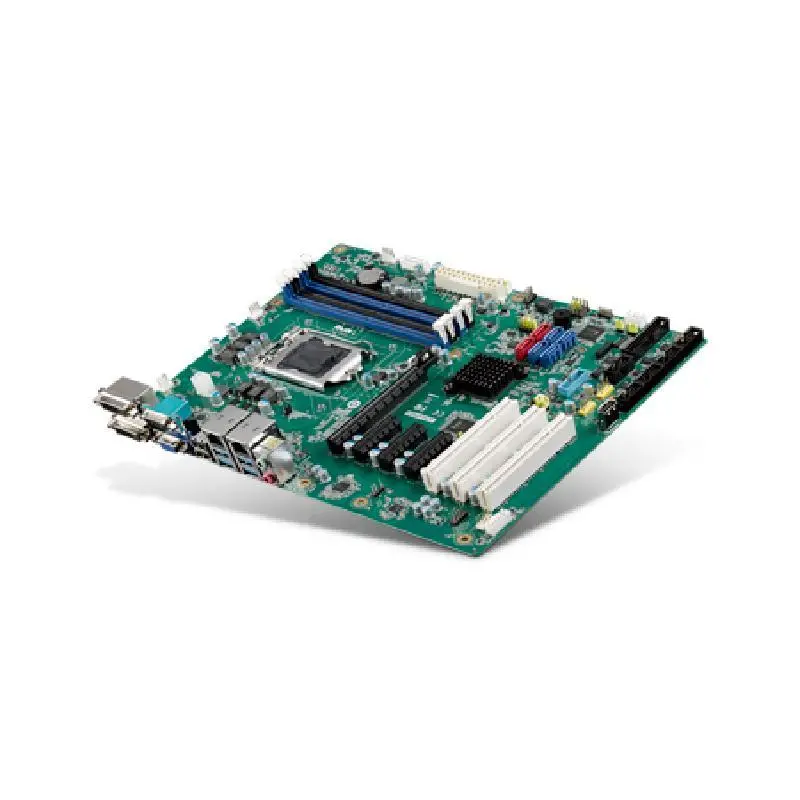

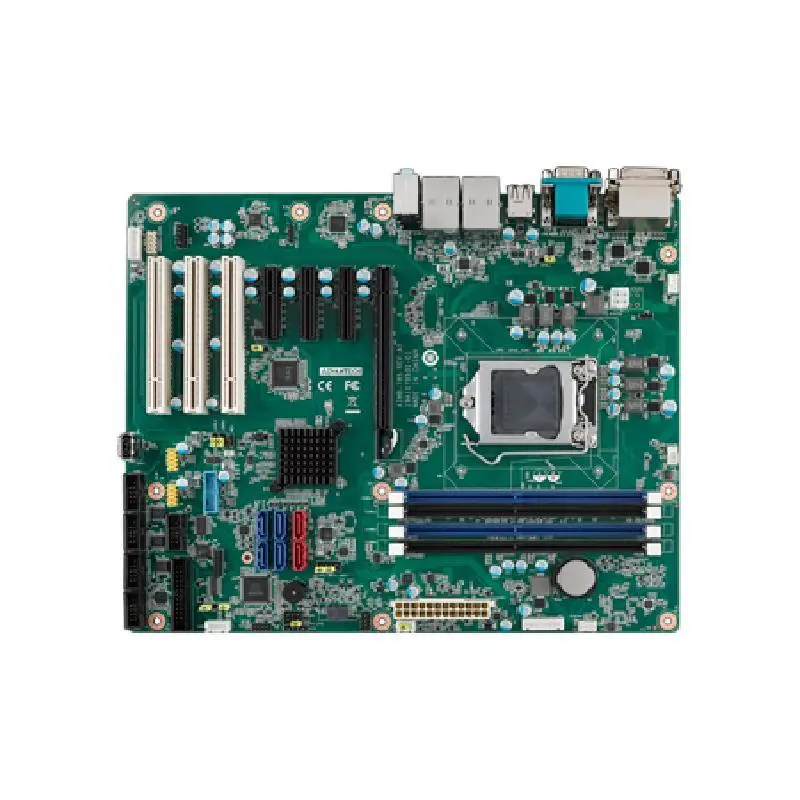

Advantech AIMB-785 LGA1151 6th/7th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® ATX with Triple Display, DDR4, SATA III
