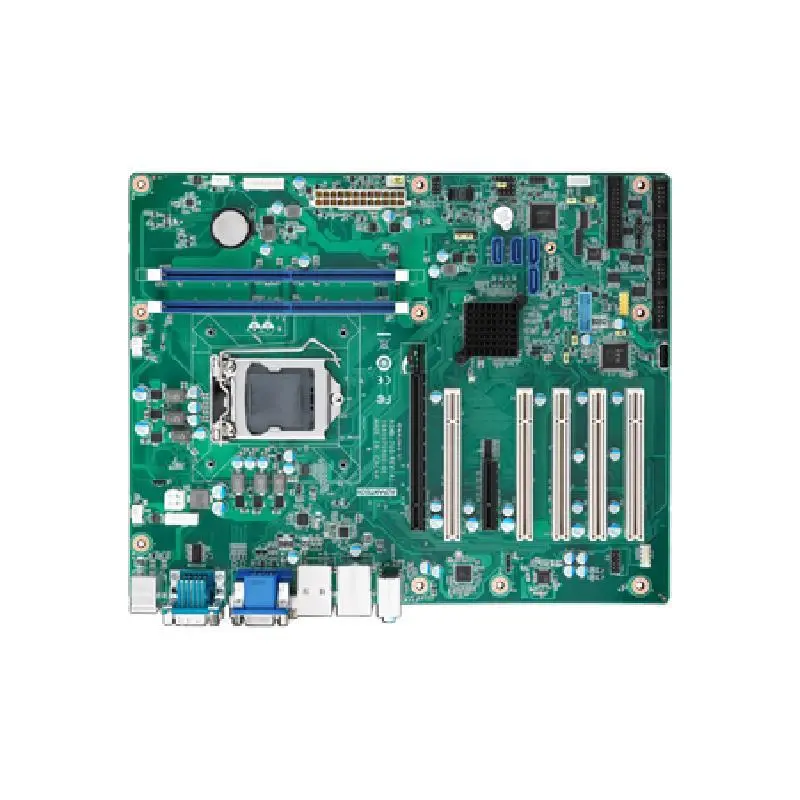

Advantech AIMB-705 LGA1151 6th/7th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® ATX with DVI/VGA, DDR4, SATA III, USB 3.0 & 6 COMs

Intel® 6th/7th generation Core™ i7/i5/i3/Pentium®/Celeron® processor

Dual channel (Non-ECC) DDR4 1866/2133 up to 32GB

Supports VGA and DVI display

Supports SATA3.0, USB3.0, dual GbEs

Supports 5 RS-232 and 1 RS-232/422/485 serial ports

1 PCIe x16 (Gen3) and 1 PCIe x4 (Gen2), and 5 PCI expansion slots

Note: Only Intel 6th generation processor can support Windows 7.

Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
